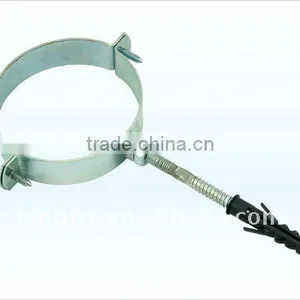

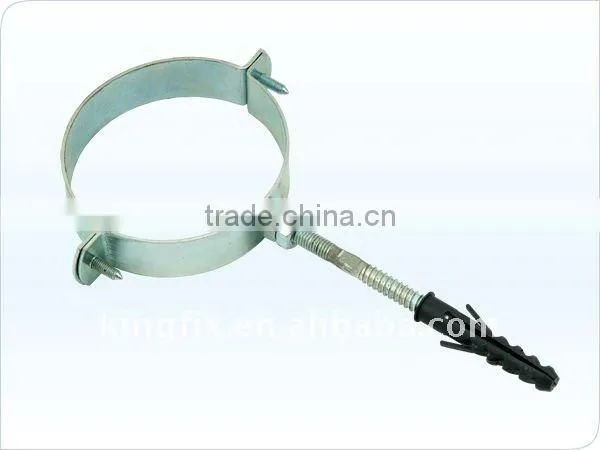

Help CenterSet of M8 Pipe Clamp Without Rubber
Negotiable
MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
kingfix
Usage:
Pipe Clamp
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PIPE CLAMP WITH EPDM RUBBERUS$ 0.08 - 0.6MOQ: 3000 Pieces -
Pipe Clamp With Rubber and NutNegotiableMOQ: 1000 Pieces
-
Heavy Duty Pipe Clamp With Rubber M8 NutNegotiableMOQ: 3000 Pieces
-
Heavy Pipe Clamp With Rubber and M8 NutNegotiableMOQ: 1000 Pieces
-
Clamp With Rubber and Hex NutsNegotiableMOQ: 3000 Pieces
Place of Origin
Zhejiang, China
Brand Name
kingfix
Usage
Pipe Clamp
Material
Metal
Structure
Suspension Clamp
Standard or Nonstandard
Nonstandard
Specifications
set of M8 pipe clamp without rubber1.material:steel and EPDM rubber
2.surface:zinc plated, galvanized
3:zinc plated, galvani
set of M8 pipe clamp without rubberWith Nut; Dobble Thread Screw;Nlyon Plug & Rubber

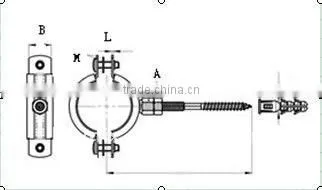

| CODE | SIZE | D | S*B | M | A | PLASTIC PLUG | HANGER BOLT |
| 13A18 | 3/8" | 15-19 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 |
| 13A22 | 1/2" | 20-25 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 |
| 13A28 | 3/4" | 26-30 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 |
| 13A35 | 1" | 32-36 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 |
| 13A40 | 1-1/4 | 38-43 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 |
| 13A48 | 1-1/2 | 47-51 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 |
| 13A60 | 2" | 60-64 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 |
| 13A75 | 2-1/2 | 75-80 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 |
| 13A90 | 3" | 87-92 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 |
| 13A100 | 3-1/2 | 99-105 | 1.5*20 | M6*20 | M8 | S10*50 | M8*80 |
| 13A115 | 4" | 113-118 | 2.5*25 | M6*20 | M8+M10 | S10*50(S12*60) | M8*100(M10*100) |
| 13A140 | 5" | 138-142 | 2.5*25 | M6*20 | M8+M10 | S10*50(S12*60) | M8*100(M10*100) |
| 13A160 | 6" | 159-166 | 2.5*25 | M6*20 | M8+M10 | S10*50(S12*60) | M8*100(M10*100) |
| 13A220 | 8" | 215-220 | 2.5*25 | M6*20 | M8+M10 | S10*50(S12*60) | M8*100(M10*100) |
Application:
Used for mounting of pipes to the walls ( vertical / horizontal ) , ceilings and floors
For Suspending Stationary Non-Insulated Copper Tubing Lines
Being fasteners for pipe lines such as heating, sanitary and waste water pipes;to walls, ceilings and floors.Side screws are protected against loss during assemble with the help of plastic washers
