Help CenterSoft-closing Clip on Cabinet Hinge
Related Products
Specifications
Cabinet hinge1)Material:Steel
2)Finish: Nickel Plated
3)Opening angle:105 degree
4)Modern style & exquisite quality
Description of the cabinet hinge :
| Product name | Soft-closing clip on cabinet hinge |
| NO | 04-19 C=15 |
| Material | Steel |
| Color | Nickel plated |
| Size | full cover, half cover, insert |
| Opening degree | 110° |
| Drilling distance on the door(K) | 3-7mm |
| Range of the door thickness | 14-24mm |
| Cup diameter | 35mm |
| Hole pitch | 45mm,48mm,52mm |
| Cup Depth | 12MM |
Features:
•To meet the requirement of different installations, hinges are classified in three models, full overlay, half overlay and insert.
•With springs of good anti-fatigue properties, the hinges will not deform in long-term use.
•All connecting fittings and screws have been hardened.
•Cabinet doors can be dissembled in 3 seconds by the clip-on device of the hinge, which facilites the organization and cleaning for housewives.
Maintenances of the cabinet hinge :
•Avoid collision.
•Keep dry. Remove the dust with soft cloth or dry cotton yarns and then wipe the surface with dry cloth when cleaning.
•No overloading .Keep the hinge away from any acid, alkaline or salty corrosion and contamination
Our Advantage :
1.Certification:UL, ISO 9001
2.Packing: each in a polybag,10pcs in a inner box,100pcs in a carton
3.Supply Ability :1,0000,000pcs/month
4.Delivery date :around 20-40 days based on your order quantity
5.MOQ: 1000pcs
6.Payment Term: 30%T/T AS DEPOSIT,70% T/T AGAINST THE COPY OF BILL OF LADING
7.Samples Offer :TEMAX will offer free samples in reasonable quantity for customer quality checking.
8.Samples arrangement: Samples will be prepared to sending in about 3 working days.
More cabinet hinge styles & items, please contact us now!

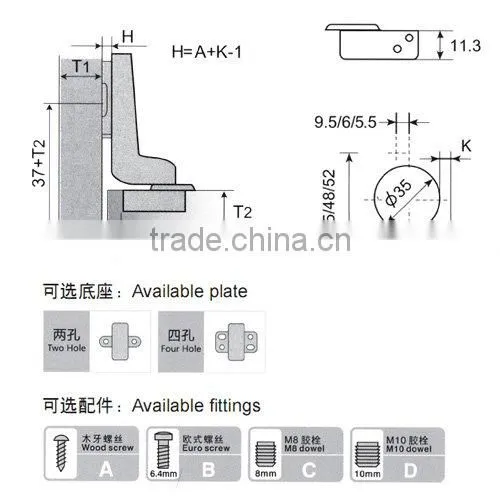

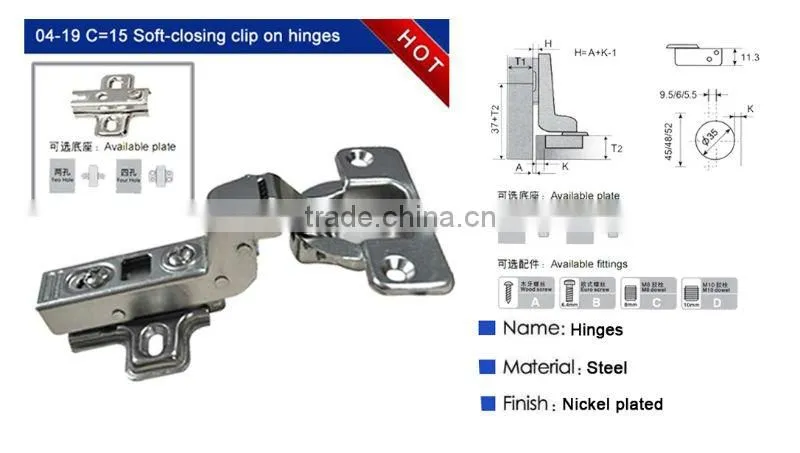

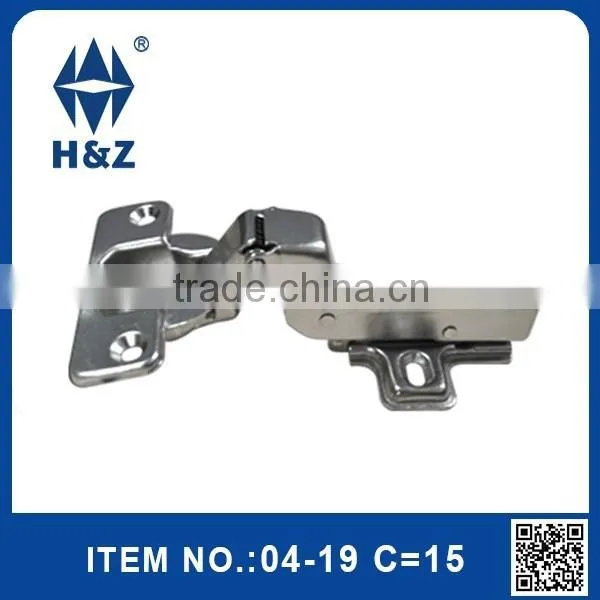

Photos of the cabinet hinge :
Other hinge
