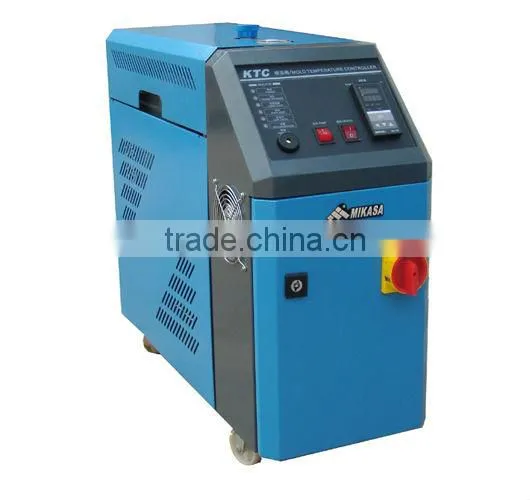

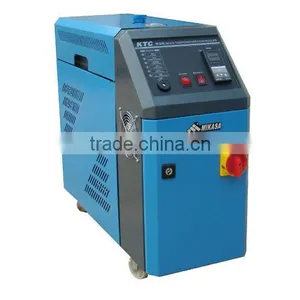

KTC-series Mould Temperature Controller
Features:
1. Microcomputer touch-type control, easy to operate.
2. PID controlled touch-type memory for automatic computation ,with temperature control at ±1°Cand 35% energy saved.
3. Imported pump with large pressure and flow rate ensures uniform temperature on mould.
4.Brand-new design ,elegant outlook, compact size and convenient maintenance.
5. Completely stainless steel made bladder and high-Pressure blast proof piping.
Safety protection system:
Main power over-current breaker
Motor reversal protection and indication
Low oil protection and indication
Overheating pump overload protection and indication
Abnormality alarm buzzer and indication
Phase failure protection
Specifications:
Model |
Max .temp. (°C) |
Heating capaciry (kw) |
Diatherman ousMedia |
Power (HP) |
Pressure (kg/cm) |
Flow (L/min) |
OilTank Volume(L) |
Pipe Dia |
Dimensions (cm) |
Weight (kg) |
KTC-1 |
120 |
6 |
Oil |
1 |
4.0 |
60 |
8 |
2*1/2” |
65*28*70 |
60 |
KTC-2 |
95 |
6 |
Water |
1 |
4.0 |
60 |
8 |
2*1/2” |
65*28*70 |
60 |
KTC-3 |
150 |
9 |
Oil |
1 |
4.0 |
60 |
8 |
2*1/2” |
65*28*70 |
60 |
KTC2C |
200 |
9 |
Oil |
1 |
5.0 |
60 |
8 |
2*1/2” |
65*28*70 |
70 |
KTC-1
MTC-series Mould Temperature Controller
Features:
1. All-digital P.I.D. sectional from temperature system control, temperature error within ±1°C.
2. Multiple safety device, automatically detect the abnormality when accident occurs, indicator light display abnormality state.
3. Safety main power switches cut-off the power when any emergency comes out.
4. Use AOTE pump, large pressure, high stability.
5.Direct cooling to better colling effect;automatically water makeup device,quick cooling to setting temperature,applicable to low temperature control.
6. Stainless inside, high pressure, exposion proof.
7.Elegant design,easy disassembly and mantain.
8.350°C oil temperature control is important for the Bottle Blowing,Delta Metal Die Casting industry in particular.
Specification of MTC Series:
