Machinery steel, air plasma cutter

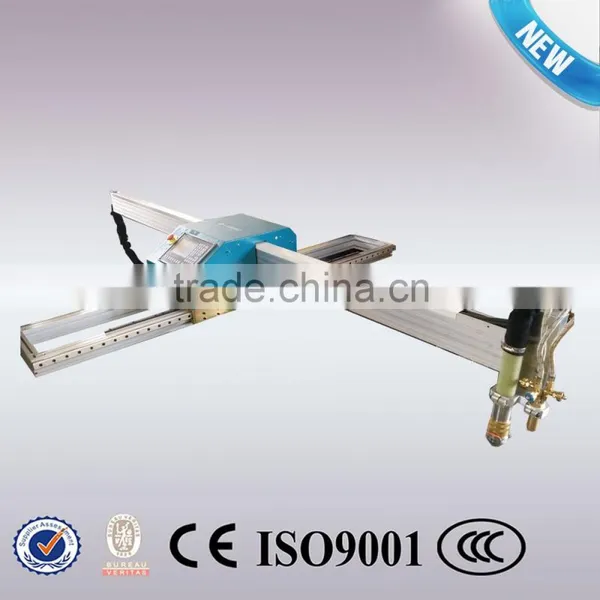

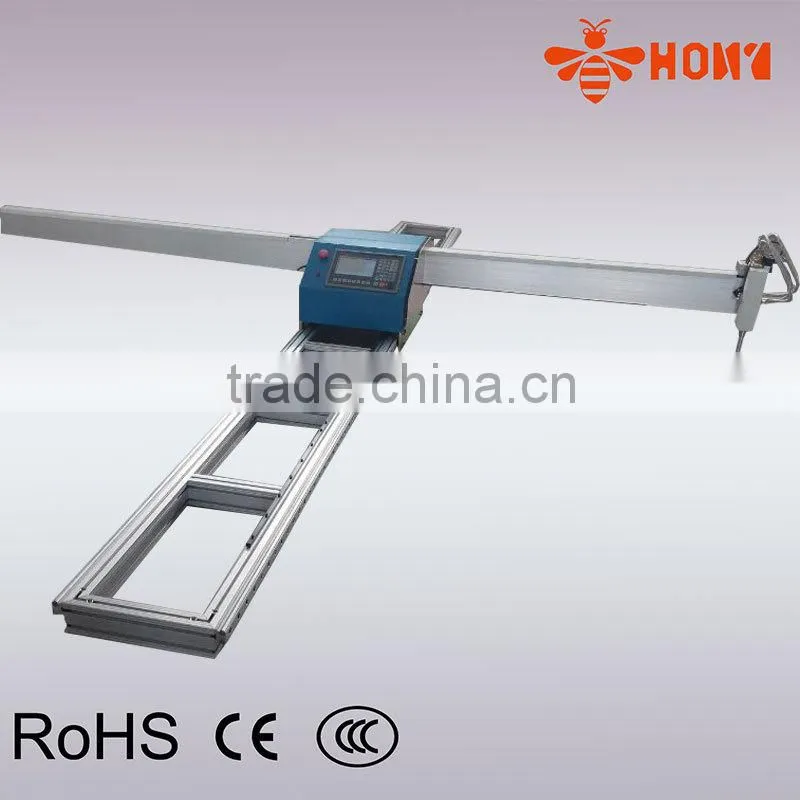

Honeybee Heavy Duty Portable CNC Cutting Machine(HB2015LCD)
After five years, Honeybee launches a new product again--Honeybee Heavy Duty Portable CNC Cutting Machine!
Except inheriting all the advantages of Honeybee first and second generations, HB2015LCD enjoys more functions and wider application range.
Main Advantages:
1.Higher Speed, More Smooth Running
Travel speed can arrive 6000mm/min and very stable.
2. Bigger Cutting Scope , Better Cutting Quality
Effective cutting range 2500mm*4000mm, much bigger than the competitors in same industry, even can compete with gantry type cutting machine!
3. More Functions
Standard configuration Oxy-fuel solenoid valve, Electric torch lifting, Arc voltage (or Capacitance)auto torch height control (THC).
4. More Powerful Drive Ability
Use the structure mixing servo motor drive and reducer
Type |
HB2015LCD-2500×4000 |
Input voltage |
110V/220V/380V/440V/600V |
Power supply frequency |
50/60Hz |
Rate power |
300W |
Transverse effective cutting |
2500mm |
Longitudinal effective cutting |
4000mm |
Cutting speed |
0-6000mm/min |
Cutting thickness (flame) |
0-160mm |
Cutting thickness (plasma) |
Depends on plasma power capacity |
Machine weight |
110KG |
Flame cutting gas |
Propane,acetylene,methane |
Pressure of the fuel gas |
≤0.1MPa |
Pressure of oxygen |
≤1MPa |
Packing size of the rail and beam |
4100×450×200mm |
Package size of host machine |
660×550×435mm |
Electric torch lifting |
standard configuration |
Torch height control |
standard configuration |
Solenoid valve control |
standard configuration |
Driving mode |
Mixing servo motor(with encoder feedback) |
