Specification:
I. Main tech data
Name |
Honeybee Eco-series Gantry CNC Cutting Machine |
Model |
HBST-3000*6000*1C+1A |
Structure |
Gantry, dual drive |
Track span & Guide rail |
3000×6000mm |
Effective cutting size |
2400×4500mm |
Transmission |
Longitudinal and Transversal main trolleys: rack & pinion Transversal slave trolley: steel belt |
Tube Transmission |
Transveral: Industrial plastric drag chain; Longitudinal: Hanging pulleys or earthing drag chain |
Cutting thickness |
Oxy-fuel 6-150 mm; Plasma: depends on plasma capacity; |
Torch No. |
2 |
Torch height control |
Motorized |
Servo system |
AC servo systems |
CNC system |
STARFIRE |
Speed regulation range |
0--12 m/min |
Cutting fuel |
Oxy-fuel: Oxygen +Acetylene/Propane Plasma: Depends on plasma power source require |
File transmission |
USB |
Accuracy |
Complete machine: accords with JB/T5102-1999 standard, Cutting dimension accuracy and quality: accords with JB/T10045.3-1999 standard, the national standard A and I level. |
II. Configuration
1. Mechanical Part
(1) Cross beam/Track: Adopt small square tube welding structure, light weight, rigid and Anti deformation
(2) Transversal guide rail: Adopt high hardness ball bearing steel, diameter is 20 mm.
(3) Longitudinal guide rail: Adopt 24KG high quality rail steel, under precision finishing.
(4) Torch up and down: Adopt ball screw, through type up and down structure.
(5) Transversal drive: Adopt rack & pinion, zero clearance transmission. Drive motor is Panasonic AC servo motor, model MHMD042G1U,
power N=400W, rotation speed n=3000r/min. Reducer model: VRSFS-10B-400-RV(60), i=10.
(6) Longitudinal drive: Adopt rack & pinion, zero clearance transmission. Drive motor is Panasonic AC servo motor, model HF-KN43J-S100,
power N=400W, rotation speed n=3000r/min. Reducer model: VRSFS-10B-400-RV(60), i=10.
2. Gas Tube Part
(1) Gas pipe: made in Korea.
(2) Magnetic valve:AC24V/DC24V
(3) Transversal wiring: Torch adopt industrial plastic drag chain
(4) Longitudinal wiring: Adopt earthing drag chain or hanging pulley
III. CNC system: STARFIRE
Features:
1. Practical oxy-fuel/plasma cutting tech. Under plasma cutting, it can finish corner speed control and THC control automatically.
2. Reliable design, plasma anti-interference, lightning protection, anti-surge.
3. Kerf compensation function, test if the compensation in the program reasonable and report for users choosing.
4. Break point recovery, auto power off point recovery, breakpoints auto memory.
5.Random section select or pierce point select function.
6. Adopt special small lines treatment function, widely applies in metal process, advertisement and iron craft industries.
7. Compatible with most program softwares such as IBE, FastCAM, etc.
8. English operaiton language, dynamic image display, amplify one to eight times, auto tracking for the moving point.
9. USB file transmission and software updating.
Tech Data
n Processor: Industrial level ARM7.
n Display: 10.4 inches colorful LCD;
n Input/output: System supplies 16 Photoelectric isolation input and 14 Photoelectric isolation output.
n Axis: four.
n Max speed:< 24m/min.
n pulse equivalency: Flexible adjusting, optional electronic gear numerator and numerator(1--65535).
n Memory: big memory size 32M--64M, not limit on cutting program.
8. Work temperature: 0°C-- +40°C, store temperature: -40°C-- +60°C
IV. Program software: FASTCAM Professional Edition
This is a fully automated system with a high level of automation and a focus on saving time, plate and piercing.
The ideal solution for high duty cycle machines where the user may get five different jobs with multiple parts for thicknesses.
• Automatic ‘EVERYTHING’: Tool pathing, Pierce, Sequencing, Nesting, Cutlist;
• Multi-job, Multi-part, Multi-plate mixed & Remant Nesting;
• Improved mateiral yield and smart cutting technologies incuding common cutting and 4 types of bridging (for various industries)..
• Dramatic reduction in pierce.
• A 50% reduction in programming time with automatic tool pathing.
• Bulk features for programming speed-file import, editing, export, etc.
V. Plasma Power Source: (Detail as attached / User Supply)
VI. Seller will provide:
1. Drawing of installation base;
2. Drawing of bar and bracket;
3. Drawing of semi-dry work table;
4. Drawing of air collecting bar.
VII. Buyer prepare:
1.Machine room place: 6×16 (square meters)
2. Others:
1. The concrete or H-beam steel installation base under guide rail press board; (seller supply reference drawing)
2.Suspending lines use I iron beam and frame (seller supply reference drawing)
3. Steel working table; (seller supply reference drawing)
4. High pressure gas flow busbar to fuel tank and air compressor;
5. Office computer for programming (WindowsXP, over AutoCAD2002 drawing software and U disk.)
6. Crane for machine installation, welding tools and consumption material, one welding technician, one ironsmith.
7. Commissioning and inspection material.
8. Plasma power source earthing cable.

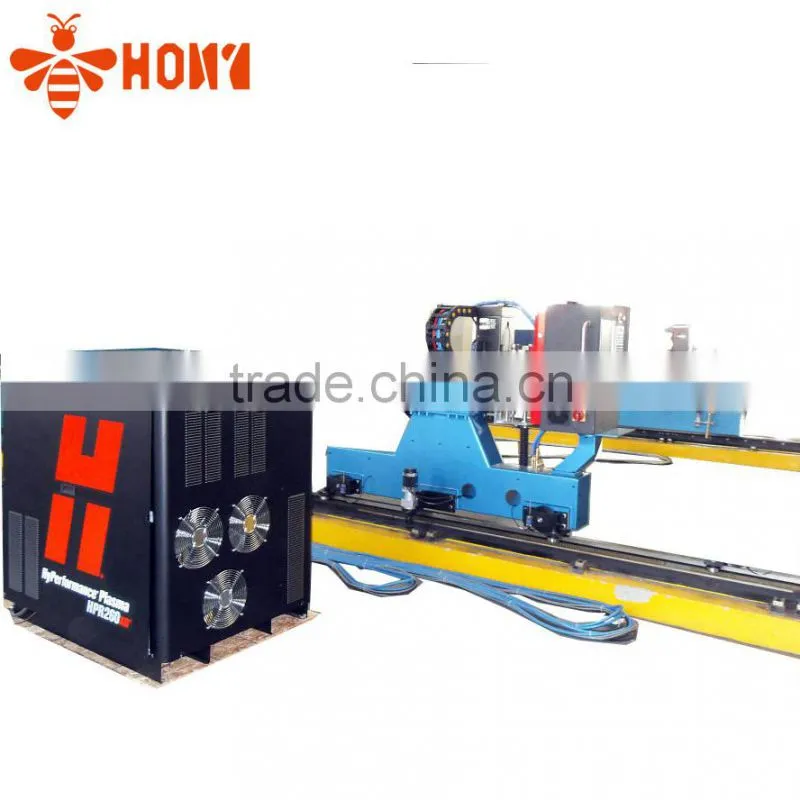

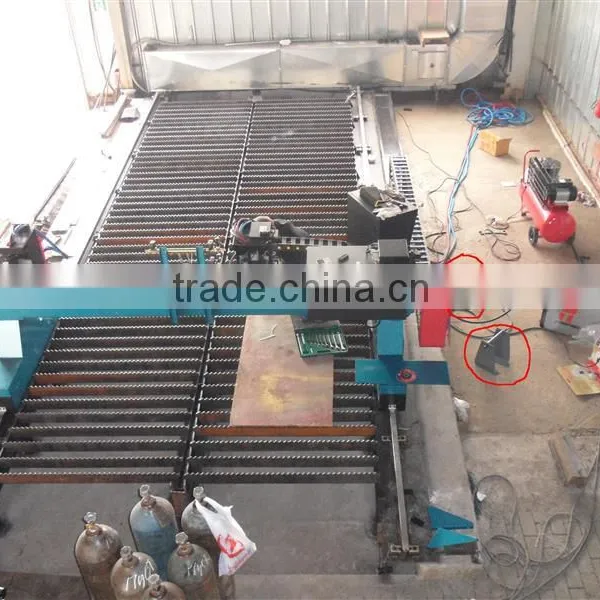

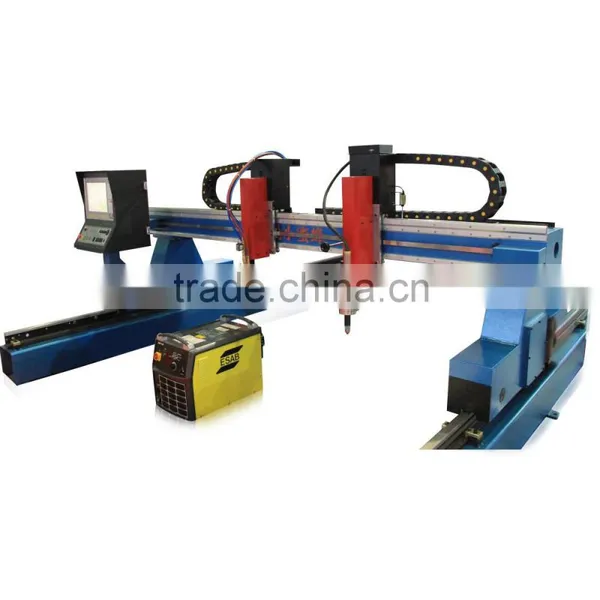

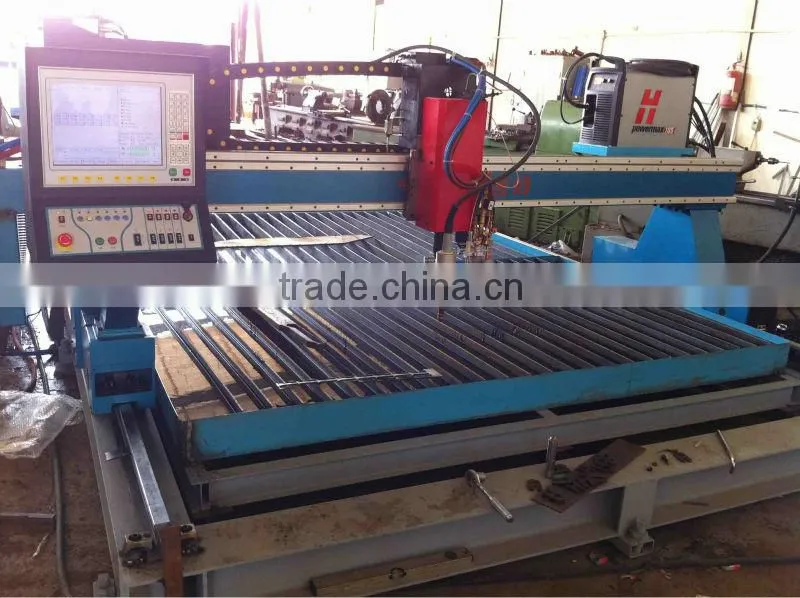

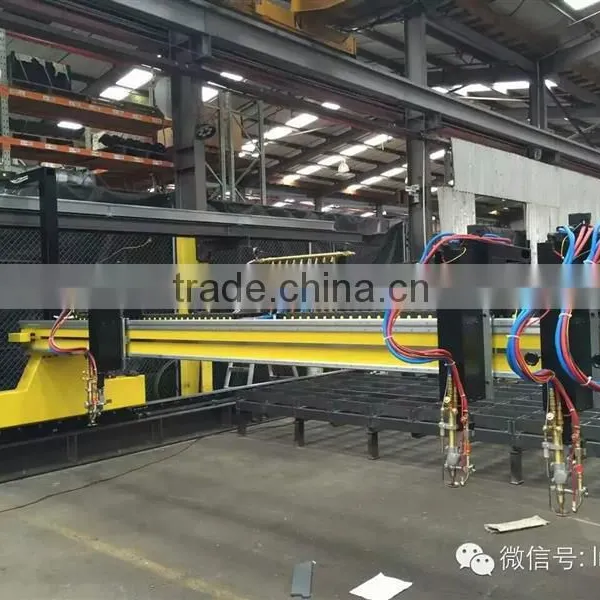

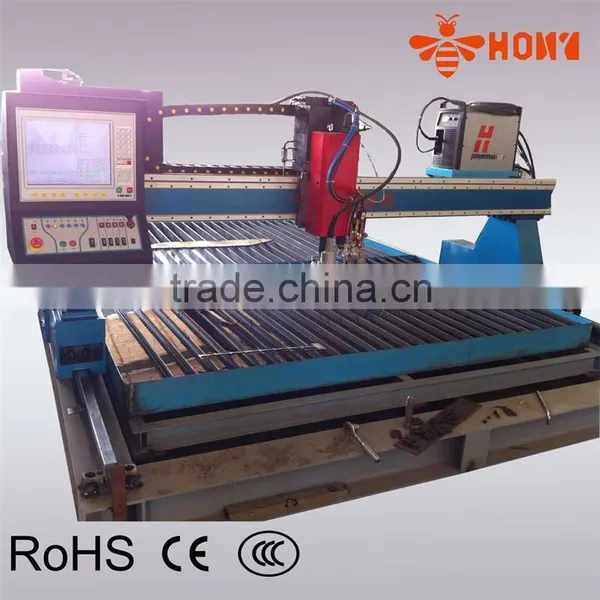

Overview of the NC machine:

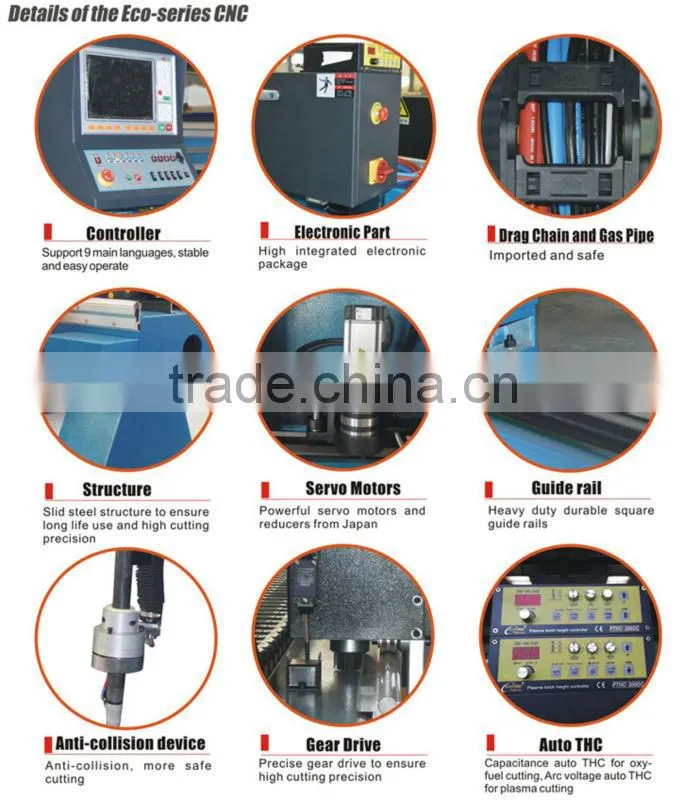

Detais of the NC machine:
(PS:This machine is both plasma&flame cutting)
Up to now ,our CNC cutting machines export to more than 50 countries ,and they are widely used in Aerospace ,
Agriculture,Art&Architechural, Automotive ,Energy,General Fabrication,Machine manufacturing,Offoad Equipment,
Processing pipe,Sheet metal ...
.What can we do for you?
Save time. You fell there is no enough time when you do you work in the day? Ok, we can’t reinvent the clock, but you might think we did that, because of the use of our HONEYBEE instead of your traditional mechanical cutting turtles. Our new customer always feedback the information that they did add extra labor and fine works, but do double output. Why they got double output, which is because HONEYBEE is fast and simple to movable and portable CNC, and it is very easy to be operation also.
2.Lower Investment
If you are a DIY fun or a Metal design lover, now you will have a new choice . Do you have a headache for the highest cost of the bigger gantry machine ? pls consider our HONEYBEE Portable CNC cutting Machine. we believe you must be much enjoy for the portable machine performance, after serial year development, Our CNC machine already become much more better than ever. now many factory focus on use the HONEYBEE Portable CNC cutting machine, for the cost will be much lower than the bigger one.
3.Simple Operation
Any common people can operate our HONEYBB, the system is friendly and simple, more important, there are many patterns already in our machine system, you can cut it directly without go to for the AutoCAD designning. anyway, if you are an AutoCAD master, you can also cut your arts through a USB Memory card easily.
4.Durable In Use
All the Honeybee machine is made by good quality parts, every every screw, now many Honeybee portable still working in the world after six years. it still works for every steel cutter. we only supply the good quality machine for every customer. every customer is our God.
5.Cost Savings
With Honeybee portable cutting system, you will can cut any scrap which can not be design any more after the bigger gantry machine to save your cost of job. For we also the CNC while the smaller one, anyway we do the same cutting tasks.
6.Engineered Solutions
Our engineer will help every customer to design the cutting figure ,if the customer need help ,we also can help dealer to have a train for machine use , CAD design , cutting solution , machine updating, portable NC machine repairment ,even the marketing support ,if you want .
