Specifications
1.CNC flame strip cutting machine2.High efficient, solid
3.Auto nest software,save material
According to customer demand computer programming cutting

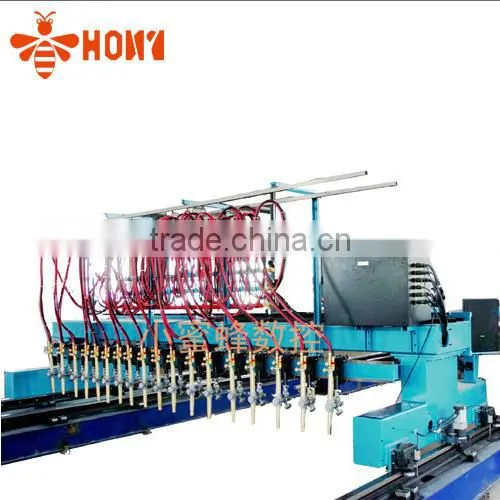

CNC flame strip cutting machine
Honeybee Gantry CNC Cutting Machine is a kind of automatic cutting equipment which is combined CNC system, precise mechanical drive and air cutting technology. It is widely applied to manufacture and cutting steel field, such as, the ship building industry, steel construction, construction machinery, mining machinery, pressure vessel and vehicle, petrochemical, etc.
The machine includes the cross beam, trolley, longitudinal rails, CNC system, moving system and electric system, etc. You can choose the different CNC system, Honeybee CNC system, Vup CNC system, USA Hypertherm CNC system. Support USA Hypertherm, Thermadyne and Kjellberg plasma power sources. For the driving mode, if the track span is less than 4m, the Gantry CNC Cutting Machine is single drive, if over 4m, it is double drives. In order to ensure the stability of machine under rapidly runnning, we use the heavy trolley for the Gantry Cutting Machine which equiped Hyperformance plasma power sources or its track span over 6 meters. With automatic correction function to keep the long-term working precision.
Standard Model List of Gantry CNC Cutting Machine
CNC flame strip cutting machine
Track Span(m) |
3.5 |
4 |
5 |
5.5 |
6 |
8 |
10 |
Rail length(m) |
12 |
12 |
14 |
14 |
14 |
16 |
16 |
Every the length of rail is 2m, Can be lengthened according to Users demand. | |||||||
Torch No. |
2 oxy-fuel torches as standard. Torch quantity can be customized. 1 plasma torch. Double plasma torches can be customized. |
||||||
Max cutting Area |
2.6*10 |
3.1*10 |
4.1*12 |
4.6*12 |
5.1*12 |
7.2*14 |
9.2*14 |
Cutting thickness |
6~200mm (Oxy-fuel); Depends on plasma power capacity (Plasma) |
||||||
Driving Mode |
Single driving |
Dual driving |
|||||
CNC system |
Vup CNC system |
||||||
Program software |
Australia FastCAM professional edition |
||||||
Speed Range |
0~10000mm/min |
||||||
Cutting gas |
Oxygen+acetylene/Propane; plasma cutting gas depends on plasma model |
||||||
Option |
Oxy-fuel: Auto-ignition, Auto THC, Powder marking, Linear Triple Torches; Plasma: Auto THC. |
||||||
CNC cutting machines are widely used in many areas:
Standard export wooden case: Strong, Moistureproof!

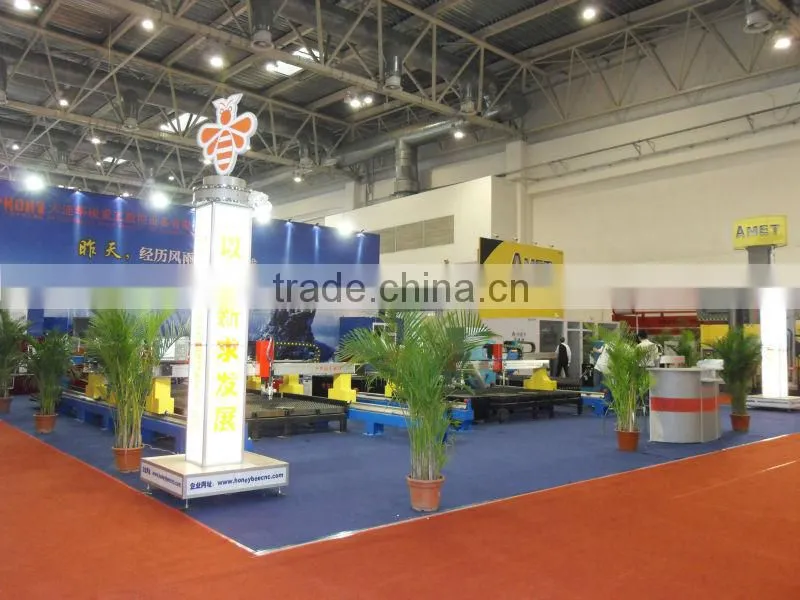

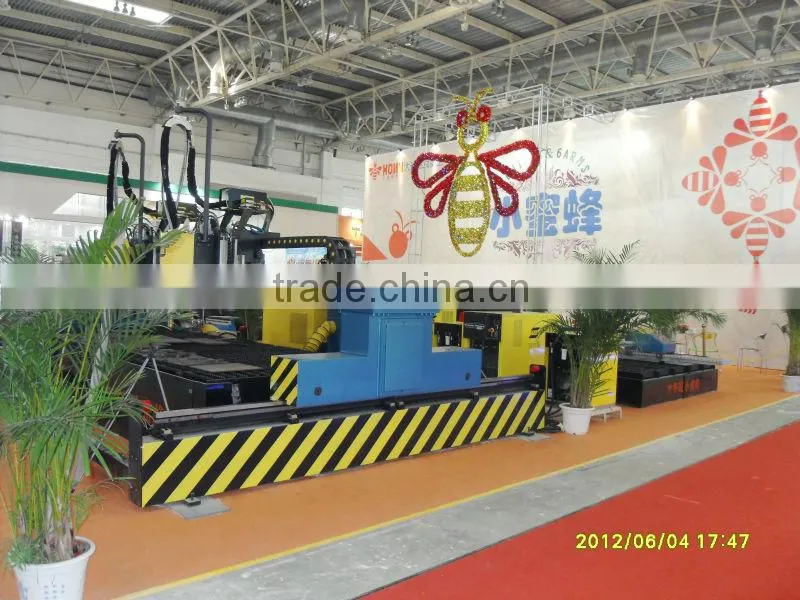

Exhibitions:
