OEM ISO 600KW Kangmingsi Generator Engine Kangmingsi Kta38 Manual

OEM ISO 600KW Kangmingsi Generator Engine Kangmingsi Kta38 Manual thumbnail-1
OEM ISO 600KW Kangmingsi Generator Engine Kangmingsi Kta38 Manual photo-1
US$ 70,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Sudong
Model Number:
SDC600
Contact Supplier Request Quote Chat Now
Taizhou Sudong Power Generating Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Sudong
Model Number SDC600
Output Type AC Three Phase
Speed 1500
Frequency 50
Rated Power 600
Rated Voltage 230/400/415/440
Rated Current 1080

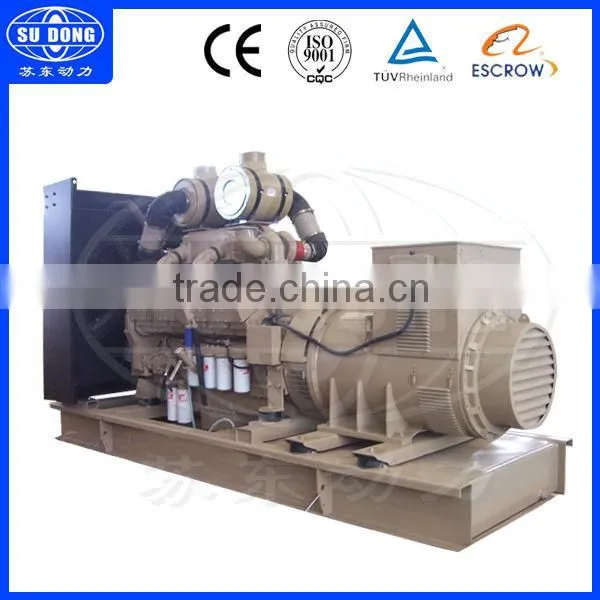

600KW 750KVA Kangmingsi generator Engine Kangmingsi  kta38 manual OEM ISO

This genset is powered by Kangmingsi diesel engine, coupled with Marathon alternator;

Stamford,  Siemens and Sanbo alternators are optional;

With Robust foot mounting, Reliable performance and Versatile configurations,

It’s your initial choice for inland power supply.



Any problem, please be free to contact me by skype: justinguo2006, Taizhou, China for instant communication!





Genset Feature



Our genset consists of Engine, Alternator, Foot-mounting, Control panel, Radiator, Air filter, Exhaust silencer, Elbow, Expansion joint, Battery, Shock absorber and Operation manual.





Model Number: SDC600



Prime Power: 600KW/750KVA



Standby Power: 660KW/825KVA



Rated Voltage: 230V/400V/415V/440V



Rated Current: 1080A



Output Type: AC 3 Phase



Speed: 1500rpm



Frequency: 50Hz



Dimension: 4350*1630*2450 (for reference)



Weight: 4200kgs  (for reference)



Accessories optional: Fuel tank, Canopy, Soundproof enclosure





Diesel Engine Feature





Brand: Kangmingsi

Manufacturer: Chongqing Kangmingsi Engine Co., Ltd.



Model: KTA38-GA



Rated Power: 664KW



Cyl. and arrangement: 12 inline



Bore/Stroke: 159/159mm



Aspiration: turbocharger, aftercooler



Configuration: water cooled closed, 4-strike, direct injection



Governor: Electronic or Manual



Starting Method: DC24V electric motor or air motor



Fuel Consumption: ≤148 L/H



Accessories optional: Governor of manual or servo, Battery charger, Engine coolant and oil heater, Fuel-water separator





Alternator Feature





Brand: Marathon



Manufacturer: Shanghai Marathon-Gexin Electric Co., LTD



Model: MP-600-4



Electric capacity: 600KW/750KVA



Configuration: Brushless, self-excited, AVR, 4 poles



Voltage: 230V/400V/415V/440V



Frequency: 50Hz



Power Factor: 0.8(lagging)



Connecting Type: 3 phase, 4 wires



Insulation: Class H



Protection: IP23



Accessories optional: PMG, Alternator space heater, Anti-condensation heater





Control panel Feature





1. Operation function:



Start/Stop manual                        Answer/Reset button



Emergent shutdown button         Remote plug



2. Display function:



Engine speed                               Lube pressure



Coolant temperature                    Lube temperature



Battery voltage                              Running time overall



3. Indication and protection:



Running status                               Lube pressure low alarm



Lube temperature high alarm      Coolant temperature high alarm



Battery voltage low alarm             Fuel leaking alarm



Starting failure alarm                     Over speed shutdown



Coolant temperature exceedingly high shutdown



Lube pressure extremely low shutdown



Common alarm



4. Accessory optional: Automatic control box, Paralleling function, Remote control function



 Kangmingsi KTA38 manual  Sudong genset 600kw 750kva

 Certificates of Sudong    CCS & ISO9001
