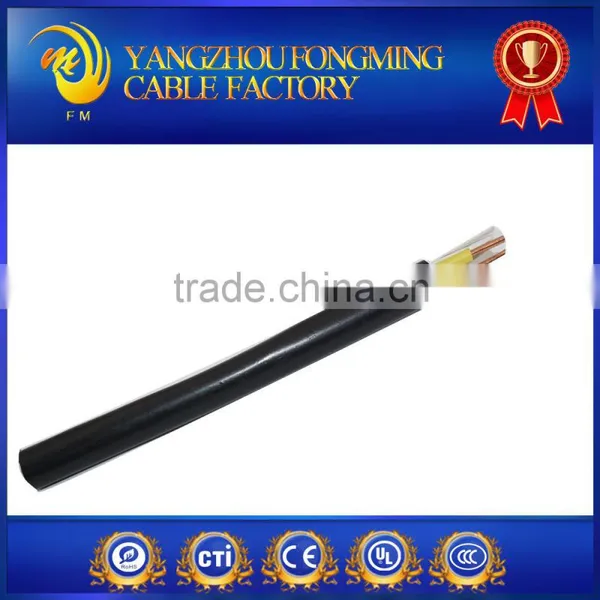

Help CenterTwo Cores Silicone Gas Cable
Related Products
-
200deg.C Textile Electrical CableUS$ 0.01 - 2.5MOQ: 10 Feet -
Silicone Cable 3 CoresUS$ 0.01 - 2.5MOQ: 10 Feet
-
Tinned Coper Silicone Rubber Lighting Wire FactoryUS$ 0.01 - 2.5MOQ: 10 Feet
-
XLPE Insulated With Drain Wire Sensore Xlpe CableUS$ 0.01 - 2.5MOQ: 10 Feet
-
XLPE Insulated With Drain Wire Xlpe Cable 11kvUS$ 0.01 - 2.5MOQ: 1000 Feet
Silicone High Voltage Wire For HID Cable
RATINGS/ MODEL NO.
200C-DC 15KV/18KV/20KV/22KV/25KV-YGC
CONSTRUCTION
Conductors
2*16/0.2 2*17/0.16 2*19/0.18 2*20/0.18 2*28/0.15 2*32/0.18
Stranded tinned plated copper
Insulating system
Silicone
Diameter
φ2.0mm, φ2.5mm, φ3.0mm, φ3.2mm, φ3.5mm, φ4.0mm
Outer covering
Silicone
Outer diameter
φ8.6mm, φ8.7mm, φ8.9mm, φ9.0mm, φ9.2mm
CHARACTERISTICS
Excellent and flexible insulation& Sheath.
Suitable for applications to -60C.
APPLICATION
For use in HID.
1 |
Flexible tinned copper or bare copper core |
||||
2 |
Silicone rubber |
||||
3 |
multi core+silicone rubber |
||||
4 |
multi core of type 3+ fiberglass braid with silicone impregnated |
||||
5 |
multi core of type 3+ stainless braid |
||||
6 |
multi core of type 3+stainless braid+silicone rubber |
||||
7 |
multi core of type 3+ stainless braid+ silicone rubber +fiberglass braid with silicone impregnated |
||||
8 |
multi core + stainless braid+ silicone |
||||
9 |
multi core + stainless braid + silicone rubber + fiberglass braid with silicone impregnated |
||||
Rated voltage |
300V/500V |
||||
Testing voltage |
2KV |
||||
Rated Temperature |
-60℃+180℃, Peaks to 230℃ |
||||
NO. |
Section mm2 |
Strand NO.× mm |
Outer Diameter mm |
Ref Weight kg/km |
|
VDE HO5S-K |
0.5 |
28×0.15 |
2.6 |
10.2 |
|
0.75 |
24×0.20 |
2.8 |
13 |
||
1.0 |
32×0.20 |
3.0 |
16.2 |
||
1.5 |
30×0.25 |
3.5 |
23 |
||
2.5 |
49×0.25 |
4.1 |
34.6 |
||
SIF |
0.2 |
12×0.15 |
1.8 |
4.5 |
|
0.3 |
17×0.15 |
2.0 |
6 |
||
0.4 |
23×0.15 |
2.3 |
7.5 |
||
0.5 |
28×0.20 |
2.4 |
9.1 |
||
0.75 |
24×0.20 |
2.6 |
12 |
||
1.0 |
32×0.20 |
2.8 |
13.8 |
||
1.25 |
40×0.25 |
2.9 |
17.4 |
||
1.5 |
30×0.25 |
3.1 |
19.8 |
||
2.0 |
41×0.25 |
3.3 |
26.2 |
||
2.5 |
49×0.25 |
3.6 |
30.2 |
||
4 |
56×0.30 |
4.5 |
46.5 |
||
6 |
84×0.30 |
5.2 |
70 |
||
10 |
84×0.40 |
6.8 |
117 |
||
16 |
126×0.40 |
8.0 |
169.5 |
||
25 |
196×0.40 |
9.4 |
257 |
||
| 1.Package length | 200meres 305meter 500meter As customers requirement |
| 2.Package method | Rolls spool or coil |
| 3:Ship port | Shanghai, Shenzhen Ningbo Lianyungang Port. |
1: SAMPLE FREE BEFORE PRODUCE
2: ANY QUESTION WILL BE SOLVE IN 24 HOURS
3:PACKING ACORDING CLIENTS REQUIRE.
4:FILISHED GOODS ON TIME.
5 SERVICE CUSTOMERS IS OUR PURPOSE.
America Australia Mexico South Africa
UA Colombia Ukraine Ecuador England Germany (ERGE)
French Italy(ZOPPAS) Denmark(TRIAX)
Russia India Iran Uruguay Ireland etc.
Trade & Market
|
Main Markets: |
Oceania |
Total Annual Sales Volume: |
US$50 Million - US$100 Million |
Export Percentage: |
61% - 70% |
Product/Service (We Sell): |
Multilayer Fiberglass Braiding Wire,Mica Wie,Silicone Wire, Thermocouple Wire |
Number of Employees: |
101 - 200 People |
Our company is located in the history of Chinese history and culture of the ancient city, north of yangzhou, the famous hometown of charge - baoying, located in the beijing-hangzhou grand canal bank, beijing-shanghai expressway runs through north and south, convenient transportation, beautiful environment.
Our factory was founded in 2003, after 10 years of development, has a well-trained staff, factory employees 90 people, including management personnel 18 people, engineering technical personnel 20 people, the factory covers an area of 30000 square meters, factory building area of 10000 square meters.Achieve sales value of eighty million yuan, 2013 export value of $five million.Our factory in line with the service society, the enterprise concept of understanding the world, on the basis of quality and information, reputation and service for the guidelines, wholeheartedly welcome everywhere merchants to come to discuss cooperation, mutual benefit, hand in hand create a better future
Factory Size (ters): |
25,000-30,000 square meters |
Factory Location: |
Industrial Avenue,Industrial Center,Xiaji Town Baoying Country , Yangzhou Jiangsu,China |
|
Number of Production Lines: |
7 |
Number of R&D Staff: |
21 - 30 People |
Number of QC Staff: |
21 - 30 People |
Contract Manufacturing: |
OEM Service Offered Design Service Offered Buyer Label Offered |
