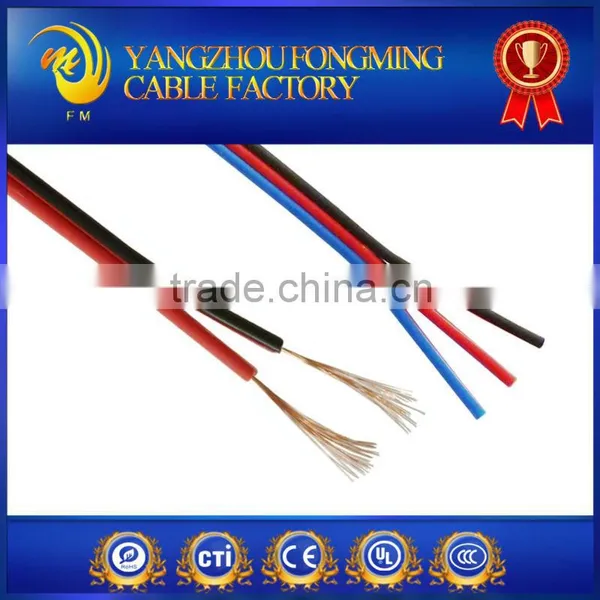

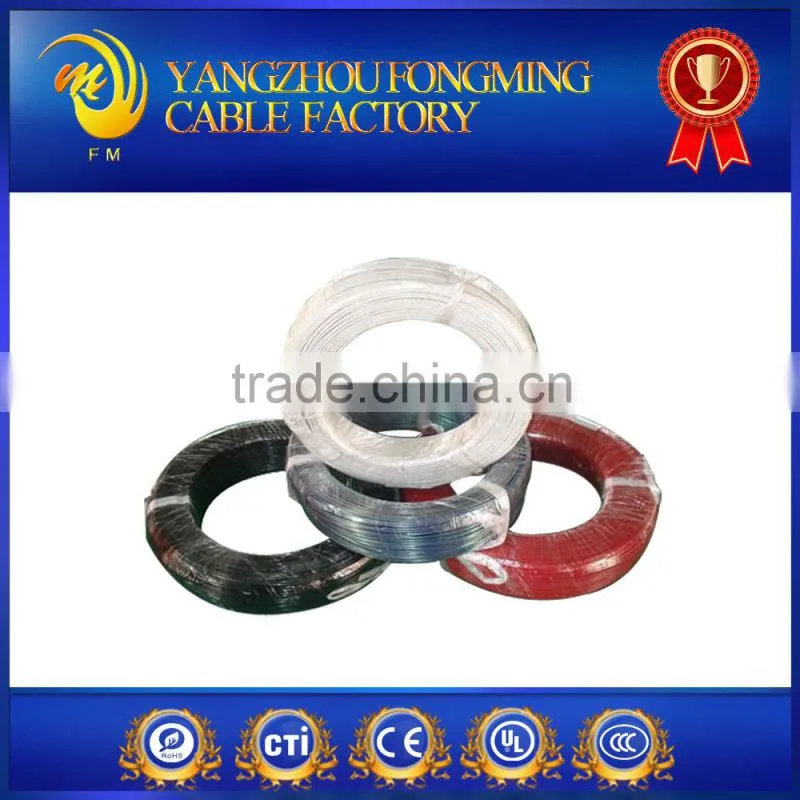

Stranded PVC Insulated Wire Copper Stranded PVC Insulation Wire
Description
Name: Stranded PVC Insulated Wire
Model:AWM 1007
Size:24~16AWG
Feature
Copper Stranded PVC Insulation Wire
Ratings Voltage:300V
Rated temperature: -60℃~+80℃
Structure
multi strand pvc insulated copper wire
Conductor: Cooper/Tinned Copper
Insulation:Extruded PVC
Standard:UL758,UL1581
Spec.
Stranded PVC Insulated Wire Copper Stranded PVC Insulation Wire
|
Size AWG |
Conductor Construction (No./mm) |
Insulation Thickness |
Diameter |
Max. Conductor Resistance (20℃) (Ω/km) |
24 |
11/0.16 |
≥ 0.38 |
1.4±0.2 |
94.2 |
22 |
17/0.16 |
1.5±0.2 |
59.4 |
|
20 |
21/0.18 |
1.7±0.2 |
37.4 |
|
18 |
16/0.254 |
1.9±0.2 |
23.5 |
|
16 |
26/0.254 |
2.3±0.2 |
14.6 |
| 1.Package length | 100meters,200meres,305meters per roll or as your requirements |
| 2.Package method | Rolls spool or coil |
| 3:Ship port | Shanghai, Shenzhen Ningbo Lianyungang Port. |
Stranded PVC Insulated Wire Copper Stranded PVC Insulation Wire
Stranded PVC Insulated Wire Copper Stranded PVC Insulation Wire
| 1: We are original manufactory so we can assure you our prices will be the best. |
| 2:We have engaged in this field since 2003,many of our wires have gotten UL or other certifications,you can get relaxed about our products qulity. |
| 3:We have strong producing campacity,generally our delivery time is quicker than other factorys. |
| 4:Any kind of wires and packages can be customized as your requirements. |
| 5:We have many years export trade experience,you completly can not worry about the inport, oppositely,you will must get a lot by it. |
|
6:Any questions,please feel free to contact us,we will reply you asap. |
America Australia Mexico South Africa
UA Colombia Ukraine Ecuador England Germany (ERGE)
French Italy(ZOPPAS) Denmark(TRIAX)
Russia India Iran Uruguay Ireland etc.
Trade & Market
|
Main Markets: |
Oceania |
Total Annual Sales Volume: |
US$50 Million - US$100 Million |
Export Percentage: |
61% - 70% |
Stranded PVC Insulated Wire Copper Stranded PVC Insulation Wire
Stranded PVC Insulated Wire Copper Stranded PVC Insulation Wire
Product/Service (We Sell): |
Multilayer Fiberglass Braiding Wire,Mica Wie,Silicone Wire, Thermocouple Wire |
Number of Employees: |
101 - 200 People |
Our company is located in the history of Chinese history and culture of the ancient city, north of yangzhou, the famous hometown of charge - baoying, located in the beijing-hangzhou grand canal bank, beijing-shanghai expressway runs through north and south, convenient transportation, beautiful environment.
Our factory was founded in 2003, after 10 years of development, has a well-trained staff, factory employees 90 people, including management personnel 18 people, engineering technical personnel 20 people, the factory covers an area of 30000 square meters, factory building area of 10000 square meters.Achieve sales value of eighty million yuan, 2013 export value of $five million.Our factory in line with the service society, the enterprise concept of understanding the world, on the basis of quality and information, reputation and service for the guidelines, wholeheartedly welcome everywhere merchants to come to discuss cooperation, mutual benefit, hand in hand create a better future
Factory Size (ters): |
25,000-30,000 square meters |
Factory Location: |
Industrial Avenue,Industrial Center,Xiaji Town Baoying Country , Yangzhou Jiangsu,China |
Number of Production Lines: |
7 |
Number of R&D Staff: |
21 - 30 People |
Number of QC Staff: |
21 - 30 People |
Contract Manufacturing: |
OEM Service Offered Design Service Offered Buyer Label Offered |
