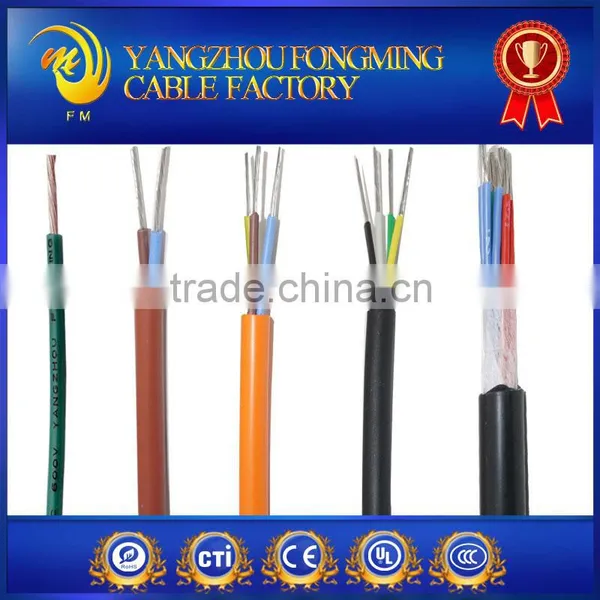

1.5mm2 UL3266 electric wires
Description
Name: 1.5mm2 UL3266 electric wires
Model:AWM 3266 1.5mm2
Size: 1.5mm2
Feature
Ratings Voltage:300V
Rated temperature: -60℃~+125℃
Structure
Conductor:Copper, Tinned Copper
Insulation:Extruded XLPE
Standard:UL758,UL1581
|
Size (AWG) |
Conductor Construction (No./mm) |
Insulation thickness (mm) |
Diameter (mm) |
Max.Conductor Resistance AT 20℃(Ω/km) |
32 |
7/0.08 |
≥0.38 |
1.0±0.2 |
590 |
30 |
7/0.1 |
|
1.1±0.2 |
381 |
28 |
7/0.127 |
|
1.2±0.2 |
239 |
26 |
7/0.16 |
|
1.3±0.2 |
150 |
24 |
11/0.16 |
|
1.4±0.2 |
94.2 |
22 |
17/0.16 |
|
1.5±0.2 |
59.4 |
20 |
21/0.18 |
|
1.7±0.2 |
37.4 |
18 |
16/0.254 |
|
1.9±0.2 |
23.5 |
16 |
26/0.254 |
|
2.3±0.2 |
14.6 |
14 |
41/0.254 |
|
2.7±0.2 |
8.96 |
12 |
65/0.254 |
|
3.2±0.2 |
5.64 |
10 |
105/0.254 |
|
3.8±0.2 |
3.54 |
Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.
