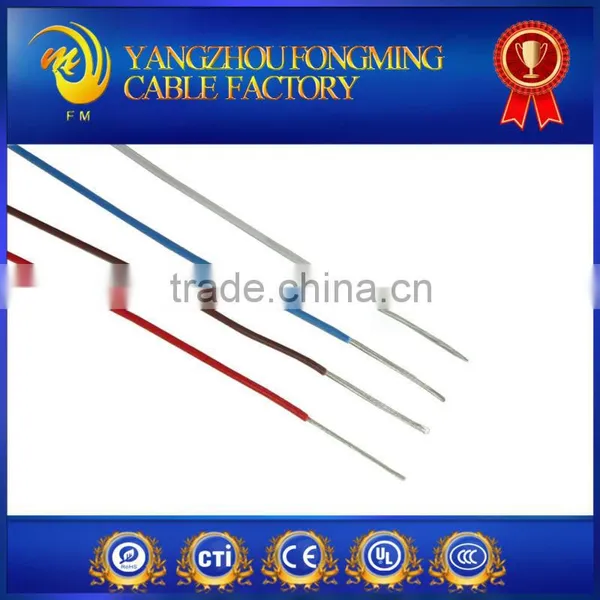

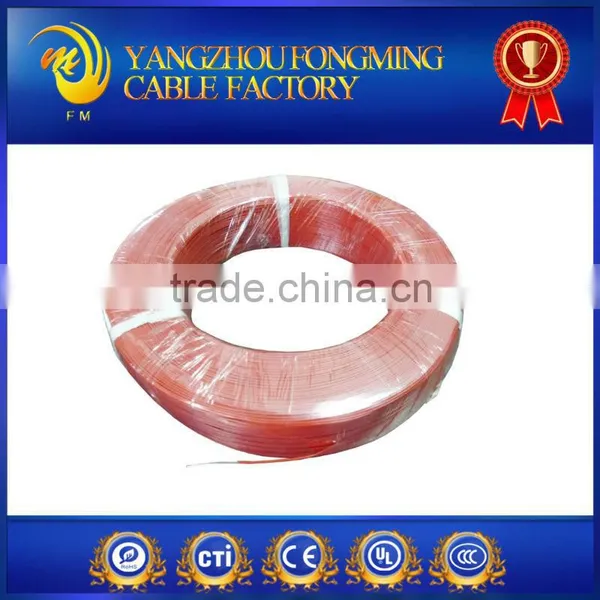

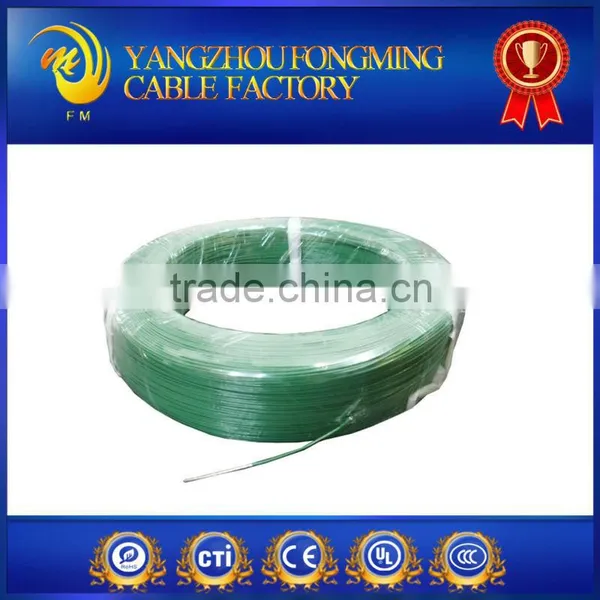

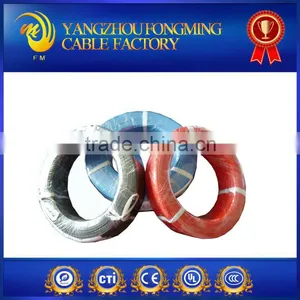

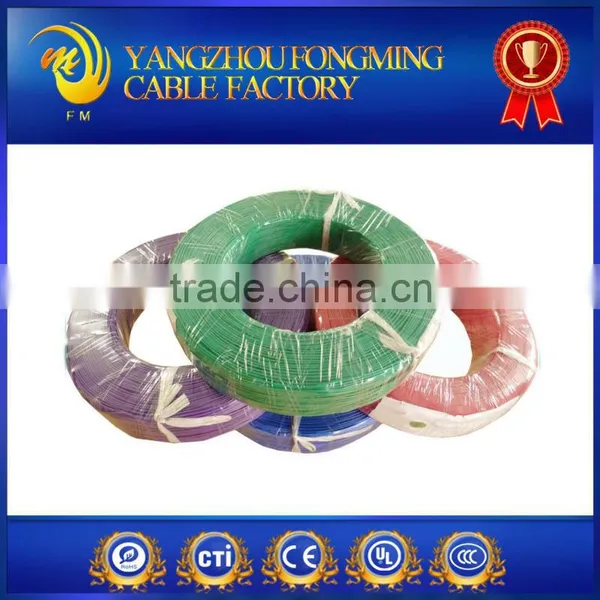

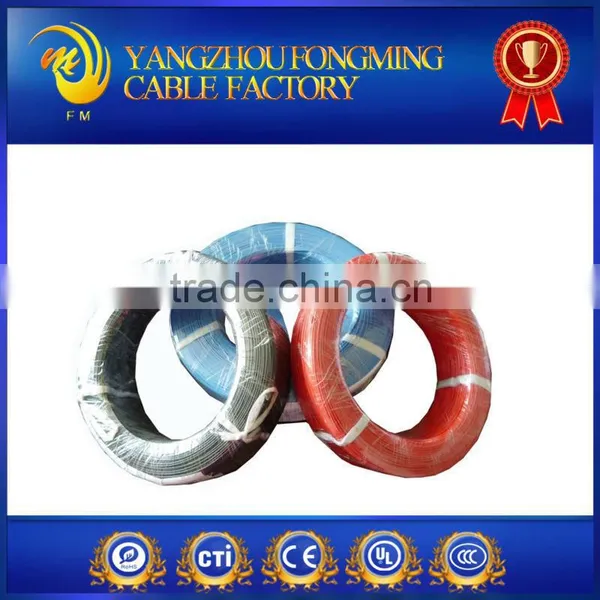

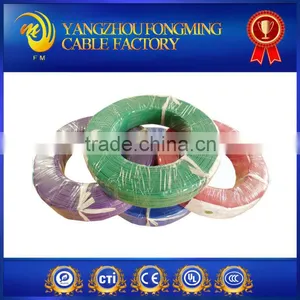

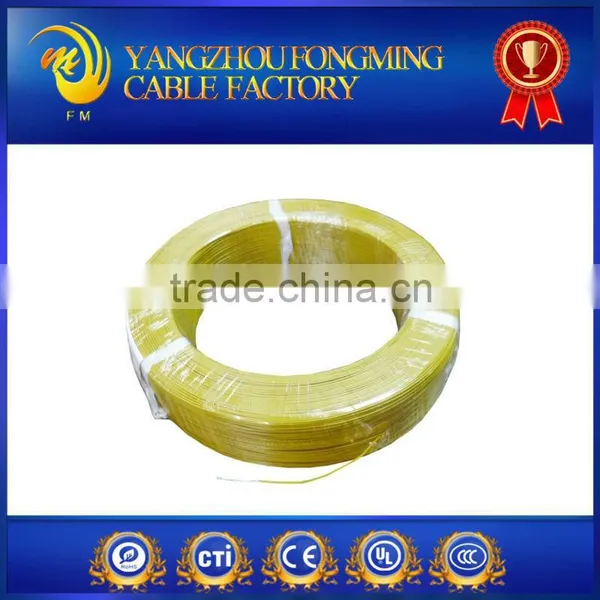

18awg Ul3173 XLPE electric wires
Description
Name: 18awg Ul3173 XLPE electric wires
Model:AWM 3173
Size:18AWG
Feature
Ratings Voltage:600V
Rated temperature: -60℃~+125℃
Structure
Conductor:Copper, Tinned Copper
Insulation:Extruded XLPE
Standard:UL758,UL1581
|
Conductor AWG |
Conductor Construction (No./mm) |
Insulation Thickness (mm) |
Diameter (mm) |
Max. Conductor Resistance (AT 20℃Ω/km) |
26 |
7/0.16 |
≥0.76 |
2.0±0.2 |
150 |
24 |
11/0.16 |
|
2.1±0.2 |
94.2 |
22 |
17/0.16 |
|
2.3±0.2 |
59.4 |
20 |
21/0.18 |
|
2.5±0.2 |
37.4 |
18 |
16/0.254 |
|
2.7±0.2 |
23.5 |
16 |
26/0.254 |
|
3.0±0.2 |
14.6 |
14 |
41/0.254 |
|
3.4±0.2 |
8.96 |
12 |
65/0.254 |
|
3.9±0.2 |
5.64 |
10 |
105/0.254 |
|
4.5±0.2 |
3.54 |
Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.
Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producing universal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.
