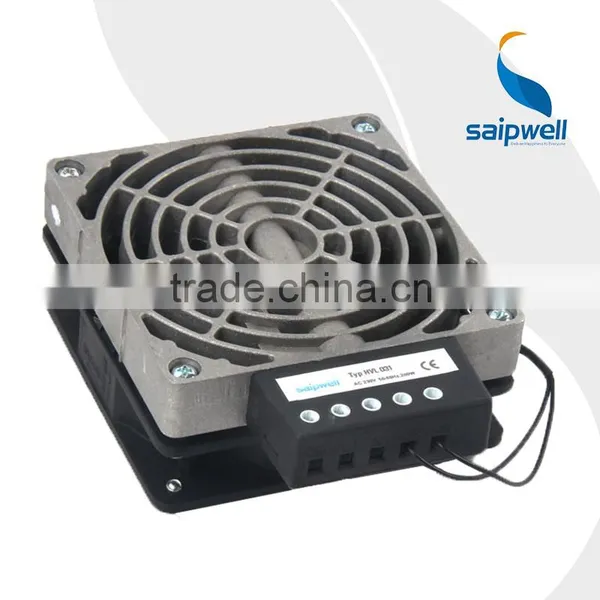

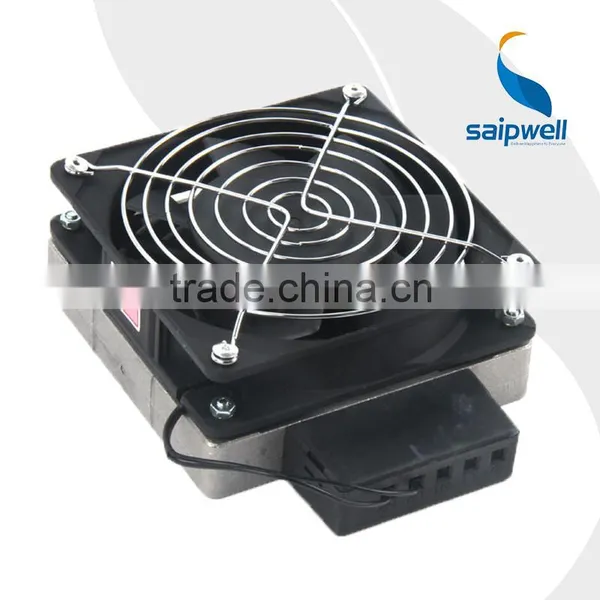

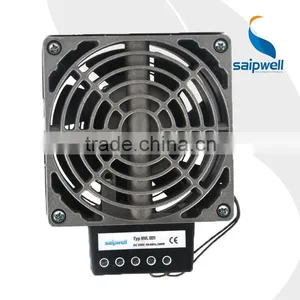

SAIPWELL HV 031/HVL 031 100W To 400W Space-saving Fan Heater
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Air Heater
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SAIPWELL CSL028 150W,250W,400W Small Compact PTC Fan HeaterNegotiableMOQ: 1 Piece -
SAIPWELL HGK 047 10W,20W,30W PTC Semiconductor Heater For EnclosureNegotiableMOQ: 1 Piece
-
SAIPWELL CS 130 1200W Compact High-performance Fan HeaterNegotiableMOQ: 1 Piece
-
SAIPWELL 5W,9W REC 016 Small Semiconductor HeaterNegotiableMOQ: 1 Piece
-
SAIPWELL CSF 060 50W To 150W Touch-safe Heater With CENegotiableMOQ: 1 Piece
Condition
New
Type
Air Heater
Power Source
Electric
Place of Origin
Zhejiang, China
Brand Name
SAIP/SAIPWELL/Stego
Model Number
HV 031/HVL 031
Power(W)
100W,150W,200W,300W,400W
Certification
CE,RoHS
SAIPWELL HV 031/HVL 031 100W To 400W Space-saving Fan Heater
HV 031/HVL 031 Heater Feature:
1.Compact
2.Flat design
3.High air through-flow
4.Temperature safety cut-out
5.Clip fixing
6.CE&RoHS
SAIPWELL HV 031/HVL 031 100W To 400W Space-saving Fan Heater
Specification:
HV 031/HVL 031 Heater: The compact high-performance fan heater prevents formation of condensation in control or switch systems and provides an evenly distributed interior air temperature in enclosures. This fan heater is available without fan (HV 031) as well as with fan (HVL 031).
SAIPWELL HV 031/HVL 031 100W To 400W Space-saving Fan Heater
Technical Data:
| HV 031 | Heater without fan (fan mounting kit included) |
| HVL031 | Heater with fan |
| Heating element | high performance cartridge |
| Temperature safety cut-out | to protect against overheating in case of fan failure |
| Heater body | die-cast aluminium(glass bead blasted) |
| Connection | 3-pole screw connector 2.5mm² clamping torque 0.8Nm max. |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | horizontal |
| Operating/Storage temperature | -45 to +70°C (-49 to 158°F) |
| Protection type/Protection class | IP20/ I (earthed) |
| HVL 031 only | |
| Axial fan, ball bearing | airflow see table service life 50,000h at 25°C(77°F) |
| Connection(axial fan) | 2-pole screw connector 2.5mm² (L2/N2) |
|
Art.No. HV 031 230VAC, 50/60HZ |
Art.No. HV 031 120VAC, 50/60Hz |
Heating capacity | Dimensions | Weight |
| 03100.0-00 | 03100.9-00 | 100W | 80*112*22mm | 0.40kg |
| 03101.0-00 | 03101.9-00 | 150W | 80*112*22mm | 0.40kg |
| 03110.0-00 | 03110.9-00 | 200W | 119*151*22mm | 0.50kg |
| 03111.0-00 | 03111.9-00 | 300W | 119*151*22mm | 0.50kg |
| 03112.0-00 | 03112.9-00 | 400W | 119*151*22mm | 0.50kg |
|
Art.No. HVL 031 230VAC, 50/60Hz |
Art.No. HVL 031 120VAC, 50/60Hz |
Heating capacity | Airflow min., free flow | Dimensions | Weight |
| 03102.0-00 | 03102.9-00 | 100W | 35m³/h | 80*112*47mm | 0.60kg |
| 03103.0-00 | 03103.9-00 | 150W | 35m³/h | 80*112*45mm | 0.60kg |
| 03113.0-00 | 03113.9-00 | 200W | 108m³/h | 119*151*47mm | 0.90kg |
| 03114.0-00 | 03114.9-00 |
300W | 108m³/h | 119*15147mm | 0.90kg |
| 03115.0-00 | 03115.9-00 | 400W | 108m³/h | 119*151*47mm | 0.90kg |
SAIPWELL HV 031/HVL 031 100W To 400W Space-saving Fan Heater

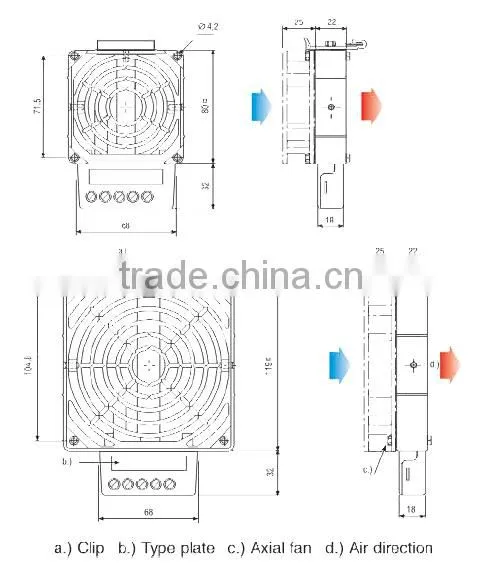

Technical Drawing:
SAIPWELL HV 031/HVL 031 100W To 400W Space-saving Fan Heater

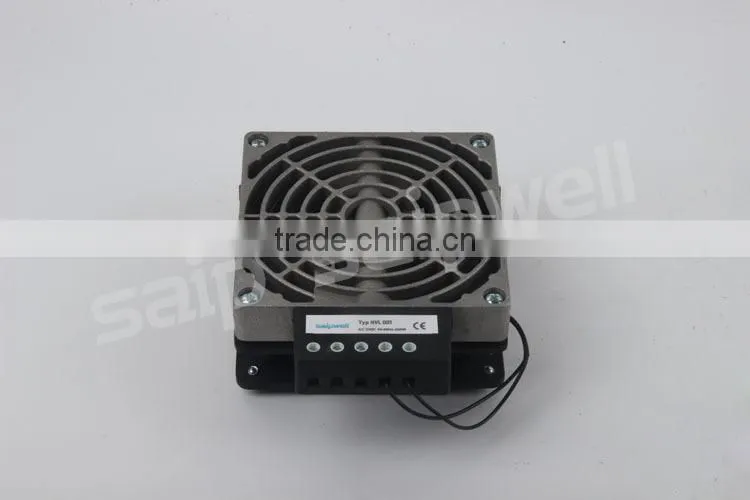

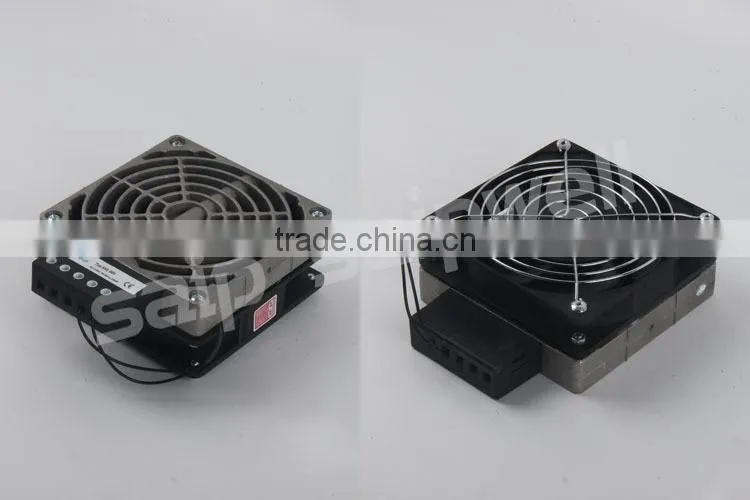

Picture Show:
SAIPWELL HV 031/HVL 031 100W To 400W Space-saving Fan Heater
Thermostat And Heater Series:
SAIPWELL HV 031/HVL 031 100W To 400W Space-saving Fan Heater
Our Company:
Shanghai Saipwell Electric Co., Ltd. is a manufacturer of PTC heaters, Thermostats and all kinds of waterproof boxes with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in terminal substitution rail installation, button box, small terminal, relay, sensor, communication and other industries. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.
We have variety of thermostats and we can try our best to meet all your needs. Business Principle: To conduct business in a simple straightforward manner. To manufacture, innovative products that bring convenience to its users.
Our Factory:

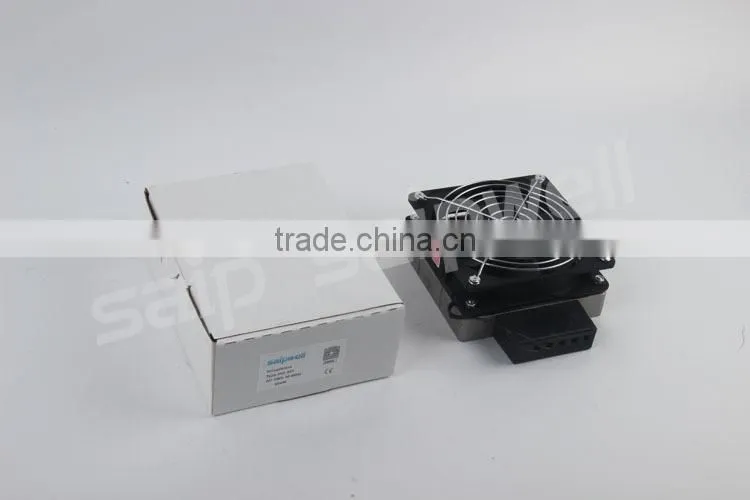

Shipping:
