Specifications
1.Excellent performance2.Easy and safe to operate
3.Applicable can height:70~320mm
4.Applicable can diameter:52~99mm

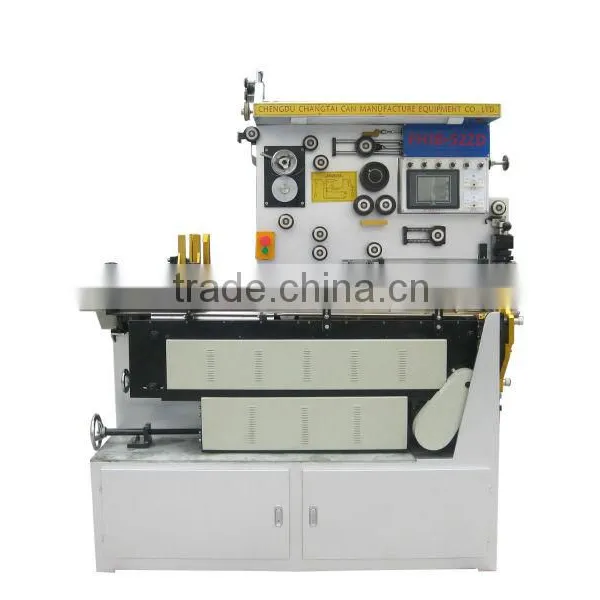

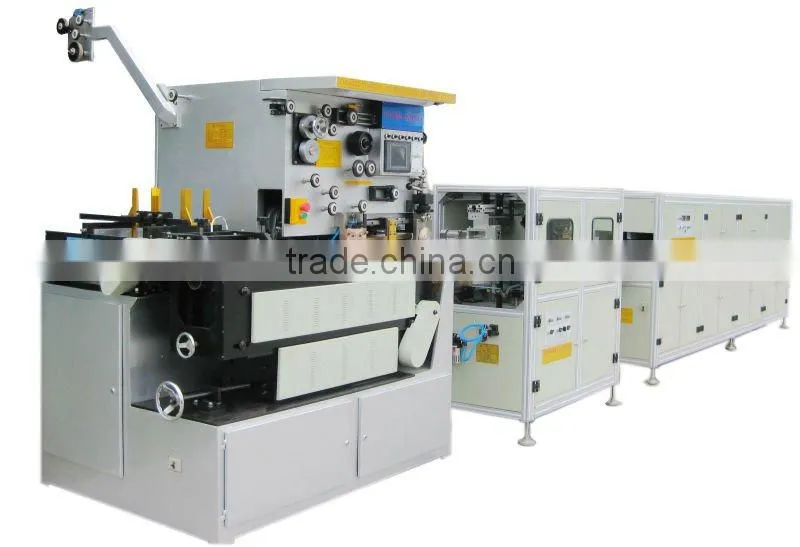

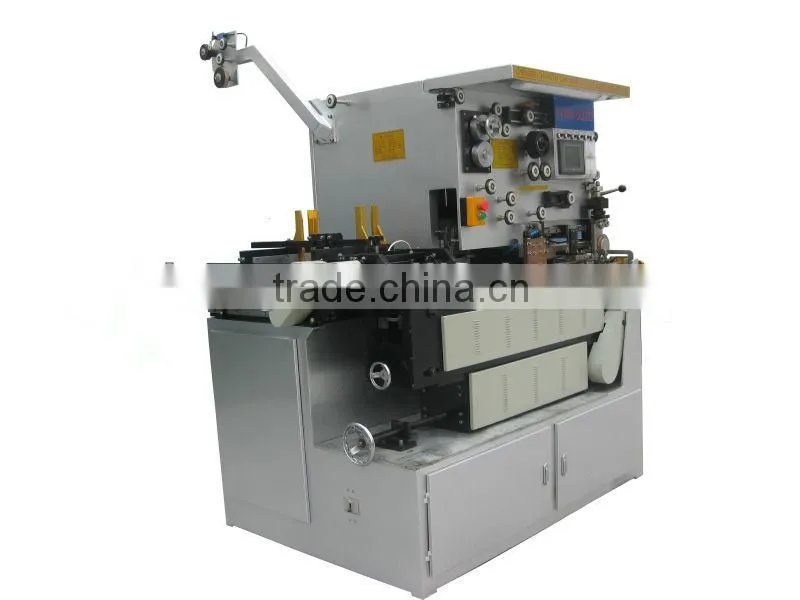

can body welding machine for chemical tanks 1.Main technical data
| Mode | FH18-52ZD |
| Linear rate of welding | 6-26m/min /10-36m/min |
| Production capability | 60~120Cans/min |
| Applicable can diameter | Φ52~Φ99mm |
| Applicable can height | 70~320mm |
| Applicable material | Tinplate steel-based |
| Applicable material thickness | 0.16~0.30mm |
| Seam welding landing | 0.4mm 0.6mm |
| Seam point distance | 0.5-0.8mm |
| Applicable copper wire diameter | Φ 1.38mm Φ 1.5mm |
| Cooling water | Temperature:15-20°CPressure:0.4~05Mpa Discharge:10L/min |
| Compressed air consumption | 600 L/min |
| Pressure of compressed air | 0.5Mpa-0.7Mpa |
| Power | 80V±5% 50HZ3 |
| Total power | 40KVA |
| Dimension | 1950×1100×1800mm |
| Weight | 1800Kg |
***********************************************accessories****************************
***********************************************
2.Our major component suppliers
1, PLC(Programmable Logic Controller) is purchased from Japanese MITSUBISHI.
2, Low voltage apparatus are produced by SCHNEIDER.
3, IGBT(Insulated Gate Bipolar Transistor) is bought from Japanese FUJI.
4,OMRON is our sensor supplier.
5, HMI(Human Machine Interface) is purchased from WEINTEC Labs.,Inc in Taiwan.
3.Can making technology process
Cutting-----rounding-----welding-----coating-----drying-----pre-curling and expanding-----flanging-----seaming bottom-----beading and curling
Conton fair:
Workshop:
Appliable tin cans:
Certificates:
Mainly products:
