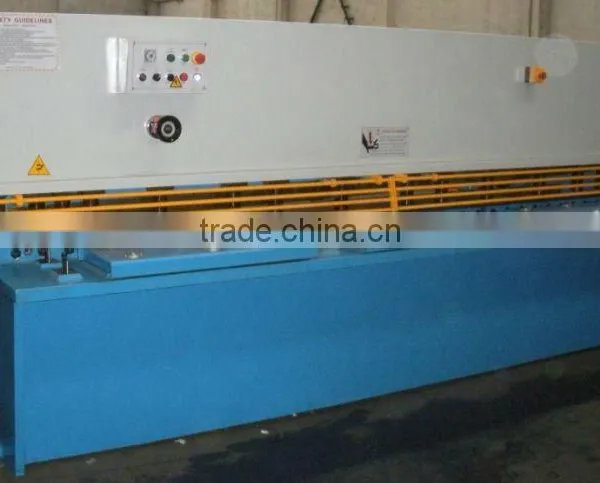

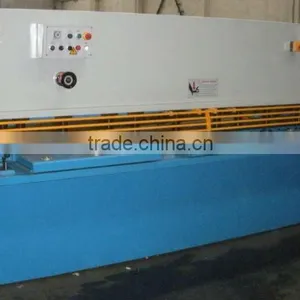

Shearing Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Model Number:

QC 12Y Series

Machine Type:

Press Brake

Tengzhou Uni-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO OR SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Model Number QC 12Y Series

Machine Type Press Brake

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Specifications

shearing machine

Model	Shear size(TxW) (mm)	Shear angle	Noload strokes (times/min)	Adjustment range of backguage(mm)	Main motor power(kw)	Net weight (kg)	Dimensions (LxWxH) (mm)
QC12Y-6x2500	6X2500	1°30′	18	20-600	7.5	6000	3040X1610X1620
QC12Y-6x3200	6X3200	1°30′	14	20-600	7.5	7200	3840X1610X1620
QC12Y-6x4000	6X4000	1°30′	10	20-600	7.5	10000	4640X1705X1700
QC12Y-8x2500	8X2500	1°30′	14	20-600	11	6500	3140X1610X1620
QC12Y-8x3200	8X3200	1°30′	10	20-600	11	7800	3840X1610X1620
QC12Y-8x4000	8x4000	1°30′	8	20-600	11	11000	4680X1705X1700
QC12Y-10x2500	10x2500	1°48′	10	20-600	15	7000	3350X2050X1950
QC12Y-10x3200	10x3200	1°48′	8	20-600	15	11000	4050X2050X1790
QC12Y-10x4000	10x4000	1°48′	8	20-600	18.5	14000	4920X2250X1790
QC12Y-12x2500	12x2500	1°48′	10	20-800	18.5	7800	3320X2050X1790
QC12Y-12x3200	12x3200	1°48′	8	20-800	18.5	12000	1020X2050X17900
QC12Y-16x2500	16x2500	2°	8	20-800	30	15000	3300X2300X2150
QC12Y-16x3200	16x3200	2°	7	20-800	30	16000	4100X2300X2150
QC12Y-16x4000	16x4000	2°	6	20-800	30	23000	4800X2300X2150
QC12Y-20x2500	20x2500	2°	8	20-800	45	16000	3300X2300X2650
QC12Y-20x3200	20x3200	2°	5	20-800	45	25000	4100X2350X2710
