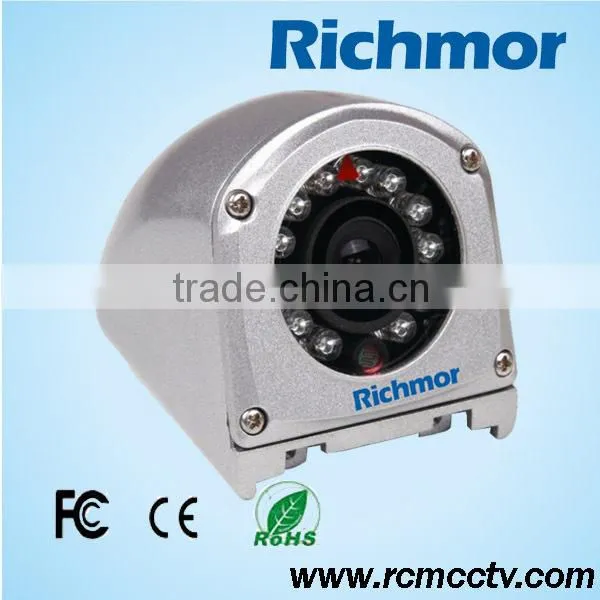

High Definition Sony CCD 600TVL Small Car Camera For Vehicle

Name: High Definition Sony CCD 600TVL Small Car Camera For Vehicle
Brand: Richmor/OEM
SKU: 107487997

US$ 24 - 39 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Richmor/OEM

Model Number:

RCM-CM360S/IR

Shenzhen Richmor Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Richmor/OEM

Model Number RCM-CM360S/IR

Type Analog Camera

Style Mini Camera

Sensor CCD

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

Waterproof IR Side View Car Camera
1.SONY CCD
2.420/480/540/600/700TVL for optional
3.Water-proof IP67
4.FCC RoHS CE

High Definition Sony CCD 600TVL Small Car Camera For Vehicle

Car Camera's Feature:

1.SONY/SHARP CCD (optional)

2.420TVL-600VL (definition are optional)

3.Optically controlled design; auto exposure to control on/off switch of IR led

4.High-efficient IR tube

5.Auto AGC; auto white balance; BLC

6.IR distance 10/20M

7.Standard fixed lens: 3.6mm/6mm

Car Camera's Specification:

CCD sensor	1/3"SONY CCD
pixel (H×V)	PAL:795×596 NTSC:811×508
Horizontal resolution	650TVL
signal system	PAL / NTSC
Horizontal synchronous frequency	PAL:15.625KHZ / NTSC:15.734KHZ
clock frequency MHZ	PAL:19.3125 / NISC:19.0699
scanning system	2:1 interlaced scanning
lowest illumination	0LUX(IR led open)
method of synchronization	internal synchronization
S/N	48 dB
electronic shutter	PAL:1/50-1/100,000sec;NTSC:1/60-1/100,000
Gamma characteristics	0.45
video output	1 Vpp,75 Ohms
AGC	automatic
power supply	12V DC (+/-10%)
electricity current	300mA
working temperature	-10-45°C
