Home > Electrical & Electronics > Relay & Contactor > Relay > JQX-59F-1Z Relay/power Relay 80A/30VDC 250VAC

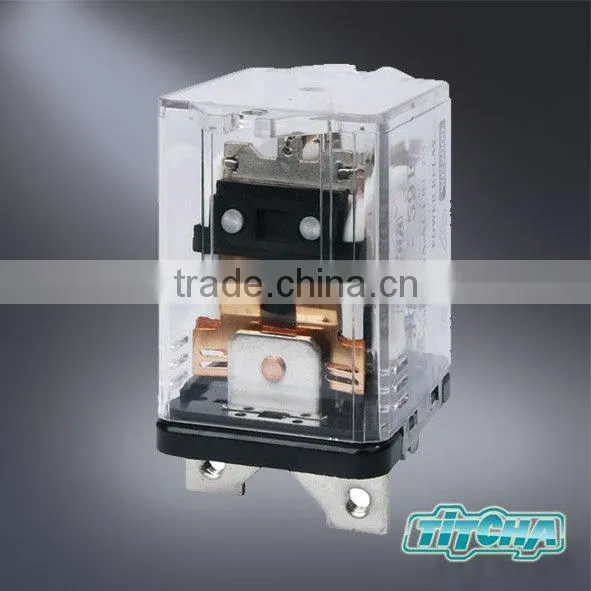

JQX-59F-1Z Relay/power Relay 80A/30VDC 250VAC
Negotiable
MOQ: 500 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TITCHA
Model Number:
JQX-59F-1Z RELAY
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
TITCHA
Model Number
JQX-59F-1Z RELAY
Theory
Other, power relays
Usage
General Purpose
Size
Miniature
Protect Feature
Sealed
Contact Load
High Power
Size(mm): 46×51×66.3
Tirminal layout: 1Z,1H,1D
Contact capacity: 80A 28VPC/80A 220VAC
Contact resistance: ≤50mΩ
Inulation resistance: ≥1000MΩ
Dielectric strength: BOC 1500VAC/BCC 2500VAC
Model |
JQX-52F-1Z |
JQC-58F-1Z |
JQC-59F-1Z |
JQC-60F-1Z |
Coil nominal voltage |
DC 6 to 220V |
DC 6 to 220V |
DC 6 to 220V |
DC 6 to 220V |
AC 6 to 380V |
AC 6 to 380V |
AC 6 to 380V |
AC 6 to 380V |
|
Coil nominal power |
DC≤2.8W |
DC≤3W |
DC≤3.5W |
DC≤3W |
AC≤4.2VA |
AC≤4.2VA |
AC≤6VA |
AC≤4.5VA |
|
Electrical life |
105OPS |
105OPS |
105OPS |
105OPS |
Mechanical life |
106OPS |
106OPS |
106OPS |
107OPS |
Operating temperature |
-40°C~55°C |
-40°C~70°C |
-45°C~55°C |
-40°C~+55°C |
Weight |
≤150g |
≤191g |
≤233g |
≤187g |
Mounting methods |
Scfrew Mounting |
Scfrew Mounting |
Scfrew Mounting |
Scfrew Mounting |
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2000
Factory Size
1,000-3,000 square meters
Total Employees
101 - 200 People
