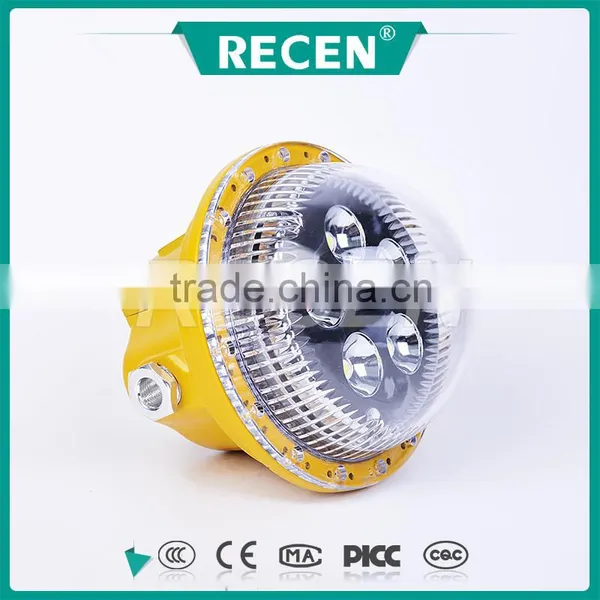

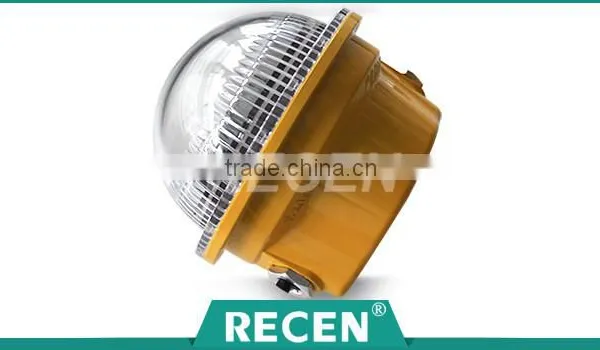

IP65 5 watt China manufacture 3 years warranty maintenance-free mini water proof mini size Led explosion-proof lighting RFBL156
Application:
It meets the standards and requirements for hazardous environments.
Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas & and damp condition
Features and benefits
1. using the highest of Explosion-proof grade , in flammable and explosive area to safe work
2. the 4th generation green protection environments ,high efficiency of light ,almost maintenance-free operation due to long service life of the LED
3. energy-saving. energy cost saving up to 80% realisable
4. downy and anti dazzle.
5. The aluminum body is powder coated for anti corrosion, which is dust and water proof.
6. Anti-bullet glue material resist impact ,can be work in harsh environments.
7. Various installation options
Specification of explosion-proof lighting
| Technical parameters | |||||
| No | Specification | unit | Reference values | ||
| 1 | Rated Voltage | V | AC220 | ||
| 2 | Frequency | Hz | 50/60 | ||
| 3 | Light source(LED) | Power | w | 5 | |
| Luminous flux | 5 | lm | 430 | ||
| service life of light source | h | 100000 | |||
| 4 | The introduction of cable(diameter) | mm | 8~12 | ||
| 5 | Dimensions | out diameter | mm | 135 | |
| Length | 145 | ||||
| 6 | weight | kg | 1.4 | ||
| 7 | Screw thread of inlet | G3/4'' | |||
| 8 | Protection grade | IP65 | |||
| 9 | Anti Corrosion | WF2 | |||
| 10 | Insulation Grade: | I | |||
| 11 | Ex code: | Ex d II C T6 | |||
Explosion-proof lighting of installation drawing
Explosion-proof lighting of light distribution curve
Related explosion-proof lighting Some of model light have three rated power for your select , satified to your different demands.
| RFBL154 |
RFBL158 | RFBL105 | RFBL164 | RFBL165 |
| RFBL103 | RFBL153 | RFBL160 | RFBL162 | |
| RFBL155 | RFBL104 | RFBL157 | RFBL161 | |
Packaging Details: regular packing or customized for explosion proof light
Delivery Detail: 10-20days after receiving the 30%deposit for explosion proof light
Quality Guarantee
Thank you for purchasing explosion proof light of Wenzhou Recen Lighting Electrical Co., Ltd.. Our products are in strict accordance with the ISO9001 quality control standards. Explosion proof light warranty is for 3 years (Light bulb for 1 year). In three years, any failure under normal use is repaired by our company for free (Free materials and repairs). contact our company's marketing service department, and we will provide you with high quality and efficient services.
Why us
Because we believe in providing quality not just the first time, but every time:
High Customer satisfaction
Various of products
Competitive price
OEM/ODM are welcomed
explosion-proof lighting patents and ISO 9001:2008
Recen CCC certification , business license and trade mark.
RECEN tax registration certification and Organization-Code-Certificate
Q: Which areas need to use explosion proof light?
A: It meets the standards and requirements for hazardous environments. Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas and areas with dust.
Q: What is the advantage of explosion proof light?
A: It make the worker more safe, because the lamp having function with explosion-proof, dust proof and water proof. In flammable and explosive area to safe work.
Q: Do Led have a longer life than incandescent bulbs?
A: Yes. Incandescent bulb generally last 500-2000 hours, whereas Led may last for 20000-50000 hours or around 20-40 years. this means Led may last 25 times longer than incandescent.
Q: Do the surface of explosion proof light will rust?
A:No, we choose the advantage spay printing of surface, no rust, do not change color, anti rain, could be use outfield for a long terms
Q: How does your factory do regarding quality control?
A: Quality first. We always attach great important to quality control form begin to end. Our factory has gained CCC,CQC authentication.
