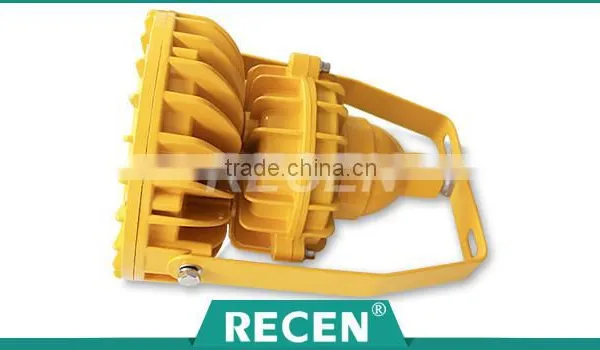

20 30 40w IP66 high-efficiency Durable Aluminum Integrated high power led explosion proof light RFBL153-20 30 40w
Which areas need high power led explosion proof light ?
Hazardous zones: 1, 2
Gas : IIA IIB IIC,
Temperature :T1~T6
It meets the standards and requirements for hazardous environments. Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas & and damp condition
What is the benefit and feature of high power led explosion proof light ?
1.Chosen high quality chip, instant light with Maximum luminous flux even at very low temperatures.
2.Adopted SMT, to improve thermal conductivity greatly
3. Constant current drive with high over voltage protection, short-circuit.
4. power itself has excellent anti electromagnetic interference
5. Adhesive sealing process to ensure that the element anti corrosion
6. carefully design (independent of light source/power/wiring cavity) to ensure that the element work stable
7 . The roof cavity it is convenient for wiring and maintenance
8. Various installation options
9.Two work type can be choose, normal and emergency
what is the parameters of high power led explosion proof light ?
| Technical parameters | |||||
| No | Specification | unit | Reference values | ||
| 1 | Rated Voltage | V | AC220 | ||
| 2 | Frequency | Hz | 50/60 | ||
| 3 | Light source(LED) | Power | w | 20 | |
| 30 | |||||
| 40 | |||||
| Luminous flux | 20 | lm | 2100 | ||
| 30 | 3150 | ||||
| 40 | 4200 | ||||
| service life of light source | h | 100000 | |||
| 4 | The introduction of cable(diameter) | mm | 8~12 | ||
| 5 | Dimensions | Length | mm | 220 | |
| width | 220 | ||||
| height | 270 | ||||
| 6 | weight | kg | 3.5 | ||
| 7 | Screw thread of inlet | G3/4'' | |||
| 8 | Protection grade | IP66 | |||
| 9 | Anti Corrosion | WF2 | |||
| 10 | Insulation Grade: | I | |||
| 11 | Ex code: | Ex d II C T6 | |||

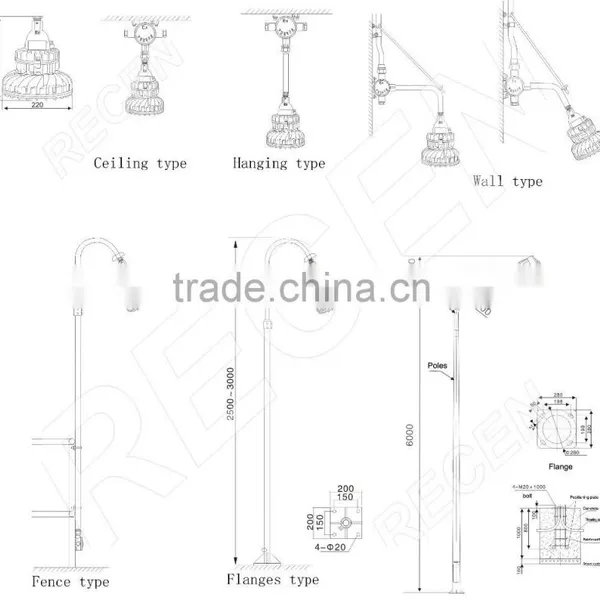

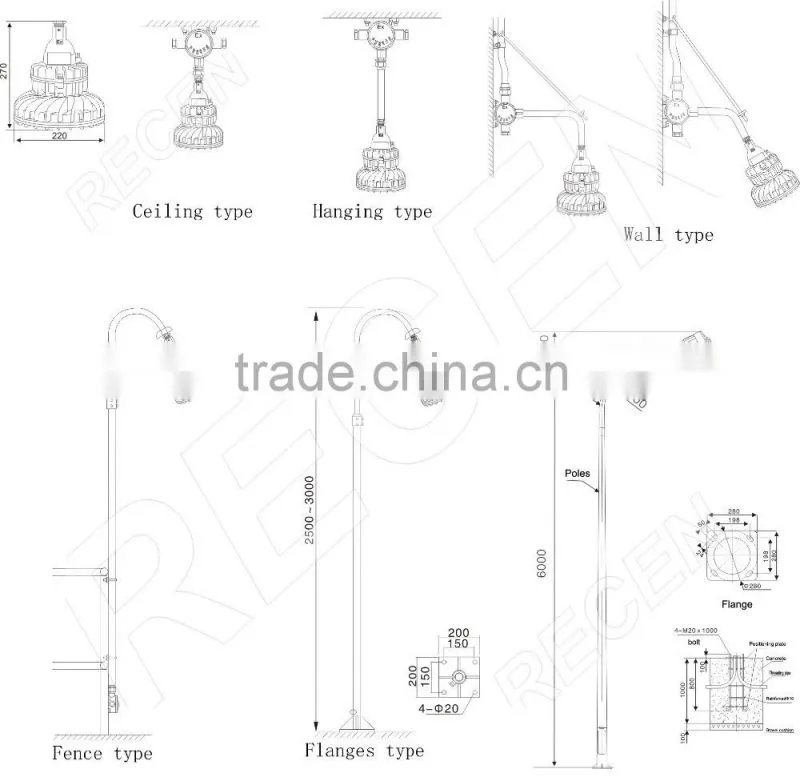

installation drawing of high power led explosion proof light

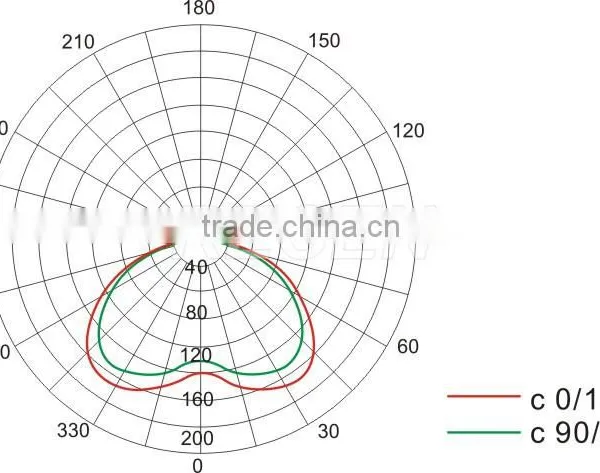

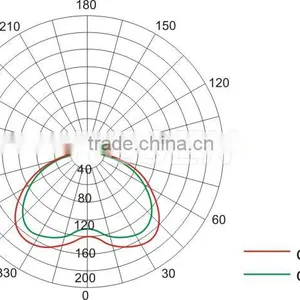

Light distribution curve of high power led explosion proof light
Related high power led explosion proof light Some of model light have three rated power for your select , satified to your different demands.
| RFBL103 | RFBL158 | RFBL156 | RFBL164 | RFBL165 |
| RFBL104 | RFBL154 | RFBL160 | RFBL162 | |
| RFBL105 | RFBL155 | RFBL157 | RFBL161 | |
Packaging Details: regular packing or customized for high power led explosion proof light
Delivery Detail: 10-20days after receiving 30% deposit for high power led explosion proof light
Quality Guarantee
Thank you for purchasing high power led explosion proof light of Wenzhou Recen Lighting Electrical Co., Ltd.. Our products are in strict accordance with the ISO9001 quality control standards. high power led explosion proof light warranty is for 3 years (Light bulb for 1 year). In three years, any failure under normal use is repaired by our company for free (Free materials and repairs). contact our company's marketing service department, and we will provide you with high quality and efficient services.
Why us
Because we believe in providing quality not just the first time, but every time:
•High Customer satisfaction
• Various of products
• Competitive price
• OEM/ODM are welcomed
high power led explosion proof light patents and ISO 9001:2008
Recen CCC certification , business license and trade mark.
RECEN tax registration certification and Organization-Code-Certificate
Q: Which areas need to use high power led explosion proof light ?
A: It meets the standards and requirements for hazardous environments. Ideal for use in oil fields, chemical plants, power plants, petroleum, painting areas and areas with dust.
Q: What is the advantage of high power led explosion proof light ?
A: It make the worker more safe, because the lamp having function with explosion-proof, dust proof and water proof. In flammable and explosive area to safe work.
Q: Do Led have a longer life than incandescent bulbs?
A: Yes. Incandescent bulb generally last 500-2000 hours, whereas Led may last for 20000-50000 hours or around 20-40 years. this means Led may last 25 times longer than incandescent.
Q: Do the surface of lamp will rust?
A:No, we choose the advantage spay printing of surface, no rust, do not change color, anti rain, could be use outfield for a long terms
Q: How does your factory do regarding quality control?
A: Quality first. We always attach great important to quality control form begin to end. Our factory has gained CCC,CQC authentication.
