Specifications

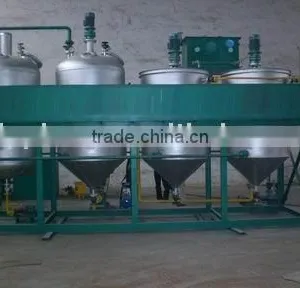

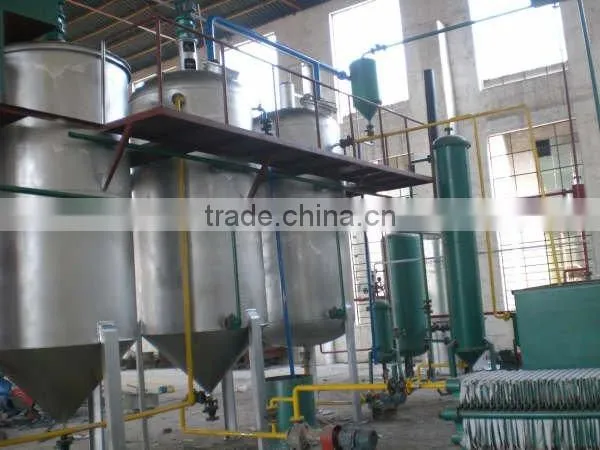

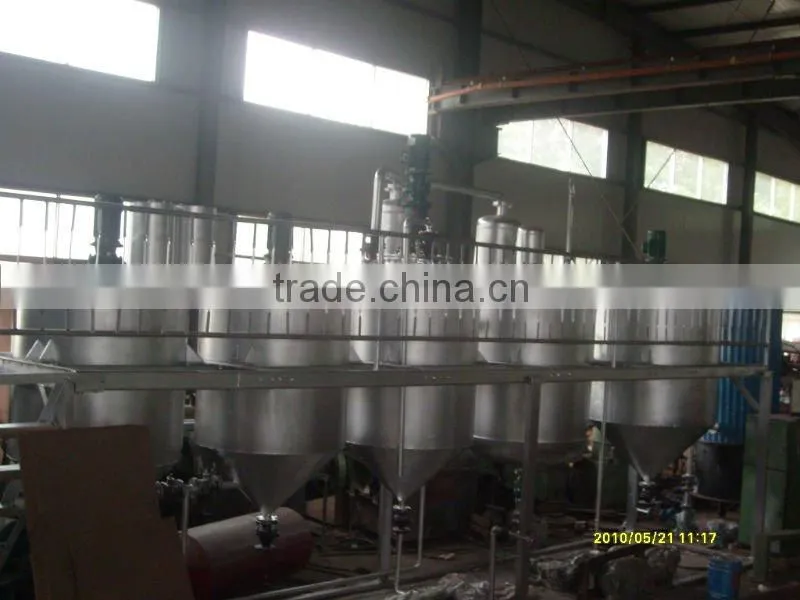

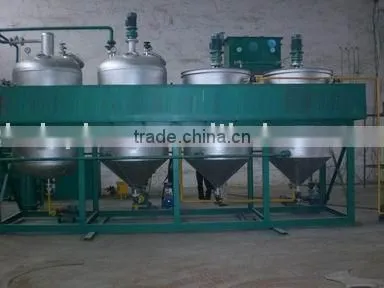

We have very rich experience and advanced machines for making Oil Refinery Equipment,which lead the technicity in this fieldWhole process of oil refinery equipment
The rude oil from oil press or solvent process, which should be refined for better edible oil.
The capacity is from 1t to 5t per day.
1. OIL PRE-PRESSING PROCESS:
it is necessary for crushing the palm meat into pieces alike rice size ,then rid off its more moisture .
The oil pressing plant is composed of seeds cleaning & crushing unit, steaming and drying units, pressing unit,conveyor,electrical cabinet box,etc . The oil pressing unit as the main stage, to make the vegetable seeds flake in a hardened cage to squeeze oil content out.
It's complete set of oil pressing equipment, which is automatically operated to save more labor and cost.
Including to the following machines and parts:
Electrical apparatus control, materials feeder, conveyer, screening machine, steaming & frying machine, huller machine, medium boilor etc.
The by-products from the oil press are cake and soap residue. The cake could be used as animal food with our pelleting machines, or source material for the other way of extraction. Soap residue is the source material for laundry soap with soap making machines and washing detergent .
In fact ,the soybean could directly extruded ,then go to solventing process ,so it could save more investing cost . we suggest the clients to use this process better .
2.OIL SOLVENTING PROCESS:
The second way to extract oil for using chemical solvent to dissolve oil content contained in cake or direct oil seeds,only for lower oil seeds,for example soybean. Then oil is separated from solvent by vaporizing solvent out. In configuring the solvent extraction plant, pre-pressing may be involved in which case seeds are lightly pressed, and which leaves about 14% to 18% oil in the pressed cake. Solvent extraction will further process these cakes and leave less than 1% oil in the final cake. This method results in higher yields, more oil; Lower power consumption, lower wear & tear / maintenance and high extract efficiency. Thus it could be used as complement equipment to extract the oil remained in cake, which yields are extra profits.
Certainly if the capacity is less than 5 tons, or it is high rate of output oil , this process could be saved .
3.OIL REFINERY PROCESS:
The crude vegetable oil from above mentioned two ways of extracting, oil pressing and/or solvent extraction, will be pumped into oil refinery units to produce cooking oil at various grades.
The main equipment of oil refinery is various kinds of vessels and tanks carrying on different tasks with additives. These tasks may include sedimentation/filtering, neutralization (removing free fatty acid), degumming, decolorization (bleaching), deodorization, dewax etc. Different combination of steps and the treating degree of each step result in different grade cooking oil and salad oil.
Especially the fractionation of palm is important for getting different grade oil .
Note: we have the different oil mill factory for the visit .
We supply for the turn-key project now and then.
Welcome to visit our factory !
