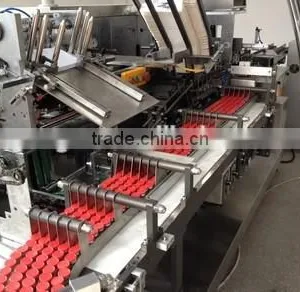

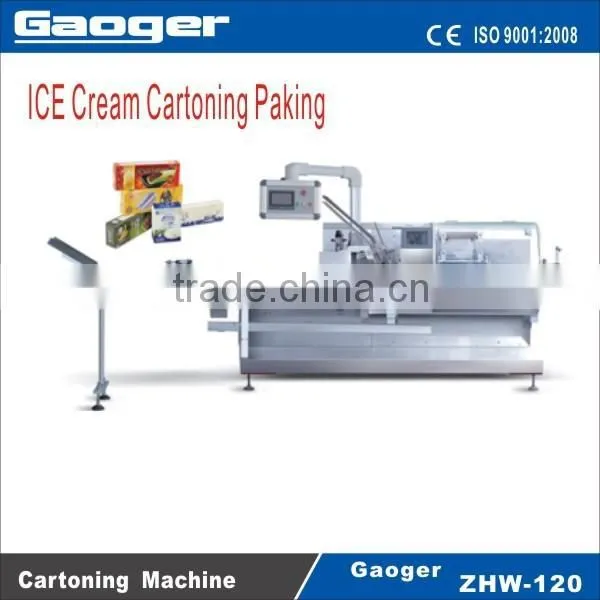

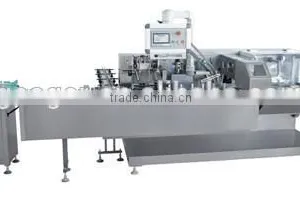

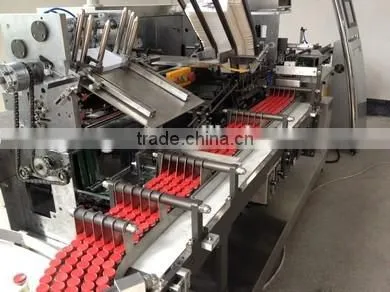

ZHW-120 automatic cartoning machine
Ice cream cartoning packing
Brief introduction:
Cartoning machine used for packing ice cream into carton box .
The machine change the traditional packing by hand, greatly improve the working efficiency, reduce the cost, save labor(on the basic of the original handmade cartooning machine, each line could be save 6-7 people). The machine is controlled by PLC, speed is adjustable, capability is stable, running is safe, and it is with GMP standard.
PLC Control system GMP compliant design
Chang product quickly conveniently auto-carton safe control
The contacting part with food adopt harmless material stainless steel
Main Technical Data:
Output: steady running speed 50-100 carton/ min( machine running speed is 110)
Min size: Length: 65mm Width: 35mm, Height: 12mm
Max Size: Length 200mm, Width 170mm,Height: 90mm
Electrical power Connection :380±10 V,50HZ 4KW (can be according with customer requirements)
Compressed Air pressure:0.6 Mpa
Air Consumption:150 NL/min
Air compressor:≥0.22m3/min(self-prepared)
Overall Dimensions: 2950×1400×1530mm
Weight: 1200KG
used in food packaging (cookies, frozen food, pastry,bread,ice cream), daily necessities
