ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine

ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine thumbnail-1
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine thumbnail-2
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine thumbnail-3
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine thumbnail-4
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine thumbnail-5
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine thumbnail-6
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine photo-1
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine photo-2
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine photo-3
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine photo-4
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine photo-5
ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine photo-6
US$ 10,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Gaoger
Model Number:
ZHB-100
Contact Supplier Request Quote Chat Now
Wenzhou Gaoger Machinery Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Any China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Gaoger
Model Number ZHB-100
Application Other, Bottle ,Tube
Type Other, Cartoning Machine
After-sales Service Provided Engineers available to service machinery overseas

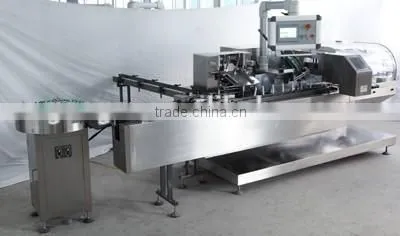

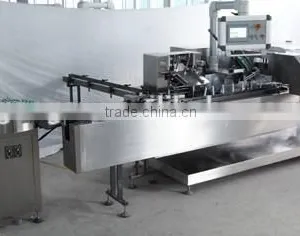

ZHB-100 Full Automatic Cartoning Machine



Specifications



1. Automatic Cartoning machine
2.PLC and touch screen
3.Speed is 100boxes/min
4.Insert leaflet and product





Instructions

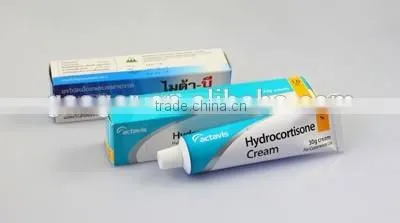

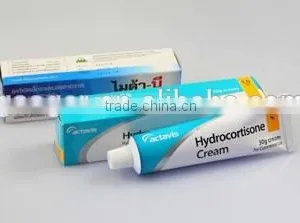

Cartoning machine is suitable for blister cartoning,bottle, pouchs and
injection,medicine,cosmetis,condom.food.,tube,ointment,wrapped products.The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine to form a production chain.

Feature:
1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2.Adopt human-machine operation system.
3.Automatically displaying device for trouble, speed and finished products counting.
4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5.No products not suction leaflet, no leaflet not suction carton .
6.Automatic detection and rejection device for lacking blister goods and leaflets.
7.Protecting automatically for overloading.
8.stable performance , operation is easy .


Option
Ink-jet printing system



Certificates
ISO9001:2008, CE, GMP



Parameters of ZHB-100 Automatic Cartoning Machine (for Bottles/Vials/Tube)



Cartooning speed 100 Boxes/min
Size of blister >40×35×35mm < 150×87×50mm
Size of bottle Min: diameter 25 height: 50 (mm)
Max: diameter 90 height: 150 (mm)
Quality of carton 250~350g/m2
Motor power 1.5 kw
Power supply Three Phases Four Wires 380V 50Hz (220V 60 Hz)
Air pressure and flow 0.5 Mpa >0.6m3/min
Air consumption ≥ 0.9 m3/h
Noise standard <85 dB
Size (L*W*H) 2800×1350×2000 (mm)
Weight 1200 Kg

































ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine

ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine  ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine



ZHB-100 Full Automatic Cartoner Machine,Cartoning MachineZHB-100 Full Automatic Cartoner Machine,Cartoning MachineZHB-100 Full Automatic Cartoner Machine,Cartoning MachineZHB-100 Full Automatic Cartoner Machine,Cartoning Machine







Our Service

1.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.



2.Clients Traning Services
We can train your staff to use our machine properly.It means that we offer Customers Training, teaching how to use the systems most efficiently and safely as well as how to maintain optimal operational productivity.



3.After Sales Service

We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide.Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.



Your satisfication is our persuit forever!





We Provide You With Sincerely Service, if you have interest,contact us NOW!!!



Tel:0086-577-63081586 FaxL0086-577-

Skype:aliceweng88    QQ: 758435953



 ZHB-100 Full Automatic Cartoner Machine,Cartoning Machine   Wechat: 0086-13567753599



 Whatsapp ID:   0086-13567753599
