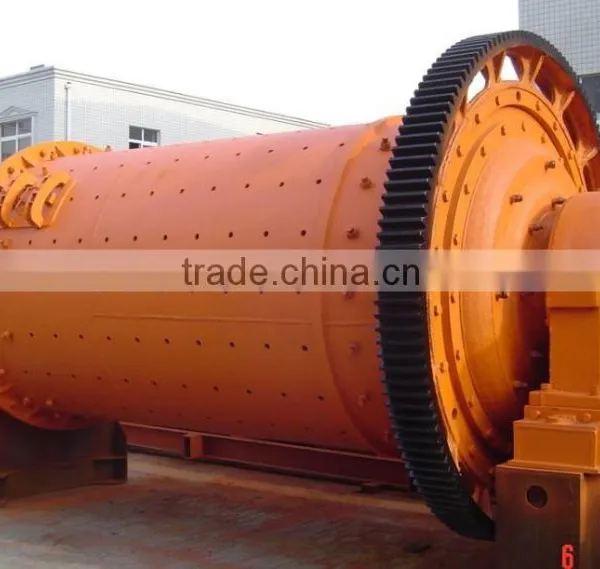

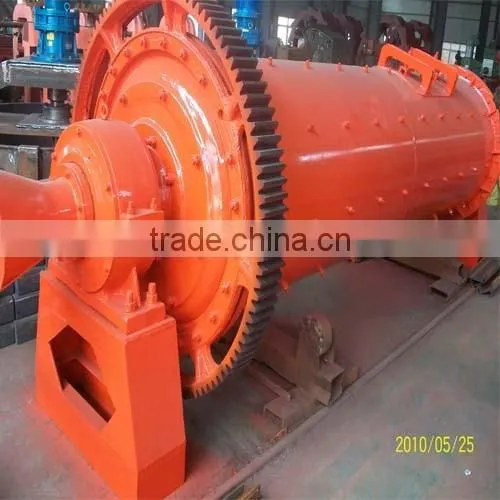

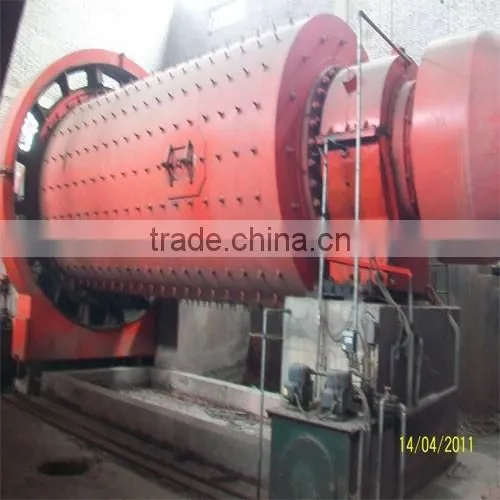

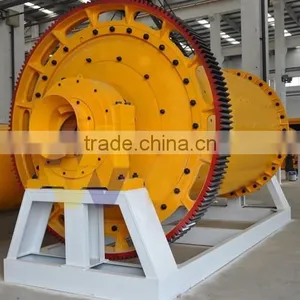

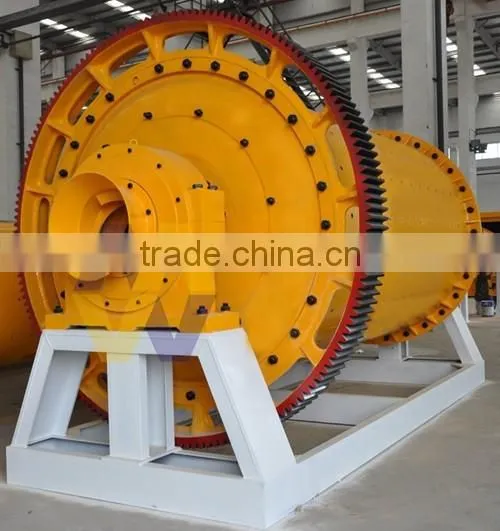

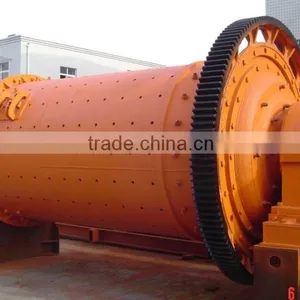

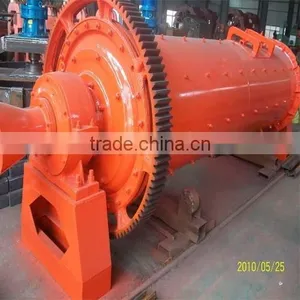

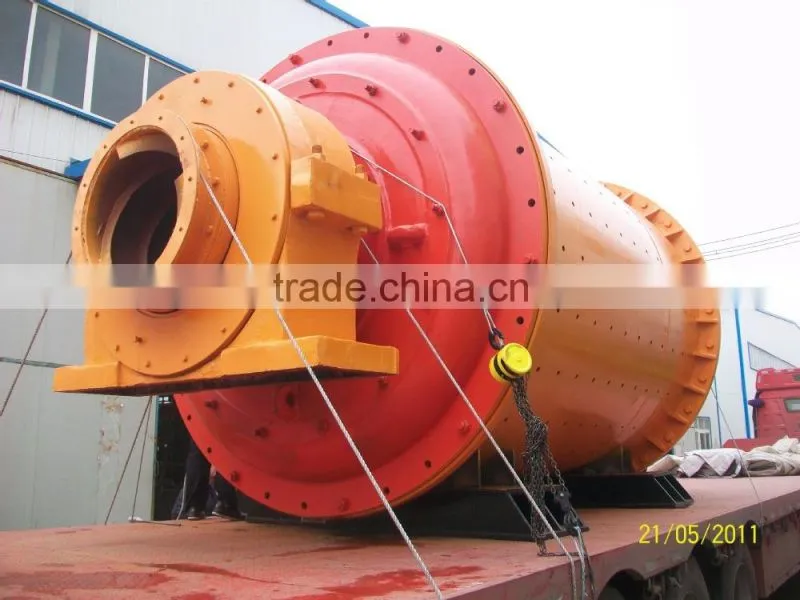

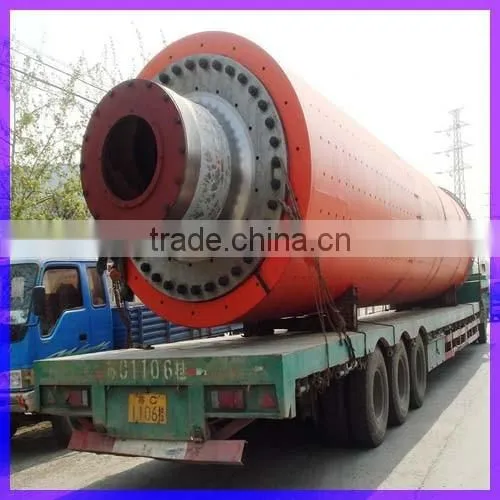

Ball Mill is the most commonly used grinding equipment. It is widely used in cement, silicate products, new building materials, refractory, fertilizer, non-ferrous metal, glass ceramic and other industries. Ball grinder mainly grind various ores and other grind-able materials. This type of ball grinder can be divided into dry grinding and wet grinding. Ball mills are mainly composed by the components of cylinder, driving big gear ring, end cap, bearing and so on. Ball Mill is a horizontal rotating device transmitted by the outer gear. There are ladder liner and ripple liner and different specifications of steel balls which are loaded according to different diameters and a certain proportion in the chamber. When processing, the materials are transferred to the grinding chamber through the quill shaft uniformly, the centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials into fine powder over a period of several hours. The ground materials are discharged through the discharging board thus the grinding process is finished.
|
The Classification of Ball Mill
Based on different grinding methods of adding water or not, ball mills are divided into dry type ball mill and wet type ball mill. In general, we use the wet type ball mill for the ore beneficiation.
The dry type ball mill is mainly used for producing powder type materials like coal powder.
The Ore Discharging Methods of Wet Type Ball Mill
Based on different ore discharging methods, ball mills are divided into grid shaped one and overflowing one. A grid shaped scale board is installed at the end cover of the grid shaped ball mill, which makes the qualified materials be discharged out of the ball mill through the scale board's gap. As for the overflowing ball mill, it discharges ores by adding water into the other end of the ball mill and once the water flows over the horizontal level of the ball mill's discharging end, the ore pulp will overflow out.
The Working Principle of Ball Mill
Energy saving ball mill machine is a horizontal cylindrical grid-shaped rotating device with the outer gear transmission, two positions. Materials pass through the feeding device into the first bin of the ball mill spirally and regularly via the hollow shaft. The first bin has ladder plate or corrugated plate inside which has installed steel balls with different specifications. The cylinder rotates and produces centrifugal force to raise the steel balls up and then to fall from a certain height, thus generating the force to impact and grind the materials. After the coarse grinding in the first bin, the materials enter into the second bin via the single deck bulkhead. This bin covered with a flat liner plate with steel balls inside will do further grinding of the materials. Powdery materials are discharged through the unloading grate board. This is the whole grinding procedure of ball mill machine or ball grinding machine.
The Advantages of Ball Mill
1. Large capacity and continuous operation
2. Big feeding port,strong wearproof ability
3. Barrel lining and grinding media can apply various abrasive materials
4. Even granularity of the finished products
5. High wearproof ability increase the service life
6. Adopting new-type bearings reduces the energy consumption
The ball mill is a common grinding machine used to grind all kinds of minerals and produce ore pulp. The ball mill grinder made by the Chinese ball mill manufacturers is applied in industries of cement production, refractory matter production and ceramics. Hongji Group is one of the top 5 ball mill manufacturers, if you are interested in the ball mills price and small ball mill for sale of our company, please leave us a message.

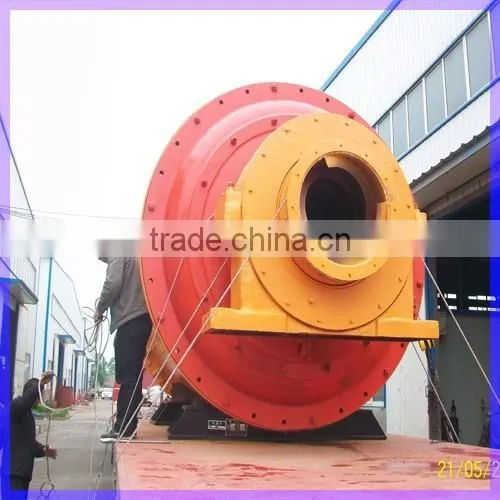

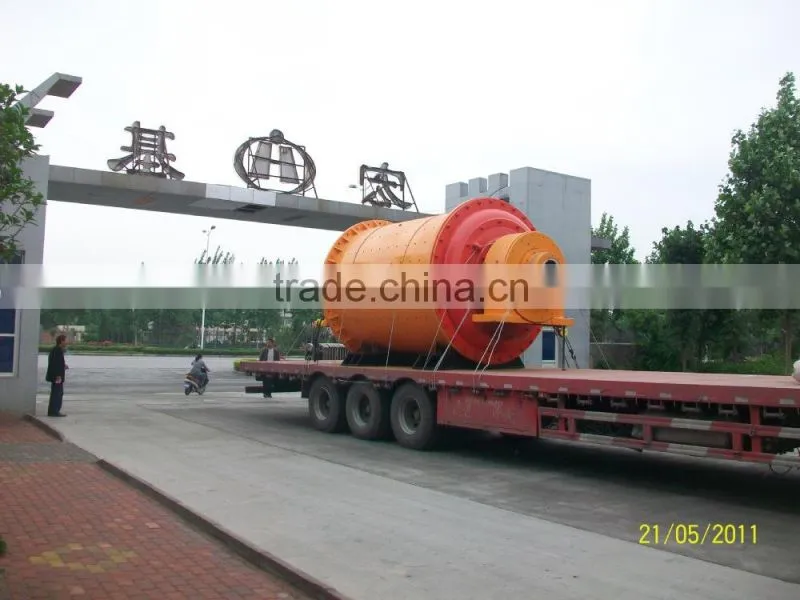

we will send our machinery to every where, which clients want to.
the after - sale service : 1 years after sales
Henan Hongji Mine Machinery Co., Ltd. is a reputed manufacturer and joint-stock enterprise with import & export rights and mainly produces large and medium-sized mining machinery, metallurgy machinery and building material equipment. We are founded in August 7th, 2008 by restructuring, setting up 4 branch companies and a research center. The history of our group can trace back to Zhengzhou Huaye Industrial Machinery Co., Ltd., which was established in 1969. After more than 40 years' development, we have built into a comprehensive enterprise that comprises R&D, test, manufacture, sales and service functions.
Our headquarters, covering 80,000 square meters, is located in the Mechanical Industrial Park of Zhengzhou City, where is in the transportation junction of central China, owning more than 180 sets of heavy processing equipment with an annul output of more than 800 sets of equipment. Our fixed asset is 80,000,000 RMB (more than 11,000,000 USD).
There are more than 880 employees, including 138 middle and senior engineers and more than 200 skilled workers in our company. We have been cooperating with domestic and foreign scientific research institutes for a long time and established a testing base with domestic and foreign techniques.
Product quality and service is considered as the life of our company.The company mainly manufactures Crushers,Mobile Crushers,Ball Mill,Sand machines,Dryer,Coal Gasifier, etc. All of our products have attained the certification of ISO9001:2000 qualify system. We have a group of superior experienced after-sales service members to guarantee the continuous smooth running of our products. Company has developed a variety of new type of mechanical equipment.In the fierce competition in the market formed their own characteristics and walking in the forefront of the industry.
Clients'trust is our forward power, their satisfaction is our struggling goal. Over the past decades, Hongji people have been innovating and transcending himself continuously to develop and promote the brand with quality and service. We, Hongji people, are forging ahead for first-class brand with innovative spirit and do our best to contribute to the world industry.We look forward to working with your sincere cooperation!.
|
|
