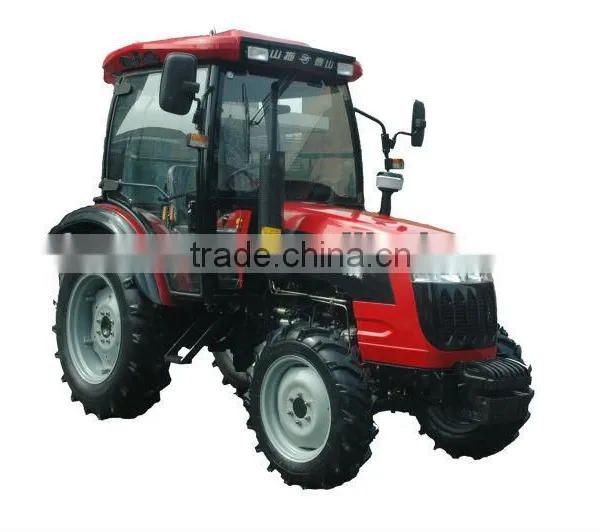

Mini Tractor Hot Sale

Mini Tractor Hot Sale thumbnail-1
Mini Tractor Hot Sale photo-1
US$ 2,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
Usage:
Farm Tractor
Contact Supplier Request Quote Chat Now
Weifang Runshine Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
Usage Farm Tractor
Drive Type Gear Drive
Certificate Other
Brand Name Runshine
Model Number RXTS-504
Place of Origin Shandong, China
After-sales Service Provided Overseas service center available

Specifications

Farm tractor 25-50hp
EEC approved,COC documents
RXTS-450,45hp,2WD,4WD,hydraulic steering,
can attach loader and backhoe eas

                                                               hot sale agricultural machinery farm  MINI tractor

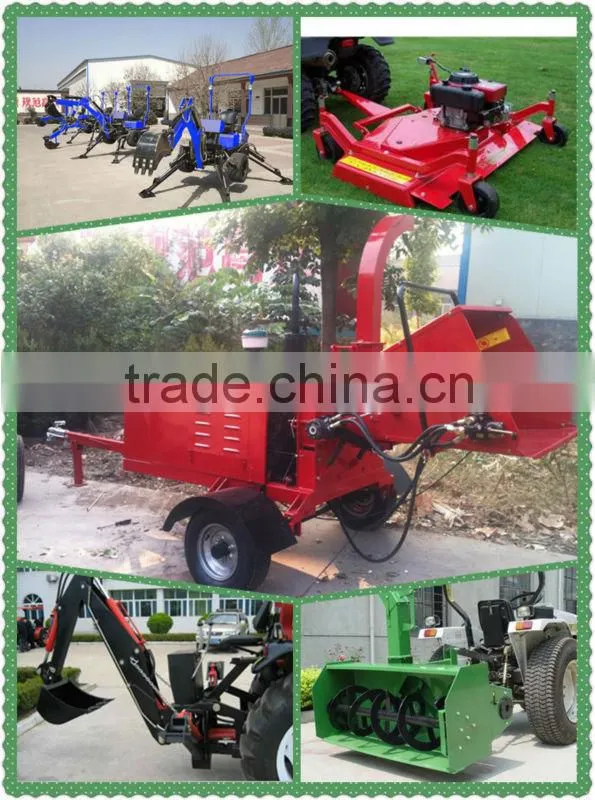

farm tractor with round baler ,potato harvester,disc plough u others machines.Q











Model TS500 TS504
General Specifications Type 4X2 4X4
Overall dimensions LxWxH(mm) 3829X1708X2200 3848X1708X2300
Constructional weight(kg) 1805 1960
Rated traction force(kN) 9.3 13.5
Wheel base(mm) 2044 2037
Front wheel tread(mm) 1270-1670(Adjustable) 1430-1630(Adjustable)
Rear wheel tread(mm) 1220-1620(Adjustable) 1220-1620(Adjustable)
Min.land clearance(mm) 420 370
Min.quality in use(kg) 1965 2040/2420
Front wheel tyre size 6.0-16 8.3-20
Rear wheel tyre size 12.4-28 12.4-28
Min.turning radius(mm)(Unilateral Nonbraking/Unilateral Braking) 4100/3400 4200/3500
Theoretical speed(km/h) Creeper Shuttle gear Creeper Shuttle gear
1 0.45 2.63 0.45 2.63
2 0.71 4.13 0.71 4.13
3 1.1 6.44 1.1 6.44
4 1.7 9.93 1.7 9.93
5   7.91   7.91
6   12.45   12.45
7   19.4   19.4
8   29.86   29.86
Reverse1 0.6   0.6
Reverse2 0.95   0.95
Reverse3 1.49   1.49
Reverse4 2.28   2.28
Engine Model FD495T4
Type Inline,Vertical,Water-cooling,Four-stroke
12 hours power(kw) 36.8(50HP)
Rated Speed(r/min) 2300
Fuel consumption(g/kw.h) ≤242
Max.torque(N.m) ≥195
Speed of Max.torque(r/min) ≤1600
BorexStroke(mm) φ95×118
Diesel Consumption(g/kW.h) ≤2.04
Starting mode Electric start
Break System Service Brake Mechanical,Wet,Disc
Parking Brake Locking footplate type
Transmission Clutch Dry,Single Piece,Double Acting,Constant Combining
Gear box 8 Forward gear,4 Reverse gear,Straight mesh sleeve shift,Additional equipment creeper, shuttle structure
Steering Hydraulic steering
Steering type Front wheel steering
Main Drive Spiral bevel gear
Differential Mechanism Pin-type,Two planet bevel gear,Closed
Final Drive Single stage,External,Planetary gear
Operating System Lifter tilling depth control Draft & position adjustable
Max.lifting capacity(kn) ≥8.3
Suspension type Postposition,Three-point,I category
Speed of P.T.O.(r/min) (540,1000),or (750,1000),or (540,750)
Type of P.T.O. Six splines
Traction Equipment Swing rod
Optional Disposition Front ballast,Rear ballast,Shuttle gear,Air brake,Sealed luxury cabin,air-conditioner,fan heater and No hydraulic output,JD 4100 engine







 mini tractor hot sale






 We can also provide Jinma tractors, various series!





JM-204(LL380EPA diesel engine, 4WD ,dual stage clutch ,hydraulic steering ,roll bar,canopy)

JM-254(Y385EPA diesel engine, 4WD, dual stage clutch ,hydraulic steering ,roll bar,canopy)

JM-304(LL480EPA diesel engine, 4WD,dual stage clutch ,hydraulic steering ,roll bar,canopy)

JM-354(4L22EPA diesel engine, 4WD,dual stage clutch ,hydraulic steering ,roll bar,canopy)

JM-454(C490AEPA diesel engine, 4WD,dual stage clutch ,hydraulic steering  ,hydraulic remote transmission ,roll bar,canopy)

JM-554(C490AEPA diesel engine, 4WD,dual stage clutch ,hydraulic steering  ,hydraulic remote transmission ,roll bar,canopy)

JM-604 (SL4105AEPA diesel engine, 4WD,dual stage clutch ,hydraulic steering,hydraulic remote transmission ,roll bar,canopy)

JM-804(R4105I diesel engine,80HP, 4WD, dual stage clutch, hydraulic steering,hydraulic remote transmission, roll bar and canopy)
