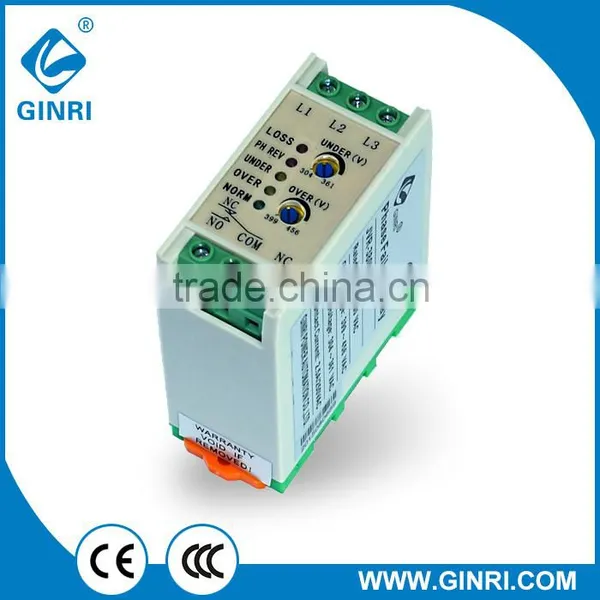

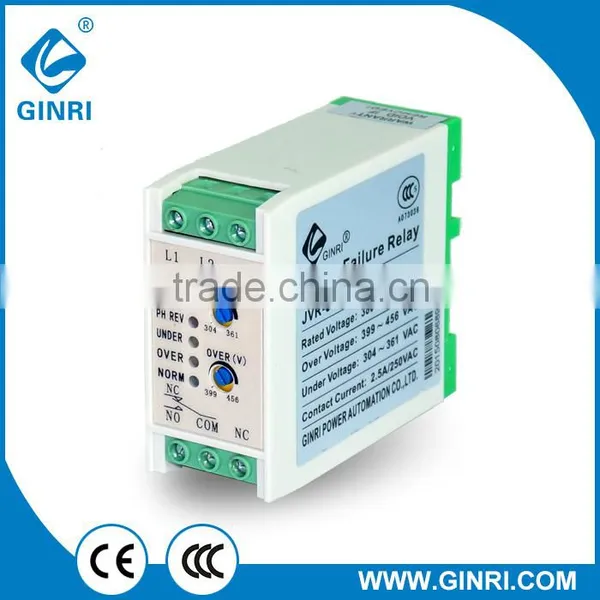

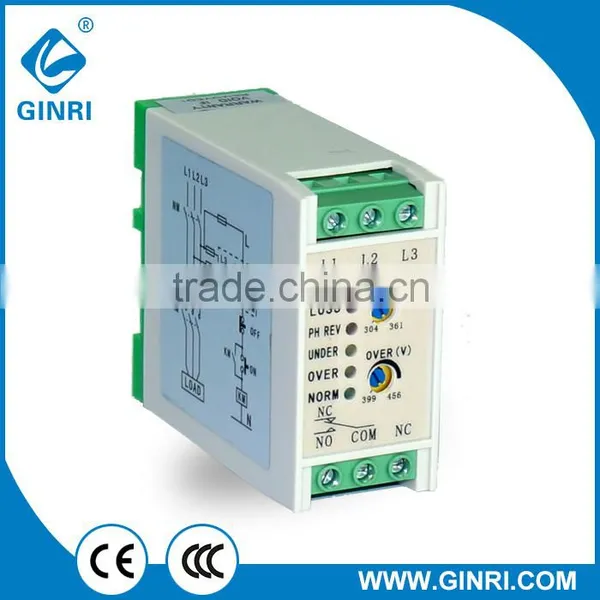

JVR-380W Adjustable Overvoltage/Undervoltage/Phase Failure /Sequence Relay

Name: JVR-380W Adjustable Overvoltage/Undervoltage/Phase Failure /Sequence Relay
Brand: GINRI
SKU: 107727299

JVR-380W Adjustable Overvoltage/Undervoltage/Phase Failure /Sequence Relay thumbnail-1

JVR-380W Adjustable Overvoltage/Undervoltage/Phase Failure /Sequence Relay thumbnail-2

JVR-380W Adjustable Overvoltage/Undervoltage/Phase Failure /Sequence Relay thumbnail-3

JVR-380W Adjustable Overvoltage/Undervoltage/Phase Failure /Sequence Relay photo-1

JVR-380W Adjustable Overvoltage/Undervoltage/Phase Failure /Sequence Relay photo-2

JVR-380W Adjustable Overvoltage/Undervoltage/Phase Failure /Sequence Relay photo-3

US$ 4.9 - 12 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GINRI

Model Number:

JVR-380W

Contact Supplier Request Quote Chat Now

Wenzhou Ginri Power Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GINRI

Model Number JVR-380W

Theory Voltage Relay

Usage Protective

Size Miniature

Protect Feature Sealed

Contact Load High Power

Three-phase Voltage Monitoring Relay

JVR-380W/JVR-440W/JVR-460W

♦ Features

-- Three-phase monitoring of phase sequence, phase loss, over- and undervoltage and phase unbalance

-- Adjustable over- and undervoltage threshold

-- Powered by the measuring circuit

-- 1 C/O contact

-- 5 LEDs for status indication

♦ Protective Functions

-- Phase sequence

-- Phase loss

-- Overvoltage

-- Undervoltage

-- Phase unbalance

♦ Typical Applications

• Pumps • Fans

• Blowers • Motors

• Compressors

♦ Approvals

• CE • CCC

♦ Technical data

Type	JVR-380W
Measuring circuit	L1,L2,L3
Rated voltage	220VAC,380VAC ,440VAC 460VAV,480VAC,50/60Hz
Monitoring functions	phase sequence, phase loss, overvolatege, undervoltage, phase unbalance
Voltage setting range	±5%~±20%
Indicators	phase sequence, phase loss, overvolatege, undervoltage, and normal
Output contacts	1 C/O
Contact capacity	3A ,250VAC
Dimensions (H x W x D)	68×30×76mm
Mounting	DIN rail
