Baoli 5t to 7t New Forklift

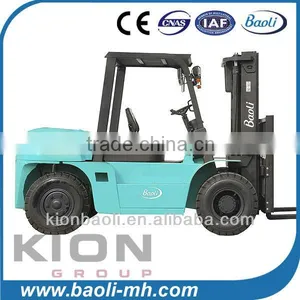

Baoli 5t to 7t New Forklift thumbnail-1
Baoli 5t to 7t New Forklift photo-1
US$ 10,000 - 40,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Baoli
Contact Supplier Request Quote Chat Now
KION Baoli (Jiangsu) Forklift Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name Baoli
Model Number CPCD50-70
Type Powered Pallet Truck
Power Souce Diesel Engine
Rated Loading Capacity 5000-7000kg
Max. Lifting Height 3000-6000mm
Min. Lifting Height 150mm
Fork Length 1070-2420mm
Fork Width 150mm
Overall Dimensions 3472-3592mm
Certification CE, ISO9001, ISO14001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1) Rated capacity (kg): 5000~7000
2) Max. lifting height (mm):3000~6000
3)Made at German standard
3)Certificate: ISO9001, CE

Baoli advantages and detailed specifications:

1) Rated capacity (kg): 5000~7000
2) Max. lifting height (mm):3000~6000
3)Made at German standard
3)Certificate: ISO9001, CE





Manufacturer   KION Baoli
Model   CPCD50 CPCD60 CPCD70
Power type   Diesel
Rated capacity kg 5000 6000 7000
Load center mm 500
Lift height mm 3000
Free lift height mm 205 210 215
Fork size mm 1200×150×55 1200×150×60 1200×150×65
Fork outside spread Min./Max. mm 300/1700
Mast tilt angle deg 6/12
Front overhang mm 622 627 632
  Length to fork face mm 3472 3592
Overall Overall width mm 1995
dimensions Mast lowered height mm 2500
  Mast extended height mm 4429
  Overhead guard height mm 2420
Turning radius mm 3300 3450
  Travel speed km/h 28/26
no load/full load Travel speed
  Lift speed mm/sec 550/370 500/330 500/320
Max. gradeability(no load/full load)   ≥20%
Max. drawbar pull KN >21
Service weight kg 8000 8640 9350
  Front   8.25-15-14PR
Tyre Rear   8.25-15-14PR
  Front mm 1470
Tread Rear mm 1700
Wheelbase mm 2250
Min.ground clearance Mast mm 200/160
(no load/full load) Frame 230/190
  Type   Hydraulic
Transmissions Shift FWD/BWD   2/2
Battery   V/AH 2-12V/80AH
Type Diesel engine
Model A-6BG1QC-02 MitsubishiS6S-T Zhaocai 6102BG6 Weifang R4105G32
Rated output( kw/rpm) 82.3/2000 67.6/2300 81/2500 59/2400
Rated torque (N.m/rpm) 416/1600 299/1600 353/1600 270/1600
No.of cylinder 6 6 6 4
Bore×stroke (mm) 105×125 94×120 102×118 105×125
Displacement (L) 6.494 4.996 5.785 4.33
Truck model CPCD50/60/70-W CPCD50/60/70-M CPCD50/60/70-C CPCD50/60/70-F

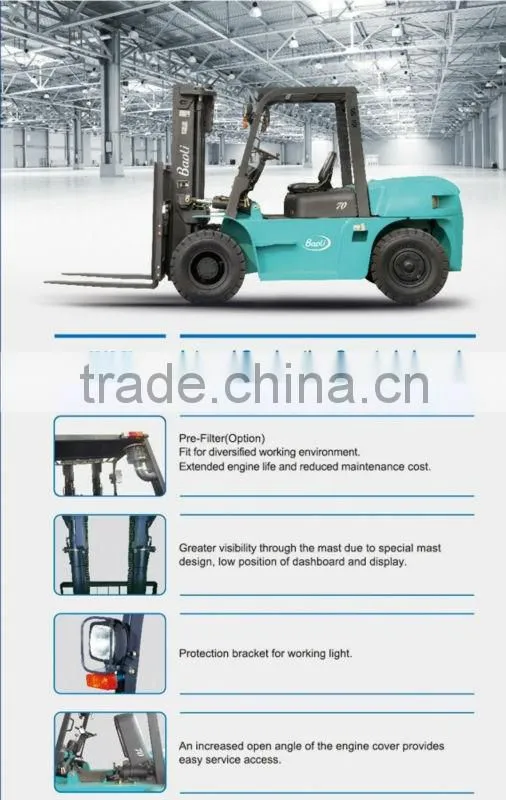

 Baoli 5t to 7t new forklift











About KION BAOLI:

KION Baoli develops, manufactures, distributes and services forklift trucks. As a brand of KION Group, Baoli focuses on the global economy market segment. Since 210 Baoli has been fully integrated and managed by KION Group. The Baoli factory located in Jingjiang(near Shanghai) manufactures a modern and complete electric, IC and warehousing truck range.

Baoli 5t to 7t new forklift

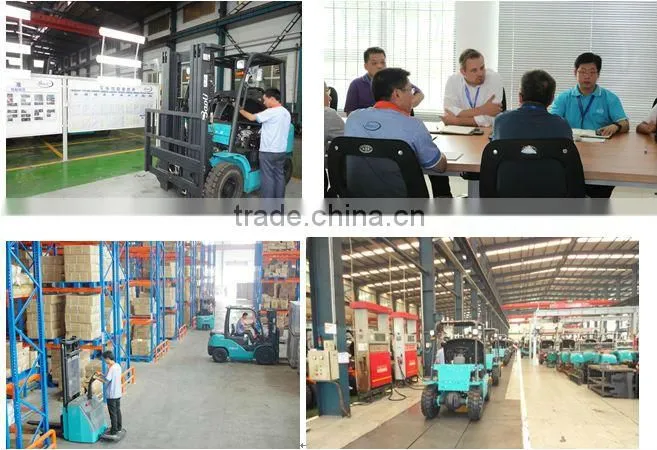

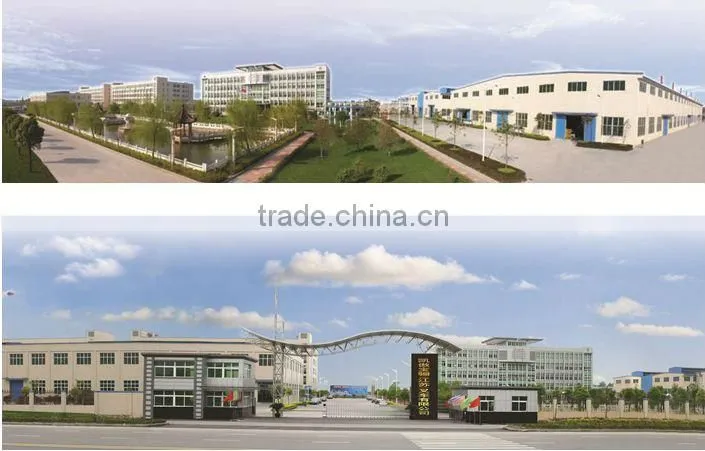

Factory Gallery:

Baoli 5t to 7t new forklift



Quality communications between Baoli and customers

Baoli 5t to 7t new forklift



Baoli at the exhibitions

Baoli 5t to 7t new forklift



Industry certificates:



Baoli 5t to 7t new forklift
