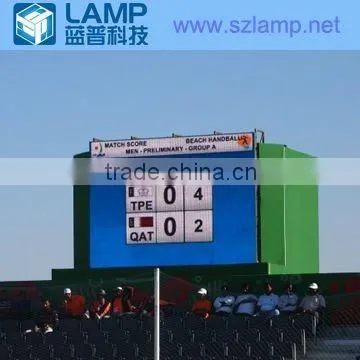

Outdoor Sports Score LED Screen Modular

Outdoor Sports Score LED Screen Modular thumbnail-1
Outdoor Sports Score LED Screen Modular photo-1
US$ 1 - 8,000 MOQ: 1 Square Meter
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
LAMP
Model Number:
12mm
Contact Supplier Request Quote Chat Now
Shenzhen Lamp Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name LAMP
Model Number 12mm
Usage Outdoor
Tube Chip Color Full Color
Display Function Video
Pixels Other
Screen Dimension according to customer's request

Shenzhen LAMP Technology has been recognized as one of the fastest growing since its foundation in 2004 in Shenzhen and now known as one of the leading manufacturers in China LED industry. As a manufacturer and engineering contractor, LAMP provides standard display products as well as custom-designed systems for large screen video displays and decorative & commercial lighting series. The acquirement of the ISO9001:2008 Quality Control System and certificates such as ETL, CE, RoHs, etc, has proved that LAMP runs under a strict and effective quality control system. Equipped with state-of-the-art equipment sourced from Germany and Japan, the newly established laboratory has also enhanced our quality test to a higher level.



 outdoor sports score LED screen modular

Pixel   Pitch: 6.25 mm 10 mm 12 mm 12.5 mm 16 mm 20 mm 25 mm 31.25 mm 37.5 mm
Pixel   Density: 25600 pixels/sqm 10000 pixels/sqm 6944 pixels/sqm 6400 pixels/sqm 3906 pixels/sqm 2500 pixels/sqm 1600 pixels/sqm 1024 pixels/sqm 711 pixels/sqm
Pixel   Configuration: SMD 3 in 1 1R1G1B 1R1G1B 2R1G1B 1R1G1B 1R1G1B 2R1G1B 4R2G2B 4R3G2B
Module   Dimension: 200*100 mm 160*160 mm 192*192 mm 200*200 mm 256*128 mm 320*160 mm 200*200 mm 250*250 mm 300*300 mm
Module   Resolution: 32*16 pixels 16*16 pixels 16*16 pixels 16*16 pixels 16*8 pixels 16*8 pixels 8*8 pixels 8*8 pixels 8*8 pixels
Cabinets   Dimension: 1200*600 mm 640*640 mm 768*768 mm 800*800 mm 1024*768 mm 1280*960 mm 1000*1000 mm 1000*1000 mm 1200*1200 mm
Cabinets   Resolution: 192*96 pixels 64*64 pixels 64*64 pixels 64*64 pixels 64*48 pixels 64*48 pixels 40*40 pixels 32*32 pixels 32*32 pixels
Brightness: 6000 cd/sqm 6800 cd/sqm 6800 cd/sqm 6400 cd/sqm 7500 cd/sqm 6000 cd/sqm 5000 cd/sqm 6000 cd/sqm 6000 cd/sqm
Best Viewing   Distance: > 7m > 10m > 12m > 12m > 16m > 20m > 25m > 32m > 38m
Average   Consumption: 800 W/sqm 400 W/sqm 350 W/sqm 430 W/sqm 450 W/sqm 320W/sqm 264 W/sqm 250 W/sqm 200 W/sqm
Max   Consumption: 1600 W/sqm 800 W/sqm 780 W/sqm 900 W/sqm 900 W/sqm 800 W/sqm 550 W/sqm 800 W/sqm 600 W/sqm
Viewing Angle: Horizontal   angle: 140 degree Horizontal angle: 120 degree
Vertical angle: 140 degree Vertical angle: 60 degree
Processing: 12 bit
Ingress   Protection: Front IP65; Rear IP54
Refresh Rate: 300 to 4800Hz
LED lifetime: 100,000 hours
Input   Voltage: 90 to 260VAC, 50/60Hz
Operation   Humidity: 10% to 99%





outdoor sports score LED screen modular







outdoor sports score LED screen modularoutdoor sports score LED screen modularoutdoor sports score LED screen modular
