Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > PP Woven Bag Making Machines-Circular Loom

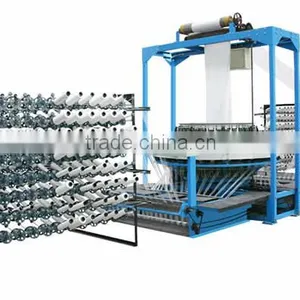

PP Woven Bag Making Machines-Circular Loom

Name: PP Woven Bag Making Machines-Circular Loom
Brand: Tianchen
SKU: 107776595

PP Woven Bag Making Machines-Circular Loom thumbnail-1

PP Woven Bag Making Machines-Circular Loom photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

Used

Year:

2012.05.30

Power:

6kw

Contact Supplier Request Quote Chat Now

Zhejiang Tianfeng Plastic Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition Used

Year 2012.05.30

Power 6kw

Place of Origin Zhejiang, China

Brand Name Tianchen

Model Number S-YZJ-8/2200

Driven Type Other, AC motor

Packaging Material Plastic

Packaging Type Other, wooden case

Automatic Grade Other, auomtaic

Specifications

The circular loom can make woven bag for cement, flour, jumb bag, FIBC woven bag

Plastic Circular Loom

The machine is a kind of equipment to produce circular cylinder woven of PP or PE plastic flat yarn. The 4-shuttle and 6-shuttle circular loom can weave woven bags of all specification

1.The cam driving unit has been optimum designed and created to ensure long time running and less electrical and spare parts consumption.
2.World top advanced weft detecting system is extracted to increase to auto running and effective of the machine and also rejects can be reduced by the same.
3.Advanced weft detecting system is used to reduce the rejects and seconds.
4.Advanced synchronous electrical control system for main motor and hauling off unit is adopted to ensure the fine smooth and flat weaving performance.

Model	S-YZJ-850/6S
Number of shuttle	6 pcs
Speed of main shaft (rpm)	100-180r/min
Production Capacity(10x10)	1.8-2.55m/min
Working width/double flat(mm)	350∼850mm
Number of warp tape	720
Inside diameter and length of core	Φ30∼38×230mm
Weft bobbin diameter	Max.Φ115mm
Power of main motor	3Kw
Dimensions (L×W×H)	9000x2410x3100(mm)
Weight	2000kg

Our company, Zhejiang Tianfeng Plastic Machinery Plant can supply plastic six-shuttle Circular loom, plastic four-shuttle circular loom, plastic eight shuttle circular loom, plastic mesh bag circular loom, plastic leno bag circular loom, plastic container bag circular loom, plastic cement bag circular loom, plastic flour bag circular loom, plastic fertilizer bag circular loom, plastic rice bag circular loom.
