Specifications
*.soft cushion*.accurate pressure
*.visible compression
*.high transparency
*.radial artery rotating compression device
the features of tourniquet(radial artery rotation compression devjce )
Product Features
- Compression pad made of special material, dedicated to patient’s comfort.
- Transparent design for precise operation.
- Homeostasis achieved easily with pressure indicator, tissue damage avoided.
- Dynamic wrist plate makes procedure more efficient
Intended Use
This is a compression device to assist homeostasis of the radial artery after a transradial procedure.
Instruction
- After the punctural operation is completed, pull the sheath out for 2-3cm; in the meantime; make sure no vasospasm occurs. If vasospasm is evident, it should be treated before the homeostasis procedure begins.

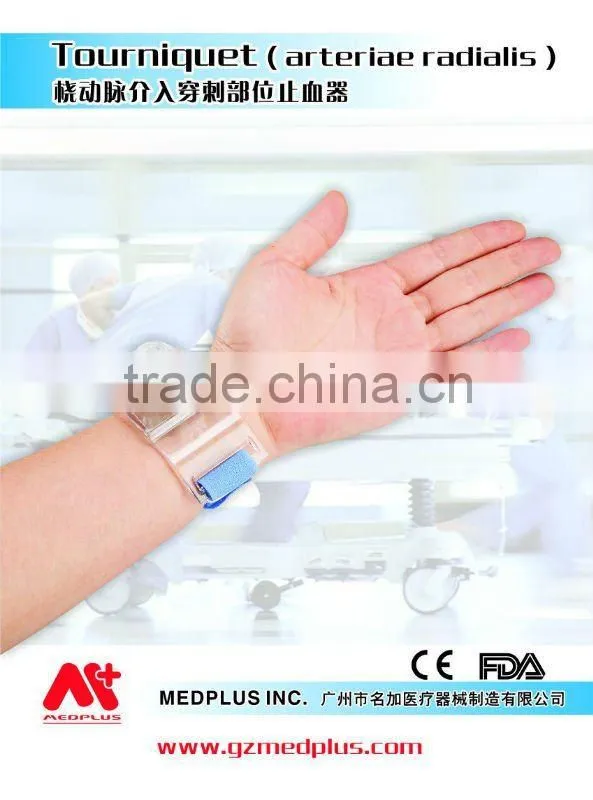

- Align the front edge of the compression pad with puncture point, the apply the device to the patient.
Caution: This device should be positioned differently when used on different hands (left or right) of the patient. When attaching the device, the strap slot should be located on the same side of the patient’s little finger.
- Insert the Velcro band into the strap slot on the wrist plate; keep the top of the pressure indicator leveled with turn cap; affix the Velcro band firmly.
- Rotate the turn cap following the arrow indicating direction, tighten the turn cap clockwise by three to five laps, the green pressure zone (100-200mmHg) represents safe pressure area; if the indicator is over the midline of the green zone, the pressure indicates approximately 150mmHg; keep rotating to yellow pressure zone (200-250mmHg), it suggests excessive pressure, then the device will lock up for protection from tissue damage.
Note: the choice of haemostatic pressure depends on individual condition. Complete the operation and check the bleeding status, confirm that the radial artery and ulnar artery pulses to avoid tissue ischemic necrosis. Checking methods are as follows: 1.Pressing patient’s thumb or index finger to see if the blood quickly filled in pressed area, check whether the radial artery runs well or not; 2.The thumb arterial pulse can be felt.
- When removing the sheath, compress both ends of wrist plate to yield a small space allowing the sheath to be pulled out without damaging the tissues, the pressure should be referred to the position of the green pressure indicator.
Caution: 1.During extraction, the pressure should be remaining to the level when there is no bleeding accured; the pressure indicator should not be exceeding the top yellow zone; 2. after the sheath removed, the wrist plate should be released swiftly to avoid unexpected bleeding.
- After appropriate time (depending on the dosage of HEPARIN given), decompress the device by turning turn cap 1/2 to 1 full counter-clockwise circle every 45minutes to 1 hour. If the bleeding re-occurs, apply compression until haemostasis is achieved and repeat above steps.
- When haemostats is completed, rotating the turn cap counter clockwise, remove the tourniquet; confirm no bleeding on the puncture site and cover the puncture site dressing.
Note: Avoid upper limb motion in 2 hours after operation. Constrain motion of the wrist joint for 4-6 hours.
Company profile:
Medplus Inc. was founded in August 2006. Since the company was founded, Medplus Inc. has stood for integrity, derived from morality and driven by duty. We aim for sale products and strive for consistent quality. We actively participate in the global market, and strive to gain the trust and respect of our customers. We mainly use polymeric materials, and are engaged in the development, manufacture, distribution and sale of disposable medical devices in domestic and international markets.
Main Business
- skin marker
- biopsy kits (needle): [irremovable semi-automatic biopsy needle, removable semi-automatic biopsy needle and biopsy needle which match Bard Magnum Gun]
- anesthesia breathing bag
- breathing circuit (corrugated circuit, collapsible circuit ,coaxial circuit ,and collapsible circuit limb)
- anesthesia mask
- endoscopy mask
- check valve
- tourniquet (radial artery compression device )
- loss of resistance syringe
- suction liner
Certifications:
We attained Quality System Certification for the ISO13485 and ISO9001, FDA and CE Certification in 2007. As a new enterprise, Medplus cooperates with a lot of well known medical device manufacturers and offers high quality and advanced medical products all over the world.
