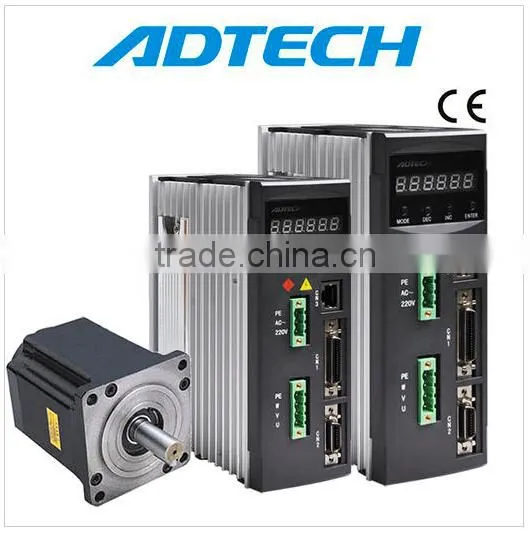

Low Interia 400watt 3phase AC Servo Motor WE

Name: Low Interia 400watt 3phase AC Servo Motor WE
Brand: ADTECH
SKU: 107842975

US$ 100.00 - 100.00 MOQ: 1 Unit

Key Specifications

Brand Name:

ADTECH

Model Number:

ACH-06040DC

Frequency:

50HZ

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Brand Name ADTECH

Model Number ACH-06040DC

Frequency 50HZ

Output Power 400W

Protect Feature Waterproof

Phase Three-phase

Certification CE, ROHS

AC Voltage 208-230 / 240 V

Place of Origin Guangdong, China

Efficiency Other

Model	ACH-06040DC
Rated Powr(watt)	400
Rated torque(N.m)	1.27
Peak torque(N.m)	3.82
Rated line current (A)	1.5
Rated line voltage (V)	60
Rotor inertia (Kg.m2×10-4)	0.467
Coder line number (PPR)	2500
Suitable drive model	QS7AA020M
Weight (Kg)	1.2
Insulation grade	B
Rating	Continuous
Installation mode	60mmX60mm
Installation mode	None
Ambient temperature and humidity	Environment temperature: -20°C ~+50°C; relative humidity: <90% (no condensing)

Model	QS7AA020M
Input Voltage	AC220+/-10%V
Driver current	20A
Matching motor	400watt,750watt,1000watt
Using Temperature	Work:45degree Storage:-40degree~55degree
Relative Humidity	40%~80% with no condensation
Atmosphere	86-106kpa
Control Mode	1.Position control 2.JOG control 3.Speed control 4.Torque control 5.Position and speed control etc.
Control Mode
Pulse Command	1.Pulse+ Direction 2.CW + CCW Pulse 3. Two-phase AB orthogonal pulses
Pulse Command
Control Precision	0.01%
Response Frequency	≤200Hz
Pulse Frequency	≤500kHz
Speed Ratio	1:5000
Regenerative Brake	Internally Installed
Electronic Gear	1/30000~30000/1
Overload Capacity	≤300%
Feedback Pulse	2500p/r, Frequency division can be set arbitrary within 0-128
Feedback Pulse
Display Function	Speed, current, torque,position, the position deviation,pulses No., the pulse frequency etc.
Display Function
Protection Function	Over speed, over current, overvoltage, under voltage, overload, super bad, encoder fault, the temperature is too high, the internal chip failure,etc.
