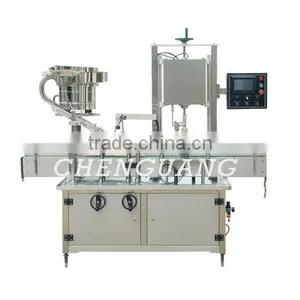

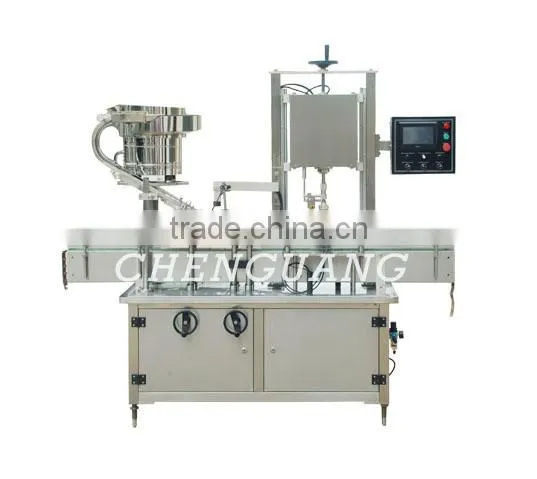

Help CenterFXZ-1C Round/ Square/ Flat Bottle Automatic Screw Capping Machine
Related Products
-
Automatic Plastic Lid Bottle Capping MachineUS$ 1 - 20,000MOQ: 1 Set -
FXG-B Automatic Aluminum Capping MachineUS$ 1 - 15,000MOQ: 1 Set
-
Semi-automatic Automatic Plastic Cap Screwing MachineUS$ 1 - 10,000MOQ: 1 Set
-
Customer Designed Large Bottle Cap Lid Screwing Capping MachineUS$ 1 - 15,000MOQ: 1 Set
-
FXG-B Automatic One Head Metal Cap Closing Machine Capping MachineUS$ 1 - 15,000MOQ: 1 Set
Main performance & Characteristics:
- Use PLC programmable system, pneumatic control system and color touch screen to form the control center, can random adjusting capping speed.
- Machine includes itself cap sorter, no need to equip one more cap sorter machine, much help cost saving.
- Machine use stainless steel (316/ 304) for excellent durability and sanitation compliance, the whole machine designed according to GMP standard, easily to disassemble and clean.
- Machine adopting world famous brand electrical elements to ensure the quality and stability.
- No need to change any components, easy to realize changing the cap types by simple adjusting.
Technical Parameters: | |
Capping Wheel |
One wheel |
Suitable cap diameter |
28mm ~ 72mm (capping wheel is made to order) |
Suitable bottle diameter |
40mm ~ 96mm |
Capping speed |
3,000 bottles/ hour |
Working Voltage |
220V/ 380V AC (Or according to customer voltage requirement) |
Power |
0.75KW |
Air Pressure |
0.55~0.65Mpa |
Material |
Stainless Steel 316 & 304 (upon request) |
Dimension |
(L) 1000mm x (W) 1000mm x (H) 900mm |
Weight |
200 Kg |
Country Origin |
China |
Application for:
Electical parts:
- PLC control system: Mitsubishi/ Japan
- Touch screen: TouchWin color screen/ Canada
- Solenoid valve: AIRTAK/ Taiwan
- Cylinder: AIRTAK/ Taiwan
- Air source treatment: AIRTAK/ Taiwan
- Electro-optical system: Omron/ Japan
- Main Electrical elements adopt international famous brand
1. Technicial guidance;
2. Able to provide video for debugging;
3. Pre-maintance;
4. Quality guarantee for 1 year. Able to send engineer to dubug/ maintance. (Hotel & delivery fee paid by customer);
5. You are welcome to share us the sample to test machine;
