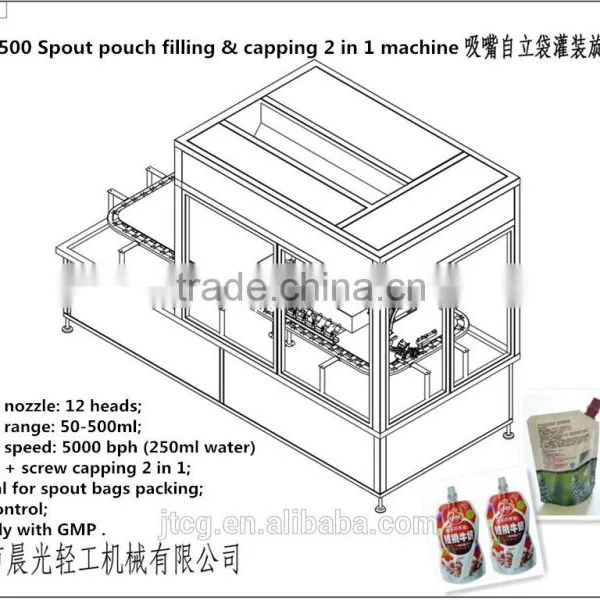

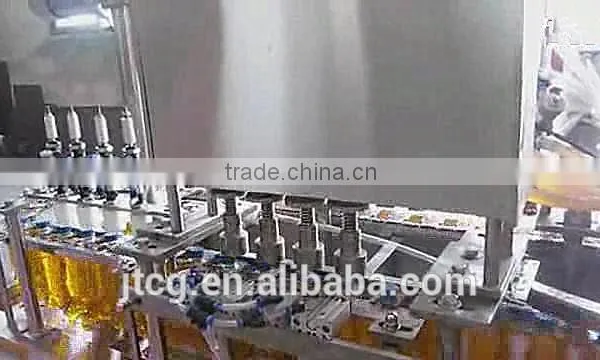

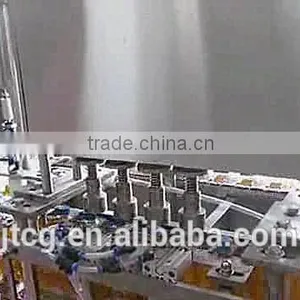

Automatic Spout Pouch filling & capping machine
1.Brief introduction

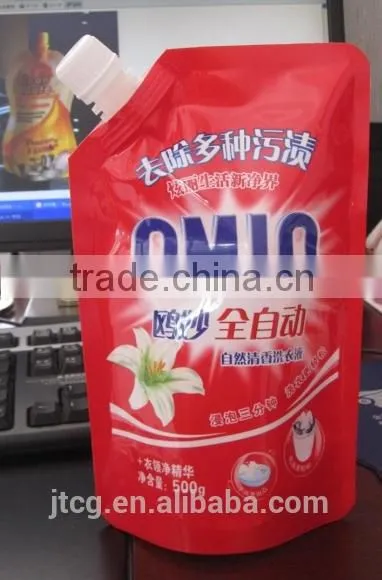

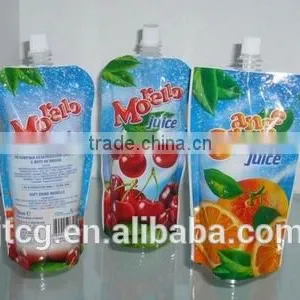

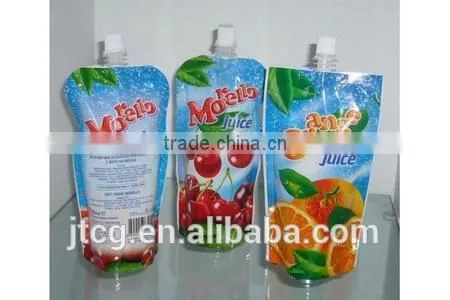

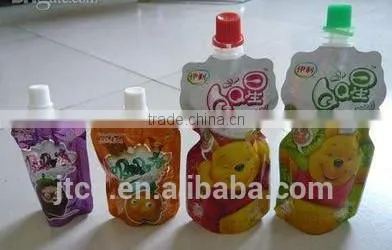

This machine is to fill and cap spouted stand-up pouch with beverage, juice, oil, seasoning, jam, detergent, cosmetics and other liquid or paste alike.
2.Technical parameter:
Model |
XZD-12-500 |
Packing Speed |
approx 5000 bph (250ml water) |
Filling volume |
50 ml - 500 ml |
Power using |
3 phase 4 lines (380V50HZ) |
Motor power |
1.75kw |
Air pressure using |
0.5-0.7Mpa |
Max air consumption |
0.45m3/min (external link air source) |
|
Weight
|
1000kg |
3.Main characteristic:
1. The filling machine adopts servo ball-screw system to drive the piston cyclinder, which can fill high viscosity material, such as Shampoo, Oil, Sauce, Ketchp, Honey, Lubricant oil, etc.
2. Manually give bags, Automatic filling, caps loading, feeding, screw capping and products diacharge, in order to save man power and reduce cost.
3. High efficiency, dozens of pouches can be filled and capped at the same time.
4. Revision device of photoelectric sensors are installed in the machine. if cap jam in the machine, it can timely alert operator to inspect and adjust the equipment in order to avoid waste.
5. PLC control system and touch screen, easy operate.
6. According to customer’s demand, filling volume and speed can be sellected with different cylinder size and filling nozzles number.
4. Suitable Products:
Outside: Standard Export Wooden Case Pack
Inner: Stretch Film
- Technical guidance & Pre-maintain Able to send engineer to maintain. (Hotel & delivery fee paid by customer);
- 1 year quality warranty and supply more set wearing parts;
- 24 hours/ 365 days online technical service;
- Welcome to send samples for testing.
.
Company Profile
Jintan Chenguang Light-Industry Machinery was founded in 1996, which is a high-tech company focusing on R&D and producing packaging machinery.
The company is located in Jintan, Jiangsu Province, Yangtze River Delta. To the east lies Shanghai; to the west Nanjing. It takes about an hour to reach Changzhou railway station or Nanjing airport. Our company covers an area of 18,000 m² and building area 8,456 m² with registration capital of RMB6,000,000. The main products are brand "JING JIU" series filling machine, capping machine, labeling machine, pouch packaging line and related auxiliary equipments such as the bottle unscramble, bottle feeder, cap sender, cap sorter, packing table, etc. Many techniques have obtained Chinese Patents. Company's products have been purchased by more than 20 provinces, 600 clients home and abroad. Due to convincing quality and excellent service, our company enjoys a high requtation in this field.
Because our company has been sticking to the Technological innovation and relying on many colleges and institutes, we possess a series of independent intellectual property rights products and techniques. So far, the company has developed eight patent new products, won eighteen National Patent, and has two High-tech products in Jingsu Province. As early as 2003 the company was rated as "high-tech enterprises", in 2013, we earned the award of "China 10 outstanding manufacturer of in-household care products industry". Apart from the innovation, we also lay emphasis on inner management as well as brand construction. At present, our company has passed ISO9001 & ISO14000. Since 2002, JINGJIU has been awarded famous-brand products in Jiangsu Province for eleven years in a row. In 2013, JINGJIU was awarded Well-know trademarks of Changzhou City.
Welcome to visit Chenguang to create our prosperous future all together.
