Home > Packaging & Printing > Packing Machinery > Filling Machine > 20ml-250L(20-100ml,50-500ml,100-1000ml,1-5L,5-30L,50-250L) Automatic Cooking Oil Fillling Machine
20ml-250L(20-100ml,50-500ml,100-1000ml,1-5L,5-30L,50-250L) Automatic Cooking Oil Fillling Machine
US$ 10,000 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Food, Commodity, Medical, Chemical
Packaging Type:
Cans, Bottles, Barrel
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1L- 250L(1-5L,5-30L,50-250L) Automatic Bucket Oil Filling MachineUS$ 10,000 - 40,000MOQ: 1 Set -
100-1000ml Automatic Bottle Lotion Filling Machine Made in ChinaUS$ 14,000 - 20,000MOQ: 1 Set
-
CCG-6 Automatic Injection Filling MachineUS$ 12,000 - 20,000MOQ: 1 Set
-
CDP-24S (Double Rows) In-line Liquid Filling MachineUS$ 19,000 - 30,000MOQ: 1 Set
-
CDP-1W-250L Weighing Filling MachineUS$ 8,000 - 15,000MOQ: 1 Set
Condition
New
Application
Food, Commodity, Medical, Chemical
Packaging Type
Cans, Bottles, Barrel
Packaging Material
Plastic, Metal, Glass
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220/380V
Power
1-4KW
Place of Origin
Jiangsu, China
Brand Name
JINGJIU
Model Number
several models
Dimension(L*W*H)
please contact me
Weight
please contact me
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
oil fillling machineflowmeter or piston filling
high filling speed& filling precision
filling cooking oil,motor oil,olive oi
More information please login onto our website.
There are several models for different filling capacity. These oil filling machine aslo can filling shampoo,lotion,pesticides,and other high-viscous liquid.
The machines use PLC control system, famous brand electrical elements, SUS304 and high quality 316. They have high filling accuracy,superior speed.And, we have excellent competitive prices.

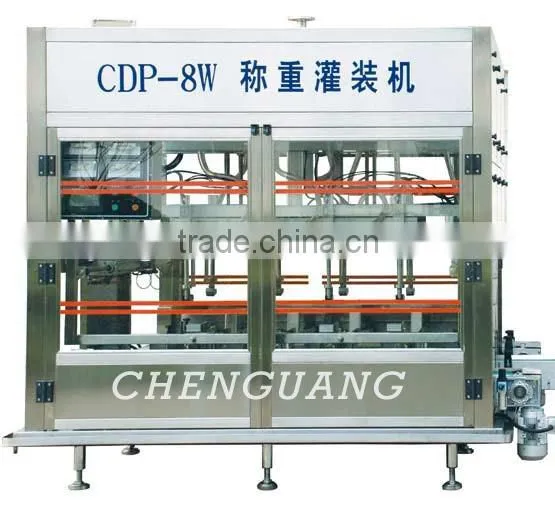

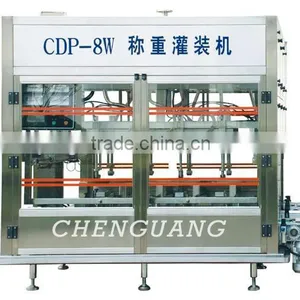

| Item No | CCG500-8 Automatic Piston Filling Machine | CCG1000-10 Automatic Piston Filling Machine | CDP- 8W-25L weighting & Filling Machine | CLWG-8B Weighting & Filling Machine | CDP- 1W-250L weighting & Filling Machine |
| Overall Size | 2000 ×1000 × 2200mm | 2000×1000× 2200mm | 2500×2450 × 2500mm | 2400 ×1200 × 2200mm | 600 ×800× 2800mm |
| Filling Head | 8 (4/6/8/10/12/16 heads can be selected) | 10 (4//6/8/10/12 heads can be selected) | 8 (4 heads can be selected ) | 8 heads (4//6/8/10/12 heads can be selected) | 1 |
| Application | Bottle dia 60-180mm | bottle dia 50-110mm | L (180-300) × W (120-250)×H(280-450)mm | bottle diameter:40-100mm | 50-250L barrel shape(Max. dia 600mm) |
| Filling Capacity | 50-500ml | 100-1000ml | 5-25L | 500-5000ml | 50-250L |
| Application | viscous liquid,ex. All kinds of oil,soy sauce, shampoo,pesticide, lotion,etc. | ||||
| Filling speed | about 4000bph | about 3600bph | 400-800 barrels / hour (take 5L as an exaple) | about 3000 bph | about 20 barrels / hour (take 250L as an exaple) |
| Measure Precision | ±1% | about ±1% | about ±0.03% | about ±0.03% | about ±0.03% |
| Voltage | 380V/220V | 380V/220V | 380V/220V | 380V/220V | 380V/220V |
| Power | 1.5 Kw | 1Kw | 4 Kw | 2.5 Kw | 1.5 Kw |
| Air-consuming | 0.55-0.65MPA | 0.55-0.65MPA | 0.55-0.65MPA | 0.6MPA | 0.6MPA |
| Weight | 500 kg | 600 kg | 800 kg | 500 kg | 300 kg |
| Feature | 1.mitsubishi PLC,colors creen,eco-friendly frame 2.filling blocker (prevent leaking ,dropping and drawing) ,can diving filling ( this function should be selected) 3.No need to change any components, easy to realize changing the bottle types by simple adjusting 4.international famous brand electical elements, PTEF hose, SUS 304/316 5.Counting detection& filling detection,real-time alarm |
||||
| piston filling way | intelligent weighing feedback system to realize the real unmanned debugging to ensure much more precise filling | ||||
| can carry out special configuration according to customers’ requirements (material airtight , heating, sterilizing etc) |
Conveying design-Adopts rollway conveying model, saving time and labor | ||||
