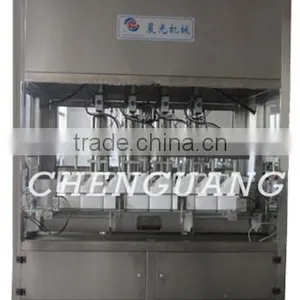

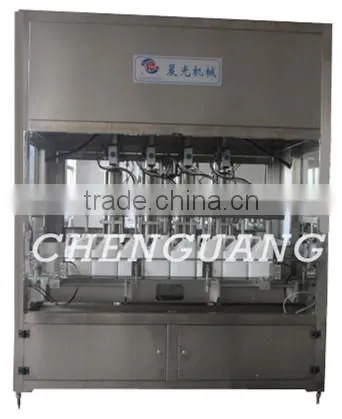

Help CenterFactory Price - Motor Oil Automatic Filling Machine CCG5000-8B
Related Products
-
Hot Sale 5L ~ 30L Drum & Barrel Weighing Filling MachineUS$ 23,000 - 40,000MOQ: 1 Set -
Automatic Acid Liquid Filling Machine CDP-12BUS$ 1,000 - 15,000MOQ: 1 Set
-
Cream, Honey, Body Lotion, Detergent Tabletop Pison Filler CCG1000-1/ CCG1000-2US$ 1,000 - 3,000MOQ: 2 Sets
-
Semi-Auto 100ml - 1000ml Inline Viscosity Material Bottling MachineUS$ 5,000 - 8,000MOQ: 1 Set
-
5L- 25L Chemical Drum & Barrel Liquid Filling MachineUS$ 8,000 - 12,000MOQ: 1 Set
Features:
1. Control system - with Schneider PLC control system, filling dose of random fine-tuning.
2. Operation Interface - 7-inch color touch-style user interface, intuitive and simple, safe and reliable

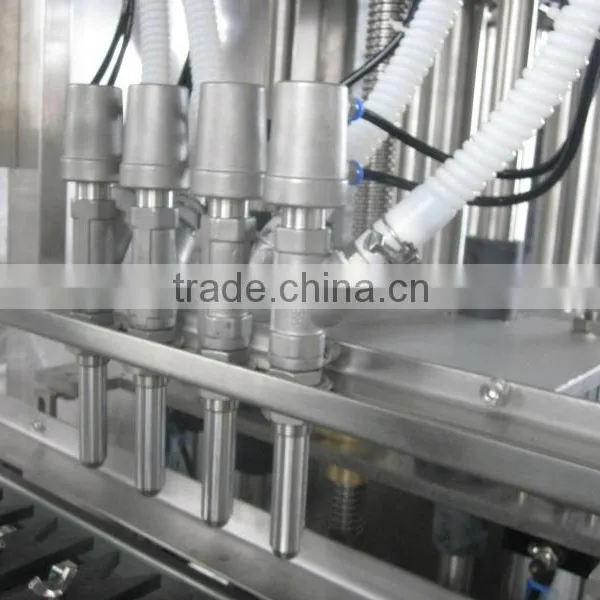

3. Feature Enhancements - Cutting with anti-drip device, can dive filling materials with functional properties. (This feature can be optional)
4. Electrical components - internationally famous brands, ensuring that equipment reliability, high accuracy;

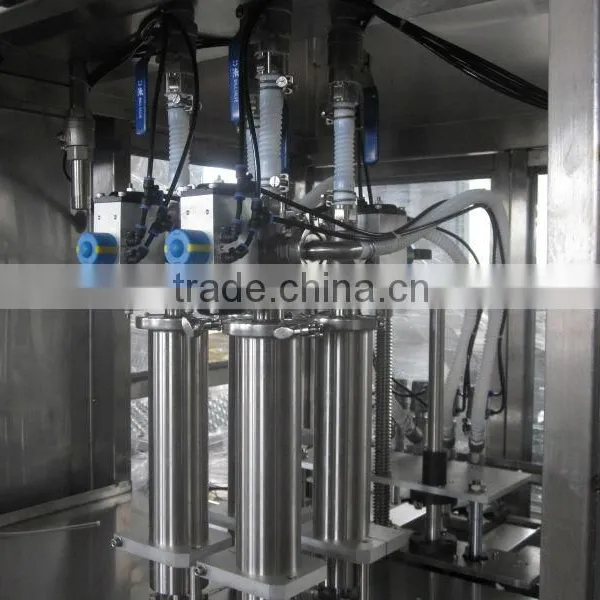

5. Mechanical components - high quality, parts contacts to material made of non-toxic corrosion 316 stainless steel and PTFE hoses. Other machin parts are of high quality 304 stainless steel.
6. Count testing - real-time count, to reflect on the work output directly.
7. Filling Detection - No bottle no filling,
8. Filling Macine Maintenance situations - the machine meets the GMP requirements, easy disassembly, cleaning maintenance.
9. manual bottle filling machine Exchange standard - filling specifications change, simply adjust, easy to get.
10. Environmentally friendly configuration - configuration of the environmental framework in which the machine's operating environment more hygienic.
Technical Parameters:
Filling Nozzles |
: 8 heads (can be selected more according to production requirements) |
Filling Volume |
: 500ml ~5L |
Filling Speed |
: 900 - 1500 bottles / hour (1L water) Filling speed will be up and down base on actual material and contain opening size. |
Voltage |
: 3 phase 4 wire, 220V/380V |
Power |
: 1Kw |
Working Air Pressure |
: 0.55-0.65Mpa |
Air Consumption |
: 0.6 ~ 0.9 m3/min |
Precision |
: ≤±1% |
Dimension |
: (L) 2000mm x (W) 800mm x (H) 2200mm |
Weight |
: 700 Kg |
Suitable Products:
Outside: Standard Export Wooden Case Pack
Inner: Stretch Film
- Technicial guidance & pre-maintain;
- Quality guarantee for 1 year;
- Able to send engineer to install. (Hotel & delivery fee paid by customer);
