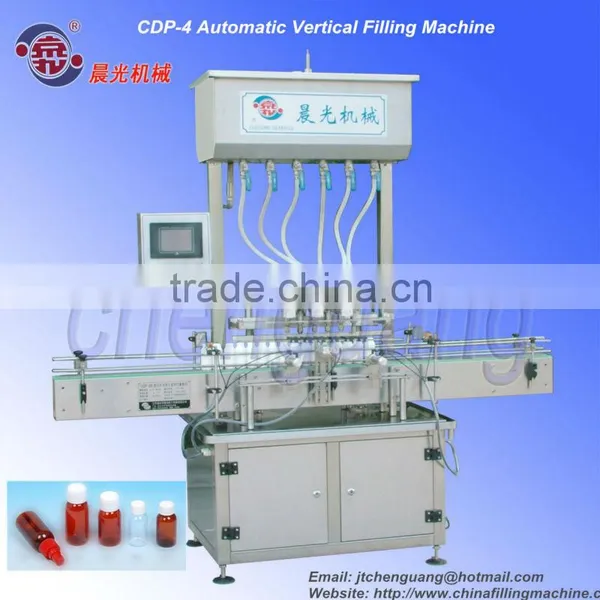

Help CenterCDP-4 Automatic Vertical Filling Machine
Related Products
-
24 Heads Bottle Chemical Liquid Filling MachineNegotiableMOQ: 1 Set -
5-25L Automatic Viscous Liquid Packing Machine(weight Feedback,oil,flavoring,lotion,pesticides,etc)US$ 30,000 - 35,000MOQ: 1 Set
-
200-1000ml Automatic Soy Sauce Filling MachineUS$ 14,000 - 20,000MOQ: 1 Set
-
CDP-4 Automatic Liquid FillerNegotiableMOQ: 1 Set
-
CDP-1W-250L Filiing Machine(Weighing)US$ 10,000 - 12,000MOQ: 1 Set
Main Parameters & characteristic:
This machine is designed for customers with small filling volumn. The structure is simple and easy to operate. It adopts the fixed normal pressure channel parameter, to control the filling volume by controlling the filling time. The adjustment is easy, no need to change the components when changing bottle types. It is suitable for non- viscous liquid filling within the pesticides, chemicals, daily chemicals and so on. It comply with GMP standard and production safety requirements, easy to disassemble, clean and maintain.
| Technical Parameters: | |
| Filling Heads | 4 heads (4/ 6/ 8/ 10/ 12/ 16 heads can be selected) |
| Applicable bottle diameter | 40mm ~100mm |
| Filling Range | 40ml ~ 1000ml (Depend on products) |
| Filling speed | ≤2500 bottles/hour (tests with 250ml water) |
| Filling Accuracy | ≤±1% |
| Working Voltage | 3 phase 4 wire, 250V/380V |
| Power | 1Kw |
| Air Pressure | 0.55-0.65Mpa |
| Air Consumption | 0.3~0.8 m3/min |
| Material | Stainless Steel 316 & 304 (upon request) |
| Dimension | 2000mm (L) x 800mm (W) x 2200mm (H) |
| Weight | 300 Kg |
| Country Origin | China |
Suitable bottle:
01. High Efficiency/ Low cost --- >
- High precision of packing measuring
- High qualified rate, high capacity, fast changing
- Less labor, simple operation, easy maintenance
02. Clean working --- >
- No drip, easy to clean, no dust or odor
- Excellent durability and sanitation compliance
