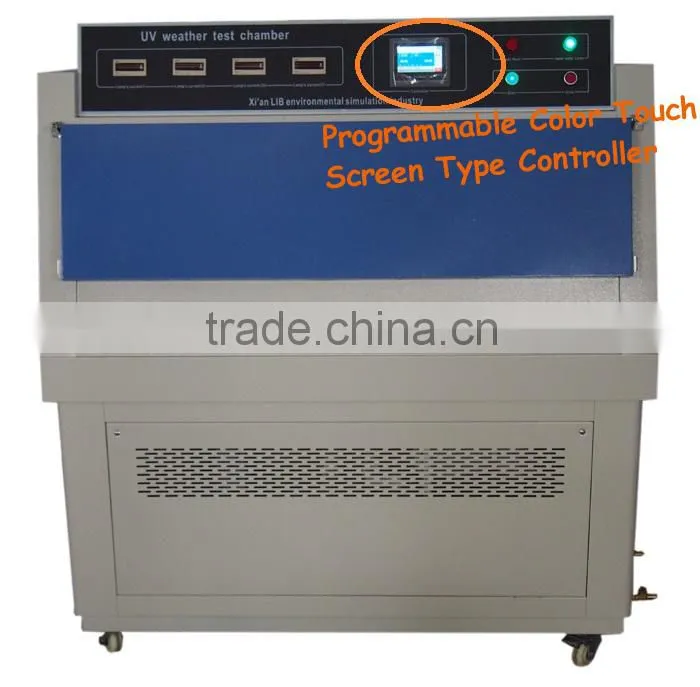

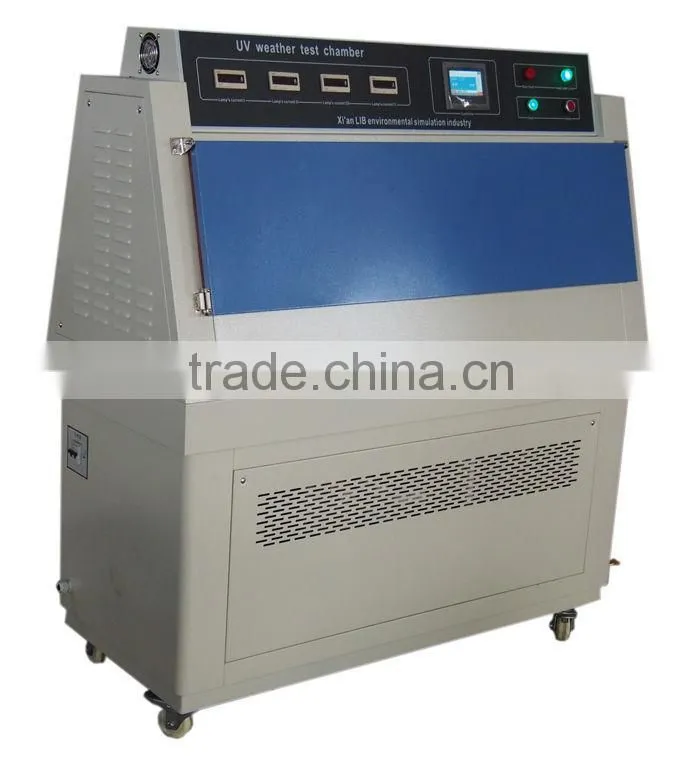

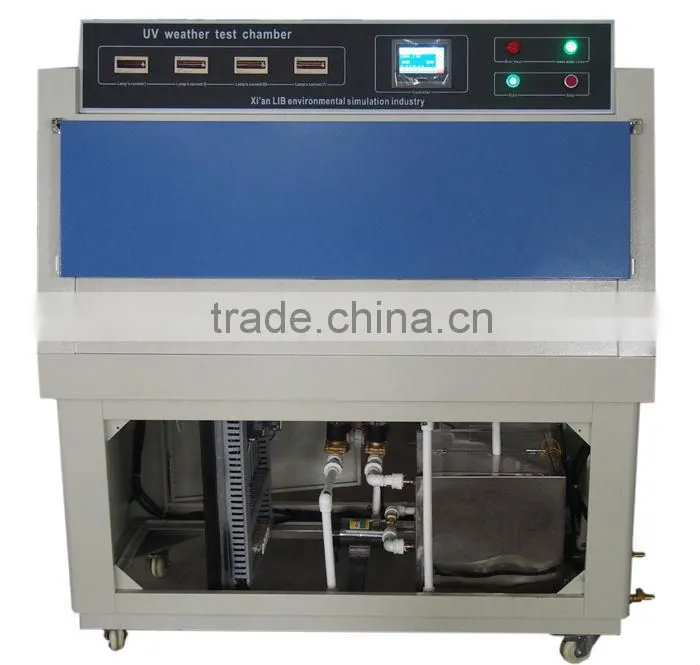

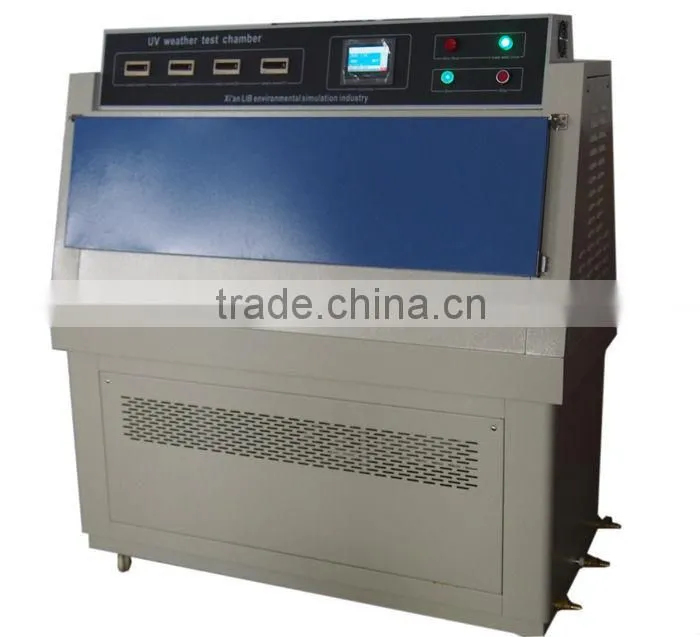

ASTM G53 Fluorescent UV Exposure Testing Chamber
ASTM G53 Fluorescent UV Exposure Testing
.
Main Technicial Parameters
| Model | UV-260 | UV-SI-260 |
| Internal dimensions (mm) | 450*1170*500 | 450*1170*500 |
| Overall dimensions (mm) | 580*1280*1350 | 580*1280*1350 |
| Temperature range | Ambient~90℃ | Ambient~90℃ |
| Humidity range | ≥95%R.H | ≥95%R.H |
| Water Spray | Spraying water | Spraying water |
| BPT | 30~70℃ | 30~70℃ |
| Irradiance range | N/A | 0.5 ~ 20 W/m2 |
| Distance between Specimen and lamp | 50mm | 50mm |
| Test specimen capacity |
Can hold 40 pieces of specimens (individual specimen size is 75mm * 150mm ) |
|
| UV wavelength | 320nm~400nm UV-A | 320nm~400nm UV-A |
| 280nm~320nm UV-B | 280nm~320nm UV-B | |
| Lamp power | 40W/unit , 8Pcs with unit chamber | |
| Power Supply | 380V 50HZ | 380V 50HZ |
| Power | 5000W | 5500W |
ASTM G53 non-metallic materials fluorescent UV light exposure
1. UVA-340, 0.89W/m2 at 340nm; 8h lighting, BPT 60+/-3 degree; 4h dark + high humidity, BPT 50+/-3 degree
2. UVB-313, 0.71W/m2 at 310nm; 4h lighting, BPT 60+/-3 degree; 4h dark + high humidity, BPT 50+/-3 degree
3. UVB-313, 0.49W/m2 at 310nm; 8h lighting, BPT 70+/-3 degree; 4h dark + high humidity, BPT 50+/-3 degree
4. UVA-340, 0.55W/m2 at 340nm; 8h lighting, BPT 70+/-3 degree; 4h dark + high humidity, BPT 50+/-3 degree
5. UVB-313, 0.62W/m2 at 310nm; 20h lighting, BPT 80+/-3 degree; 4h dark + high humidity, BPT 50+/-3 degree
6. UVB-340, 0.55W/m2 at 340nm; 8h lighting, BPT 60+/-3 degree; 4h dark + high humidity, BPT 50+/-3 degree
7. UVB-340, 1.55W/m2 at 340nm; 8h lighting, BPT 60+/-3 degree; 0.25h spraying water; 3.75h dark + high humidity, BPT 50+/-3 degree
UV Lamp
Chamber equipped with 8 pieces of UV lamp,which is air cooling;
1 of UV lamp power is 40W;
Lamp length: 1160mm;
UV lamp service life is 1200hours;
Over 1200 hours,must change new lamp;
Specimen Holders
Flat specimen holders, aluminum panels with rings,
Each specimen size is 75mm*150mm, can hold 40 pieces of specimens
Or, Customie special holder according to different specimens
ASTM G53 Fluorescent UV Exposure Testing
Video Of ASTM G53 Fluorescent UV Exposure Testing
(Please copy it to your browser to open it)
Export Standard Wooden Case
3 Years Warranty
All of our test chambers has three years warranty period. If the equipment is under the ordinary usage and arise any hardware problem which caused by product itself, rather than human error, we will offer the repair to you.
Firstly, we can provide the spare parts with you. And also provide the solution about the trouble of the products.
Secondly,Please send back the apparatus, which will be repaired by our company.
Lastly, we would like to appoint our technical engineer to your company to repair the apparatus.
