Type Other, Cleaning & Filling Teeth Equipments
Brand Name hongrui
Model Number HR-05
Place of Origin Shandong, China

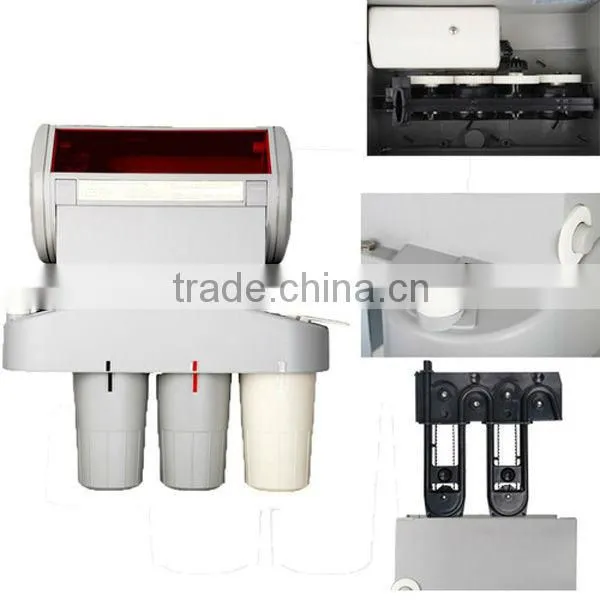

Automatic wireless digital portable  dental X-Ray Film Processor

Automatic wireless digital portable dental X-Ray Film Processor

The oral automatic X-ray film bath equipment is a total automatic and wall mounted type. The
film is bathed automatically through three step: Developing, fixing and bathing. The time
developing films needed can be selected in the designing range. During the bathing process,
delivery mechanism adopts anti-flaming ABS engineering materials. It has easy cleanliness and
maintenance, stable running, small volume, operators do not touch the developers and fixers
directly, convenient and safe operation
Automatic wireless digital portable dental X-Ray Film ProcessorAutomatic wireless digital portable dental X-Ray Film Processor
Feature:

New type with heating developer and fixer function
1.Small volume, open-room operation, free adjustment of film developing speed, sealed and environmentally friendly,

2.This machine could automatically complete film development and fixation rinse. Therefore, the problems of environmental pollution and body injury to operating staff
caused by manual operation of injection and darkroom have been totally resolved

3.Multi-film developing disposal may be completed when the developer and fixer is at 18-25 centigrade.

4.One piece of film enters per 30 seconds for multi-fill developing disposal, and the development may last 2-8 minutes. It is adjusted in accordance with the exposure conditions of x-ray machine.

5.Multiple films of 2x3, 3x4, and 2.7x5.4 cm are applicable for  the treatment of development.

6.Regular maintenance is convenient. No extra tool is needed to replace chemical solutions or wash relative parts.
Automatic wireless digital portable dental X-Ray Film Processor

Technical date
1.Surroundings temperature: 18°C-30°C;
2.Relative humidity:≤70%;
3.Atmospheric pressure: 700hPa-1060hPa;
4.Voltage of electrical source: 110V/220V± 10%
5.Frequency of electrical source: 50/60Hz± 1Hz.
6.Input Power: <12w
7.Film Run Through Time: 2-8min
8.Weight of Unit: 6.0kg,
9.Size: 42x19x45cm


Packing list:
Main unit*1
Liquid cup*3
Black box*1
Wall-hanging board
Power cord*1
Manual*1
Automatic wireless digital portable dental X-Ray Film Processor

Notice:Performance
(1). Processing time of film
The time which develops films needed is 2min-8min, and can be accommodated continuously. The error is within± 10%.
(2). Light leaking
During the bathing process, light leaking is not permitted.
(3)The stability of film delivery
The delivery mechanism of film should not lacerate or lock films.
(4)The timing panel of transit film
The timing panel of transit film adopts the number 1-12 represents month, each scale represents 10 days
