Specifications
connector type :FC,SC,LC,MU,MT-RJ etc;

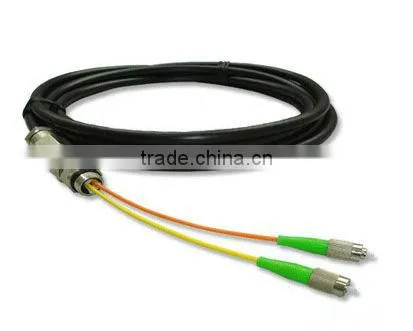

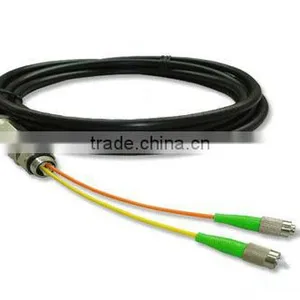

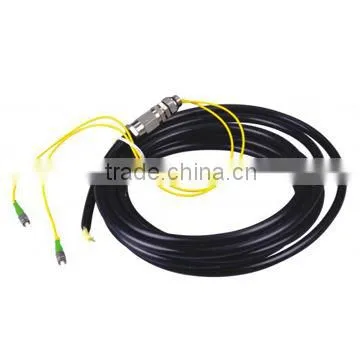

Waterproof pigtail
1,Summary
Waterproof pigtail ,is processing of optical fiber connector connecting with the optical receiver, optical workstation
and other optical devices on one end, the other end is used for the splice with optical fiber line.widely used in radio
and television. It feature strong tensile resistance, waterproof etc..
2,Application
1)meet with ANSI,Bellcore,TIA/EIA,IEC etc international standards ,also accord with the industrial standards of Telecom
in China
2)Realized the active link of optic fiber transmission,and the multi core in a sheath, which is convenient for unified wiring
management.
3)low insertion loss and high return loss
4)Excellent repeatability and interchangeabilit
3,Feature
1)outdoor use, waterproof, anti-corrosion
2)Containing metal reinforcement wire, good mechanical performance, strong tensile ability
3)low insertion loss and high return loss
4) can select a single mode or multimode ,2, 4, 6, 8, 12 cores optional
4,Technical data
1)insertion loss:<=0.2db
2)return loss: >=50db(upc type),>=60db(apc type)
3)work temperature: -40°C~+80°C
4)repeatability:
5)interchangeability
6)plug times
7)tensile strength
5,Ordering information:
product name: fiber optic patchcord/pigtail
connector type : the frist interface: FC,SC,LC,MU,MT-RJ etc; the other interface: FC,SC,LC,MU,MT-RJ etc.
interface type: the frist one: UPC,APC;the other one: UPC,APC.
Transmission mode: SM,MM.
fiber cores: single ,dual
