Help Center1310nm/1550nm FP LC-TOSA 1.25G
Related Products
Specifications
1310nm/1550nm FP LC-TOSA 1.25GOptical output power:0.3-3mW
With excellent quality and competitive price
RoHS compliant

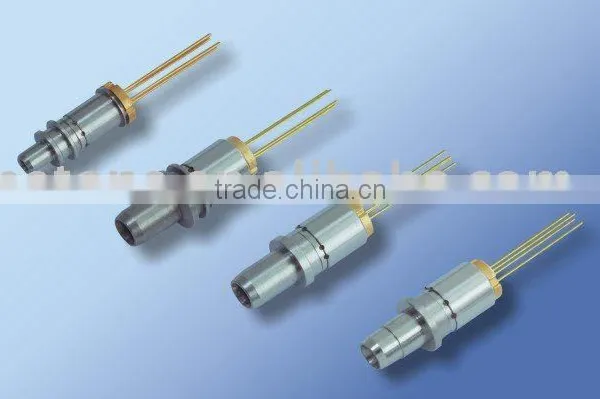

1310nm/1550nm FP LC-TOSA 1.25G
1310nm/1550nm LC FP LC-TOSA
1.25G/2.5G
Uncooled FP MQW LD, Built-in InGaAs PD Monitor
Wide Operating Temperature Range: -40-+85
Laser Welding Assembly Method
High Reliability and Long Operation Life
Low Threshold Current
Maximum Soldering Temperature /Time:240/10s
Uncooled Operation without TEC
Applications:
Optical Transmitter of Data Signal
Optical Transmitter of Analog Signal
Test Equipments
Absolute Maximum Rating:
Parameter |
Symbol |
Value of Parameter |
Unit |
LD forward current |
If(LD) |
Ith+40DC2 |
mA |
LD reverse voltage |
Vr(LD) |
2 |
V |
PD operation current |
If(PD) |
2 |
mA |
PD reverse voltage |
Vr(PD) |
15 |
V |
Operation temperature |
Topr |
-40+85 |
|
Storage temperature |
Tstg |
-40+85 |
|
Lead soldering temperature |
Tsld |
240/10 |
/s |
Specifications:
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Unit |
Test condition |
|
Optical output power |
01 |
P0 |
0.3 |
0.5 |
0.8 |
mW |
If=Ith+20mA |
02 |
0.8 |
1.2 |
1.8 |
||||
03 |
1.8 |
2.2 |
2.8 |
||||
Threshold current |
Ith |
5 |
|
12 |
mA |
CW |
|
Operation voltage |
V0 |
|
1.1 |
1.6 |
V |
If=lop |
|
Central wavelength |
λc |
1290 |
1310 |
1330 |
Nm |
If=Iop |
|
1530 |
1550 |
1570 |
|||||
Rise time/fall time1090 |
Tr/Tf |
|
|
0.4 |
ns |
If=I |
|
Monitor current |
Im |
|
0.3 |
|
mA |
If=Iop |
|
Spectral width |
λ |
|
|
1 |
nm |
CW ,Iop=If |
|
PD terminal capacitance |
CPD |
|
10 |
15 |
PF |
If=I |
|
Dark current |
I d |
|
|
0.1 |
μA |
VRD = 5V |
|
