Detailed Product Description
Furniture linear actuator: 1)High quality linear actuator 2)Low noise actuator 3)Dental chair used 4)Furniture , Medical

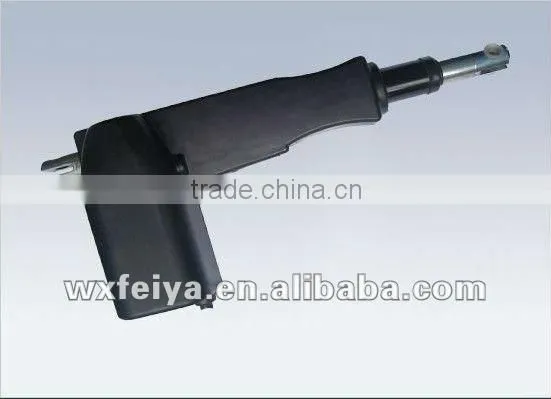

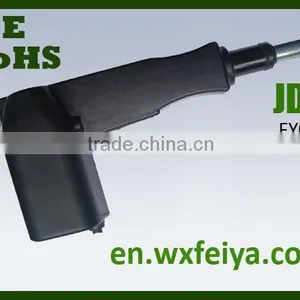

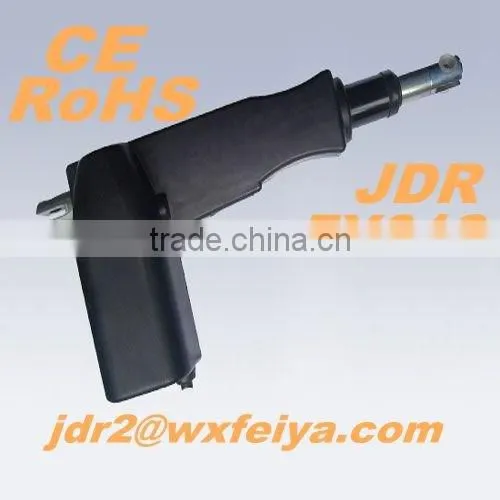

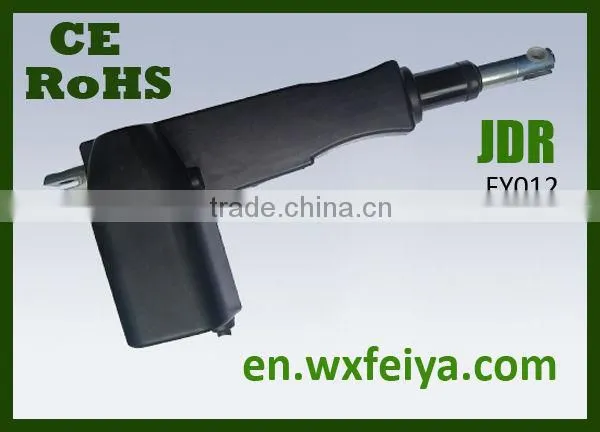

Furniture Mechanism Electric Linear Actuator
FY012 series of linear actuators are popularized in various application in furniture , nursing bed , traction bed by advantage of its multipurpose linear motion and comprehensive functions .

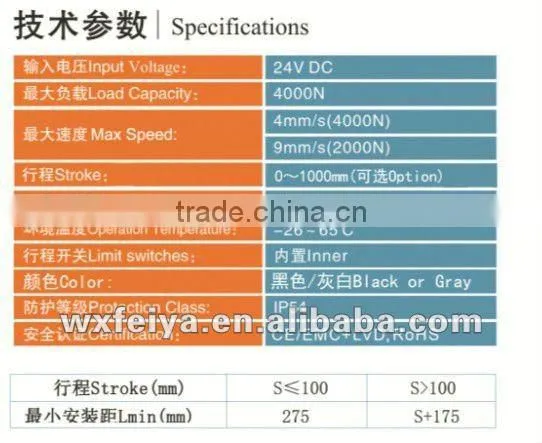

Detailed Product Description:
1) Input voltage: 12V/24VDC
2) Max. load capacity: 6000N/4000N
3) Speed: 3mm/s (6000N) 4mm/s (4000N)
4) Electric chromate steel piston rod eye with slot
5) High-strength plastic housing protects motor and gears
6) Elegant and compact design with small installation dimensions
7) Using frequency: S2-10min
8) Standard stroke: 50mm--500mm (Option)
9) Operation temperature: --26~65
10) Limit switches: Inner
11) Standard Protection grade: IP54
12) Certification:CE/EMC+LCD
Features :
1) Chrome Plated Piston Rod eye with slot or without
2) Scratch and wear-resistant powder
3) Stainless Steel Back Fixture
4) Strong wear and corrosion resistant Stainless Steel Inner Rod
5) High Strength Plastic Housing and Gears
6) Elegant and compact design with small installation size
pictures for the products
