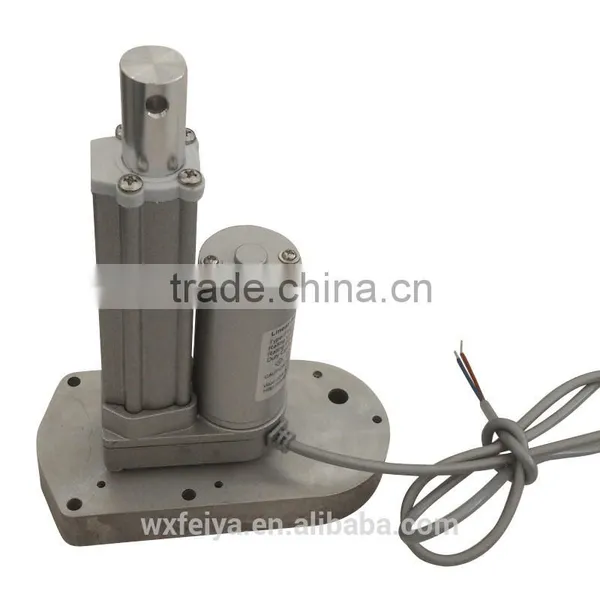

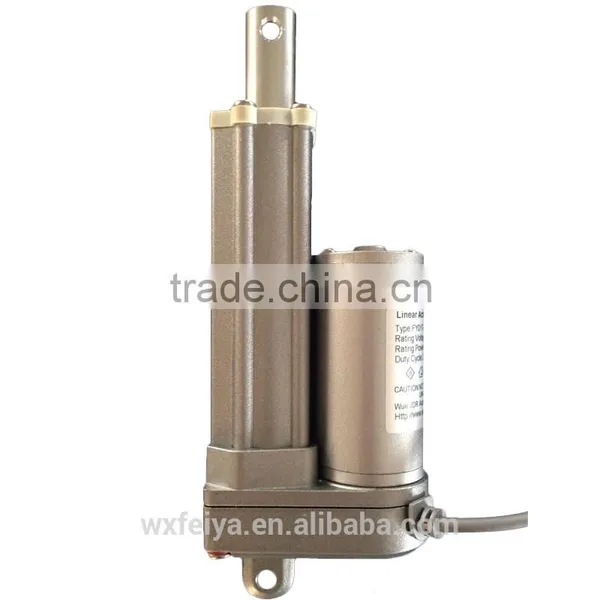

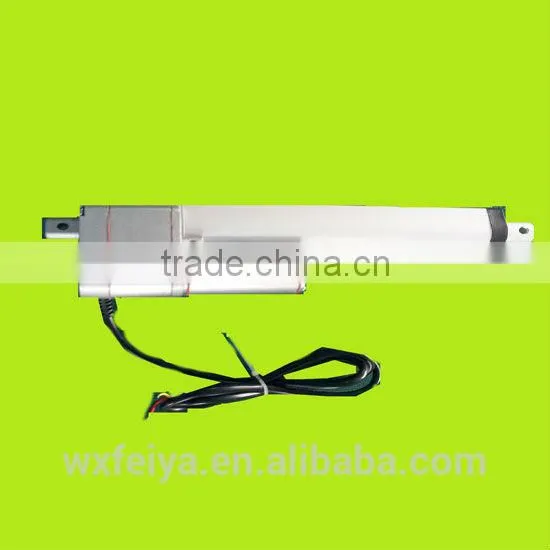

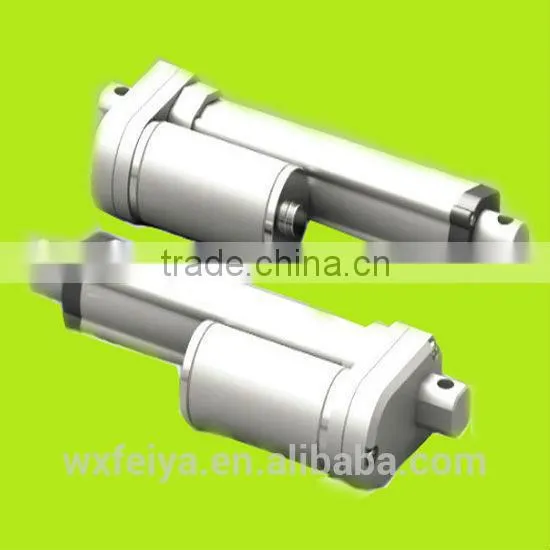

Help CenterHigh Quality 12v 24v 36v 48volt Motor FY017 for Window Open
Related Products
-
FY017 Max 1000mm Stroke for Car Window Open Linear ActuatorUS$ 28 - 38MOQ: 100 Units -
12/24V dc Motor ,tubular Mini Electric Linear ActuatorUS$ 1 - 50MOQ: 1 Piece
-
Mini Electric Actuator 12volt ElectricUS$ 2 - 50MOQ: 2 Pieces
-
150mm=6 Inches Stroke 12V DC 150KG Load 5.7mm/sec Speed Mini Electric Linear Actuator Linear Tubular Motor MotionUS$ 2 - 50MOQ: 2 Pieces
-
FY017 Electric Mini Linear Actuator 12v 24v 36v 48v 0 to 1000mm Stroke for Solar TrackerUS$ 22 - 42MOQ: 100 Units
*Designed for use with torque arm system
*Compact size
*Safe, low voltage operator, 24v or 12V
Specifications:
1) Voltage: 24VDC or 12VDC
2) Capacity: 250N /500N/750N
3) Max Speed: 15mm/s
4) Stroke: 50mm ~ 650mm
5)Type of duty: 10% or 2 minutes continuous use followed
by 18 minutes not in use
6) Protection class: IP65
7) Built-in limit switches, not adjustable after leave factory
8) Certification: CE, RoHS
Features :
1) Powder Coated Steel Outer Tube
2) Lubrication for life time
3) Aluminum extension and outer tubes
4) Enhanced Corrosion Resistance
5) Powder Coated Aluminum Alloy Housing
Operating principle
The operating principle of linear actuator is that after the motor slows down by the gear, leading to a pair of feed screw nut. It turns the rotary movement of the motor to the linear reciprocating movement. The use of motor positive & negative finishes linear actuator’s movement. For example, through all kinds of leverage, the joystick or connecting rod can complete the complex movement such as rotation and moving. By changing the lever arm length, can increase the stroke of linear actuator.
Installation note
(1) Check whether the electrical wiring is according with the requirements of the electrical principle and the power supply voltage is correct. The voltage is showed on the label of control box.
(2) Check whether the both installation ends of linear actuator is vertical, whether the fulcrum is packed well.
(3) When the power is connected, check whether the linear actuator travel agency is working properly with handset.
Notice for ordering
(1) Users reference series product specifications and installation dimension which our factory provides, and choose appropriate linear actuator, then put forward the linear actuator model, speed, push power, stroke, and minimum installation distance. If users have special requirements in the use of environment and technical data, our factory can also design for you, and you must show the specific requirements when place an order.
(2) If users need linear actuator accessories, such as control box, adapter and handset, our factory can supply a complete set, it also can be supplied alone.
(3) From the date of delivery within a year, the user in normal conditions, with the linear actuator quality issues caused by mechanical failure or damage, our factory responsible for maintenance.
(4) Welcome new and old customers place orders
Name:Claudia Wang
Telephone:0086-18651580126
Email: Jdr2 at wxfeiya dot com
Skype: Claudia Wang11
