Help Center65MPa Yield Strength Tabbing Wire for Machine Automatic Soldering Solar Cell
Related Products
-
2014 Hot Selling Solar Raw Material PV Ribbon Bus Bar for Solar Cell SolderingUS$ 16.5 - 21MOQ: 1 Kilogram -
Solar Material Sn&Pb Coated PV Ribbon for Solar Cell/ Solar PanelUS$ 16.5 - 21MOQ: 1 Kilogram
-
Low Yield Strength Solar Cell Soldering Sn60Pb40 PV RibbonUS$ 16.5 - 21MOQ: 5 Kilograms
-
Hot Selling Lead&lead Free Solar PV Ribbon/Bus Bar for Solar Cell Soldring With Cheap Price Made in ChinaUS$ 16.5 - 21MOQ: 1 Kilogram
-
Raw Material Solar PV Ribbon Made in China for Solar PanelUS$ 16.5 - 21MOQ: 1 Kilogram
Specifications
1.Raw material TU1 Cu purity >99.95%2TUV ISO9001
3.Rich stock
4.Low Yield strength
1,Elongation: E-Soft≥20% U-Soft≥15%
2,Tensile strength:≥170MPa
3,Side camber: L≤7mm/1000mm
4,Soldering tin melting point: 180−230°c
Electrical Resistivity of Copper:
TU1≤0.0618 Ω • m m2/m; T2≤0.01724 Ω•m m2/m
Core Copper of TU1 Off-Cu :
1,Copper Purity 9≥9.97%, Oxygen≤10ppm
2,Resistivity:ρ20≤0.017241Ω • m m2/m
Electrical Resistivity of Ribbon:
(2.1−2.5)X10-2 • mm2/m
Composition of Plated Material:
1) Lead series products:
A,Sn 60%, Pb 40%
B,Sn 60%, Bi40%
C.Sn 50%, Bi50%
D,Sn 62%, Pb 36%, Ag 2%
E,Sn 50%, Bi48%, Ag 2%
F.Sn 60%, Bi38%, Ag 2%
2) Lead-free series products:
A.Sn 96.5%, Ag 3.5%(Bi)
B.Sn 97%, Ag 3% and so on

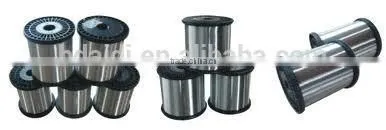

1. 4.5kg per spool with vaccum package. 4 spools a carton box with shockproof and waterproof for transportation
2. Cutting packing
OEM service/Design service/ buyer label offer
Baoding Edel Photovoltaic Technology Co.,Ltd is a high-tech enterprise which specializes in PV Ribbon R&D, production and sales. The main products are Tabbing Ribbon, busbar, Aluminium paste, junction box.
What is the popular dimension?
Thickness and width for popular items: 0.20X1.5/ 0.20X1.6/ 0.20X1.8/ 0.18X2.0/ 0.20X5.0/ 0.35X5.0/
0.35X6.0mm
