EverExceed safe and reliable UPS power products:
online / off-line UPS, high frequency online UPS, low frequency online UPS, modular online UPS, etc. We also offer customized services to meet various customers’ need.
Why choose us?
1) Nearly 30 years leading manufacturer;
2) Worldwide brand registered in more than 70 countries;
3) Comprehensive certificates approval: TUV / VDE / CE / ISO / IEC / DEKRA / ROHS
4) Strict management system and quality control, 100% inspection
5) A professional experienced team to provide you high-quality service.

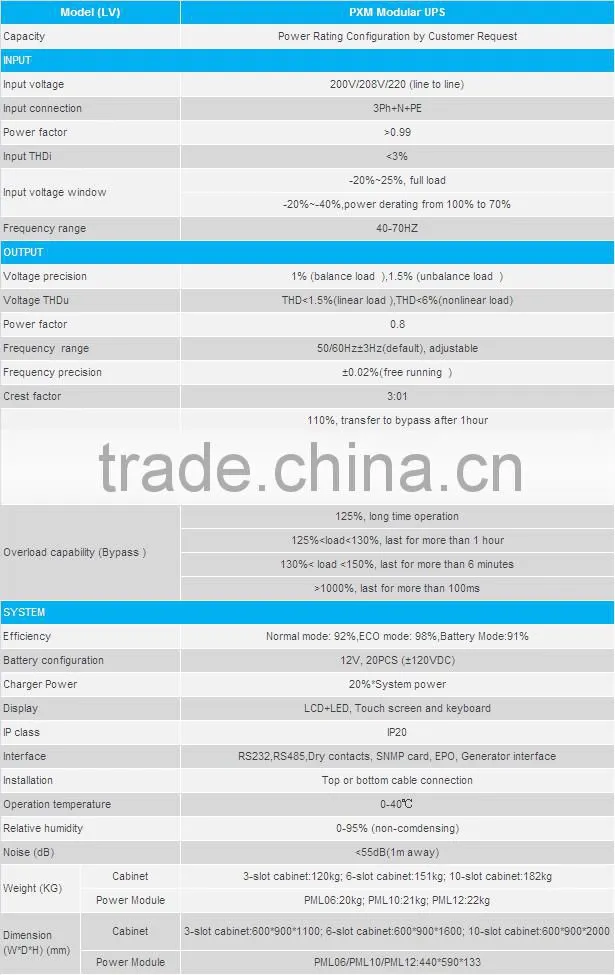

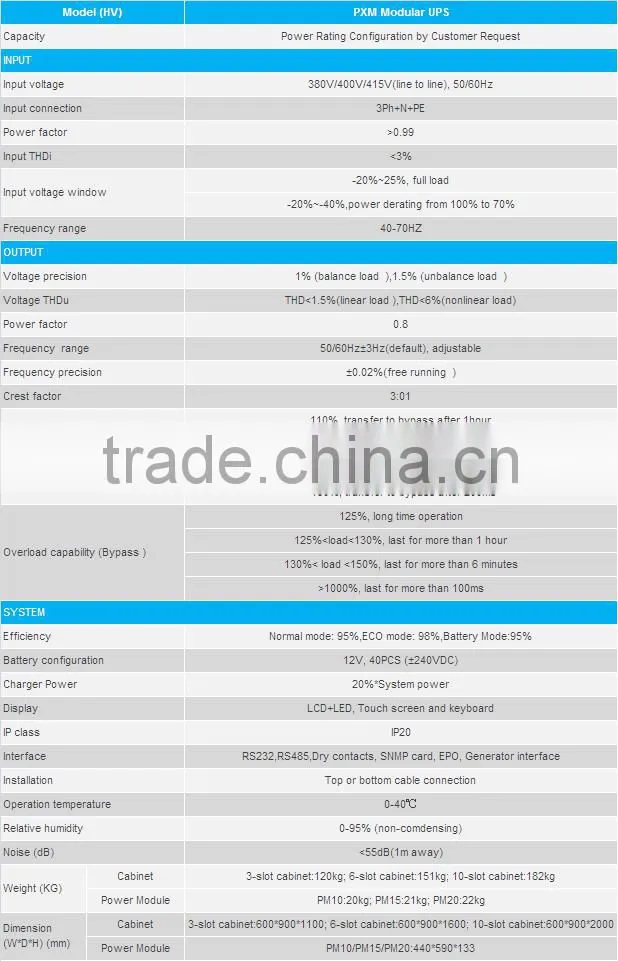

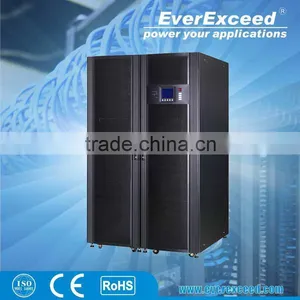

EverExceed Power PXM Series UPS
(HV: 10-200KVA); (LV: 6-120KVA)
3:3 phase modular UPS
Power PXM series UPS is a modular UPS for sensitive equipments. A single cabinet power rating covers from 10KVA to 200KVA which delivers the best combination of reliability, hot-swappable and flexibil-ity. With the advanced IGBT three-level technology and DSP control, PXM series UPS achieves a high input power factor, low THDi and high system efficien-cy, which makes it a great choice for data centers, computer system and critical equipments.
- Modular design ensures high level reliability and flexible options for expansion, such as N+1 or N+X.
- Strong load adaptability for linear and nonlinear load.
- Efficiency up to 95%,High input power factor(>0.99),low input THDi(<3%).
- Double DSP controller for individual power module, avoid single point failure risk.
- Digital control for the whole parts including rectifier, inverter, charger and discharger.
- IGBT modules rather than discrete components are applied in the power module, system reliability and manufacturing consistency are much improved.
- Totally front access, top and bottom cable connection.
- Large touch screen LCD with plenty of information.
- Independent charger for batteries, intelligent battery management system.
- Digital paralleling technology, very low circle current between modules.
- Intelligent fan control system, incredible low noise system design.
- Inbuilt switch for cabinet input, output and maintenance connection.
- Friendly generator interface.
- Cold start function, easy maintenance.
- All PCB with conformal coating.
- Modular, high power density design, save valuable space for customer.
- Critical components adopt the well-known international corporation, high margin design.
- ISP (Internet Service Provider)
- IDC (Internet Data Center)
- Computer Room, Service Center
- Precision Instruments
- Intelligent Equipment
EverExceed Group was established in 1980s and has its headquarter in Shenzhen, China, and subsidiaries in Singapore, UK and operations in six continents. We are manufacturing and supplying worldwide reliable power solutions with continuous innovative technologies, cost-effectiveness and good service, including industrial batteries (lead acid batteries, NiCad batteries, Lithium-ion batteries), solar power systems, UPS systems and DC power systems.
EverExceed attained the certificates of ISO9001 & ISO14001, and our products are accredited with TUV / VDE/ CE/ IEC/ UL/ RoHS/ DEKRA. Our advanced technology, professional technique, automatic equipment, experienced staff and strict operation system assure high level product quality. By now, reliable products with our brand “EverExceed” have been exported to more than 60 countries all over the world.
Warmly and sincerely welcome you to join us, and become a distributor and a partner in the future.
For more information, please visit our website:.
Q:How does the on-line UPS normal work principle?
A: The input converter and output inverter shall operate in an on-line manner to continuously regulate power to the critical load. The input and output converters shall be capable of full battery recharge while simultaneously providing regulated power to the load for all line and load conditions within the range of the UPS specifications.
Q:What’s the meaning of UPS’s battery mode?
A:Upon failure of the AC input source, the critical load shall continue being supplied by the output inverter, which shall derive its power from the battery system. There shall be no interruption in power to the critical load during both transfers to battery operation and retransfers from battery to normal operation.
Q :What’s the meaning of UPS’s bypass mode?
A:The static bypass shall be used to provide transfer of critical load from the Inverter output to the bypass source. This transfer, along with its retransfer, shall take place with no power interruption to the critical load. In the event of an emergency, this transfer shall be an automatic function.
Q: What’s the meaning of UPS’s THDi?
A: The input current THDI(Total Harmonic Distortion) shall be held to 5% or less at full system, while providing conditioned power to the critical load bus, and charging the batteries under steady-state operating conditions. This shall be true while supporting loads of both a linear or non-linear type. This shall be accomplished with no additional filters, magnetic devices, or other components.
Q:What’s the meaning of UPS’s overload capacity?
A:Steady-state overload conditions, of up to more than 100% of system capacity, shall be sustained by the inverter for several seconds in normal and battery operation. Should overloads persist past the outlined time limitation the critical load will be switched to the automatic static bypass output of the UPS.
