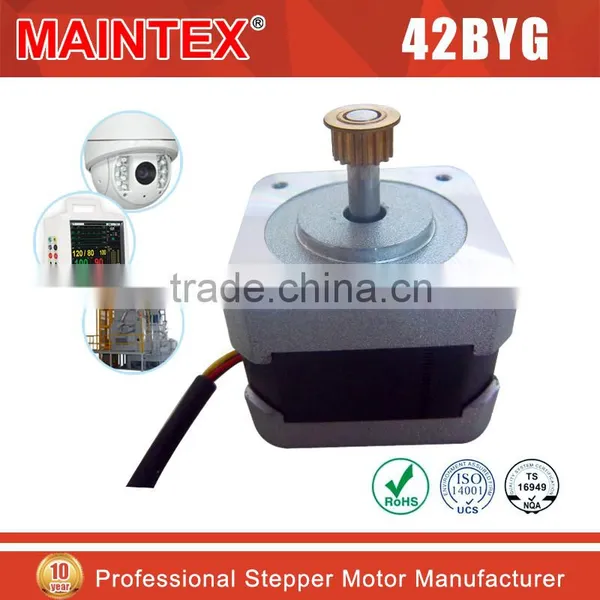

42BYGH Stepping Motor
1. Description of 42BYGH Stepping Motor
- NEMA 17 Series Stepper Motor
- 42mm diameter
- Step angle1.8 degree
- Phase current :1.7A
- 2 phase, 4 lead wires
2. Parameter of 42BYGH Stepping Motor
| Items | Spec. |
| Step Angle | 1.8 ° |
| Step Angle Accuracy | ±5% |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80°C Max |
| Ambient Temperature | -20°C~+50°C |
| Insulation Resistance | 100MΩ Min., 500VDC |
| Dielectric Strength | 500VAC for one minute |
| Shaft Radial Play | 0.02Max (450g-load) |
| Shaft Axial Play | 0.08Max (450g-load) |

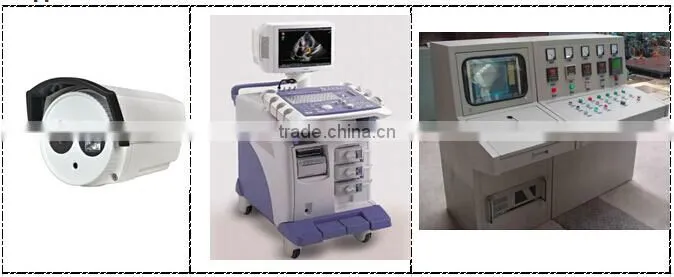

3. Applications of 42BYGH Stepping Motor
4. Our Factory
52 Assembly Lines
100% inspection
Careful Package
Imported Machines
5. Our Company------Maintex Pinpoint Technique Co., Ltd.
Shenzhen Maintex& Tronkon Technology Co., Ltd. Located at Maintex Industrial Park, No.8 of Kangming Road, Pingdi Street, Longgang District, Shenzhen City, China.
Covering a area of 28000 square meters, we have fixed assets of 100 million RMB, and existing staff more than 1500, including more than 80 senior technicians. We own kinds of high precise auto assembly equipment and more than 30 assembly lines with the yielld of 4 billion pcs motor per year.
In 2014 , we acquired and emerged the Japanese FUJI MICRO MOTOR(FM), this acquisition gives us a leadership position in micro motor market , and that means we can offer personalized micro motor solution to clients. Maintex strives to making outstanding , multiple, and different products and strives to be the leading enterprise of the motor industrial.
- 24 hours online service
- 11 years experience of motor production
- Professional engineers team from Japanese FUJI MOTOR & MAINTEX, will persistently provide customers most professional technology, high quality and high performance solution.
7.Contact Details
