Home > Electrical & Electronics > Electric Motor > Stepper Motor > 35BYG 4 Pin 2phase Hybrid Step Motor for Monitoring Equipment

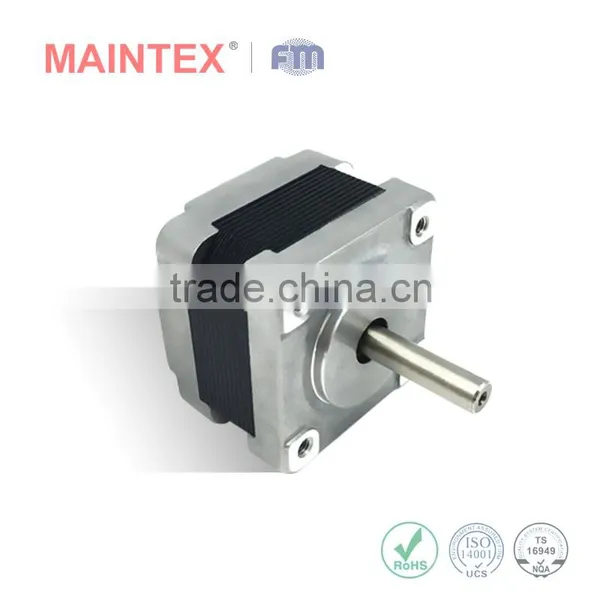

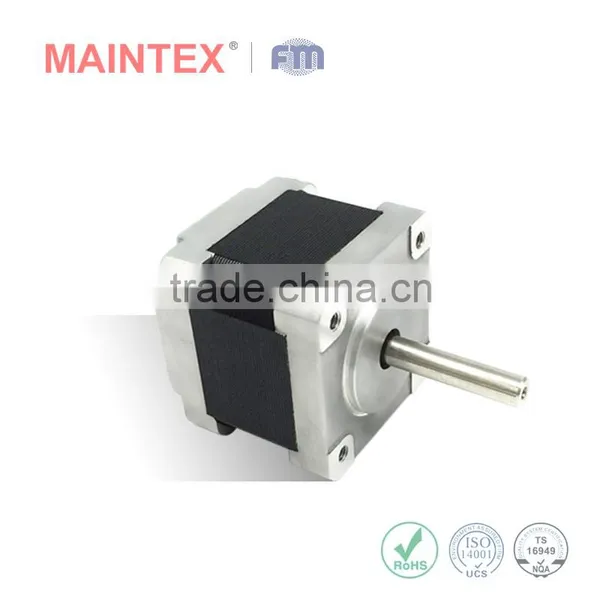

35BYG 4 Pin 2phase Hybrid Step Motor for Monitoring Equipment
US$ 4.6 - 5.5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
MAINTEX
Model Number:
35BYGS24-001
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
35byg Hybrid Motor Nema 14 for Laser LampUS$ 4.6 - 5.5MOQ: 1 Piece -
Low Price Nema 14 Step Motor 35byg 7.5 Voltage 1.8 DegreeUS$ 4.6 - 5.5MOQ: 1 Piece
-
Customized Nema 14 Stepper Motor 35bygUS$ 4.6 - 5.5MOQ: 1 Piece
-
Nema 23 Stepper Motor , CNC Machine Stepper Motor , 57byg Hybrid Stepper MotorUS$ 5.2 - 10MOQ: 1 Piece
-
Nema 14 Step Motor 35BYG Stepping MotorUS$ 4.6 - 5.5MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
MAINTEX
Model Number
35BYGS24-001
Phase
2
Type
Hybrid
Certification
CCC, CE, ISO, ROHS, UL, Other, CCC, CE, ISO, ROHS, UL, QC080000
Step Angle(degrees)
1.8 Degree
Holding Torque
-, 75.5mN.m
Current / Phase
0.4A
35BYG 4 pin 2phase hybrid step motor for monitoring equipment
Product Description
Main Performance of 35BYG 4 pin 2phase hybrid step motor for monitoring equipment
| Step Angle Accuracy | ±5%(full speed no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80℃(rated current,2 phase on) |
| Ambient Temperature | -20~+50 ℃ |
| Insulation Resistance | 100MΩ min, 500VDC |
| Dielectric Strength | 500VDC/1min |
| Shaft Radial Clearance | 0.02mm max, 450g load |
| Shaft Axial Clearance | 0.08mm max, 450g load |
| Max Radial force | 28N(20mm from flange) |
| Max Axial force | 10N |
| Rotation | CCW |
| Insulation Grade | B(130°) |

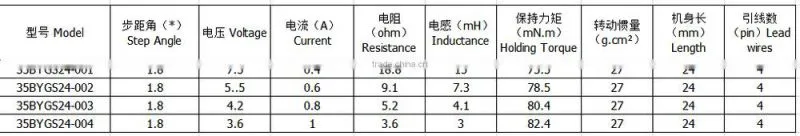

Parameter of 35BYG 4 pin 2phase hybrid step motor for monitoring equipment
Parameter can be customized according to your actual demand, for detailed information please contact me or leave a message.

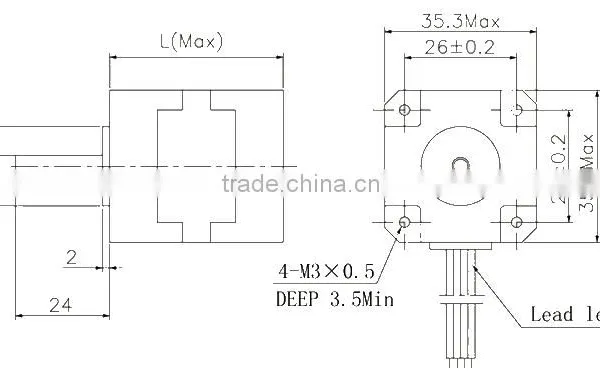

Drawing of 35BYG 4 pin 2phase hybrid step motor for monitoring equipment
Application of 35BYG 4 pin 2phase hybrid step motor for monitoring equipment
