Specifications
automatic plastic film continuous sealing machine1. highly automatic
2. easy to operate
Plastic Film Continuous Sealing Machine
Description:
This machine is used to seal small bag and it applys electronic constant temperature controlling system and stepless speed regulation. It can seal plastic films of various materials. This machine adopts solid-ink coding device, which can print the desired date simultaneously with sealing. With the characters clear and conspicuous, the colors are selectable, not easy to erase and changeless. Coding is instant printing and instant dry. It is convenient to change date letters.

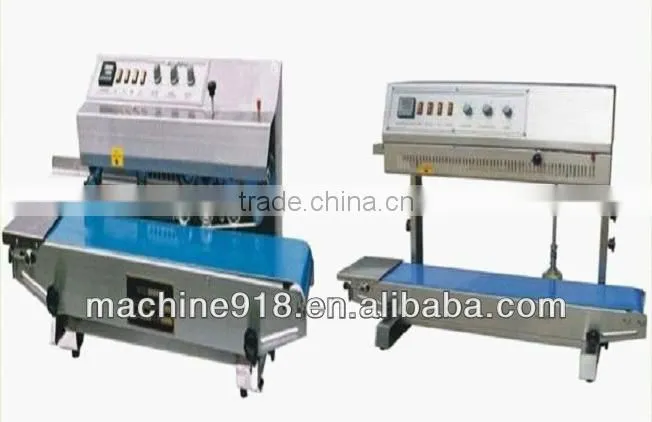

FKJ series sealing machine has three types of horizontal model (FKJ-1), vertical model (FKJ-2), and console model(FKJ-3).
Technical parameter:
|
FKJ-1 |
FKJ-2 |
FKJ-3 |
Voltage (V/Hz) |
AC 220/50 110/60 |
||
Motor power (W) |
500 |
||
galvanothermypower(W) |
300×2 |
||
Sealing speed(m/min) |
0-12 (0-16) |
||
Sealing width(mm) |
8 10 |
||
Temperature range(°C) |
0-300 |
||
Coding type |
Steel roller coding(can choose) |
||
Distance from sealing center to conveyor(mm) |
10-40 |
150-270 |
10-40 |
Conveyor size (L×W)(mm) |
840×153 |
||
Maximum conveyor loading for single bag(kg) |
≤1 |
||
Overall conveyor loading(kg) |
≤3 |
||
Dimension (L×W×H)(mm) |
840×380×320 |
840×380×550 |
840×550×800 |
Net weight (kg) |
32 |
37 |
40 |
More pictures:
Zhengzhou Rephale Plastic Film Continuous Sealing Machine
