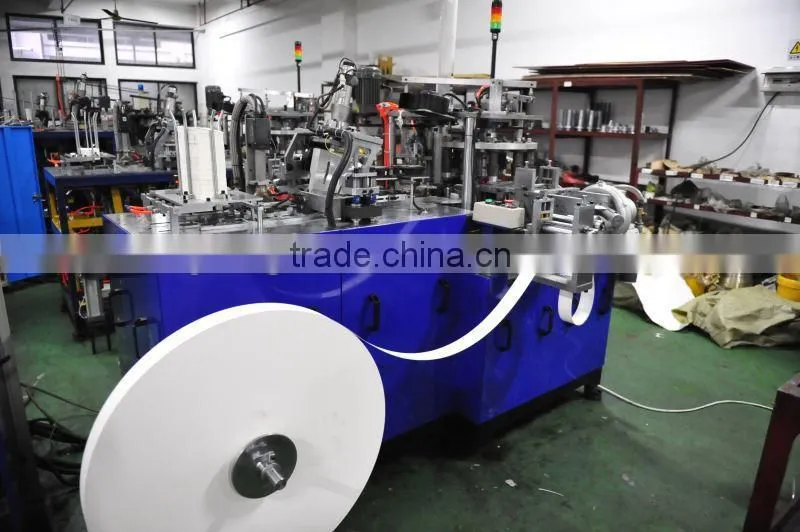

2015 high speed paper cup machine price
1. description:
1). High efficiency. The production rate of automatic high-speed intelligent paper cup forming machine can reach at 80pcs/min
2).Intelligent control. The control panel adopts the computer program control system (PLC) and realizes intelligent control, high production and cost-saving
3).Stable performance: This set changes the simple mechanical movement into photo electricity and electromechanical integration, which makes all manipulators run reliably and precisely
4).Considerate design. In order to care worker, this set adopts kind panel, malfunction alarm set, automatic stop and other safe equipment. high speed paper cup machinery,paper cup machinery,paper cup forming machine
Model |
GR-A |
production capacity |
80-90pcs/min |
Paper thickness |
180-320gsm |
Paper cup specification |
(A)70-100mm;(B)50-135mm;(C)40-75mm;(D)5-12mm |
Air soure request(double PE) |
0.6-0.8Mpa |
Air consumption |
0.4m3/min |
Power source |
220V/380V,50HZ |
weight |
2500kg |
Can make cup's size |
4oz-20oz |
A). All electrical parts use famous brand, such as omron, Schneider,Switzerland Leister, Yaskawa etc With PLC control system .
B)Heating system to ensure adhesion of paper cups.
C) Inferior-quality paper Cup selected out by tube automatically.
D) Oil lubrication recycling system , environmental design.
E) Full transmission with gear & cam only , without any chains , keep the machine running more steadily .
F) With two top curling course ,and keep the cup top mouth nicer .
G) Photoelectric failure-detecting system is available , PLC control system for cup bottom paper feeding.
Package:
Advantage:
1.Photoelectric failure-detecting system is available , PLC control system for cup bottom paper feeding
2.Full transmission with gear & cam only , without any chains , keep the machine running more steadily
3.All electrical parts use famous brand, such as omron, Schneider,Switzerland Leister, Yaskawa etc With PLC control system.
4.With two top curling course ,and keep the cup top mouth nicer
5.Switzerland Hot air system Of "LEISTER"
6. inferior-quality paper Cup selected out by tube automatically.
7.Oil lubrication recycling system , environmental design.
