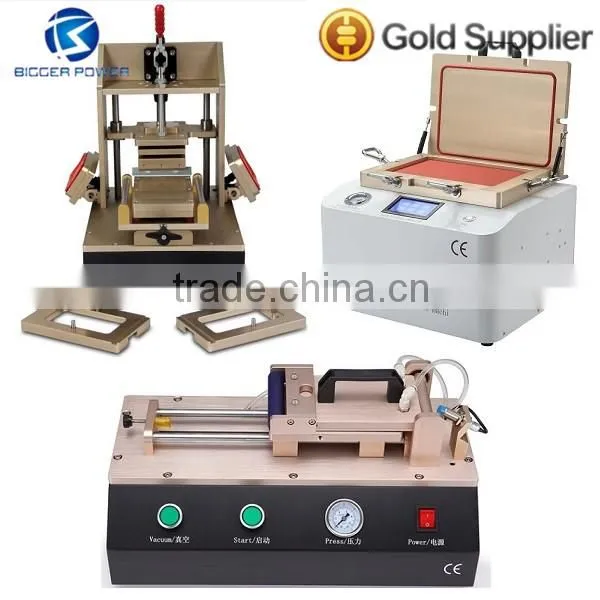

It is designed for small mobile phone repair shop three machines.These three machines are 2 in1 lcd lamination machine,5 in1 Frame Lamination Machine and film lamination machine.The three machine to complete the mobile phone lcd separator,remove glue, film laminating,lcd laminating,bubble remover and Frame Lamination.
How use it?
Operation Video: https://youtu.be/1WIt1ACBadQ

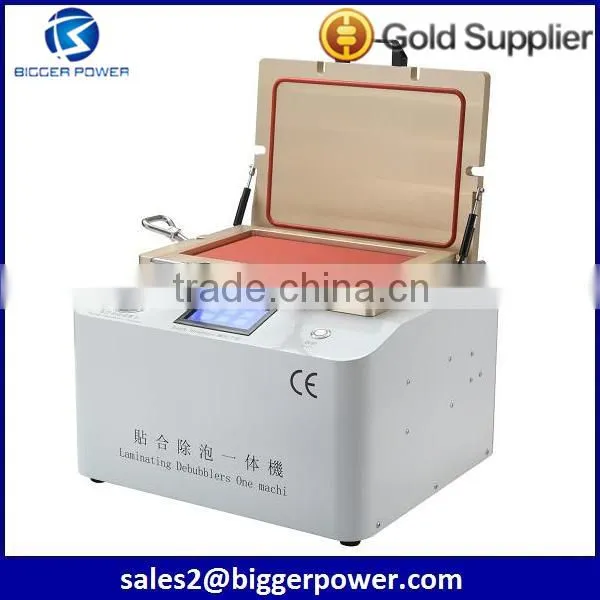

2 in 1 vaccum lcd lamination machine parameter:
| Name: | 2 in 1 vaccum lcd lamination machine |
| Voltage: | AC110V/220V |
| Power: | 500 W |
| Work Environment: | 20-25℃ |
| Use Size : | Less than 12 inch |
| Dimension: | 45*41*35CM |
| Weight: | 40KG |
| Delivery time: | 1-7 days |
| Material : | Aluminum |
| Interface : | English interface |
| Warranty: | 12 months |
2 in 1 vaccum lcd lamination machine Product advantage:
2. Do not need Air Compressor and Vacuum Pump.

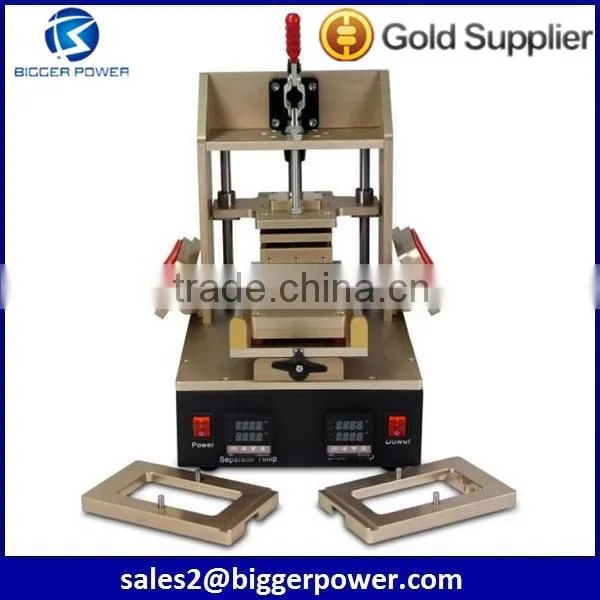

This a 5in1 frame machine,which consist of heated plate,a frame separator,vacuum manual separator,glue remover and frame press.right is the frame press switch,glue remover switch and thermostat,Left is the manual separetor switch and thermostat,The first one on the right is the vacuum switch.The second one on the right is the A frame switch.The left side is the a frame swith.The blade groove is used for putting the blade while operating glue removing. The three holes are used for fixing the blade.The installed upper moulds are iphone 4/5/6/6s.
| Function: | 5 in1 Frame Lamination Machine |
| Voltage: | AC 110V/220V |
| Power: | 600 W |
| Weight : | 21 KG |
| Warranty: | 12 Months |
| Material : | Metal |
| Product Size: | 33*38*42 CM |
| Delivery time: | 1-5 days |
5 in1 Frame Lamination Machine Product Feature:
1.Can use to separating LCD, refurbishing LCD,Vacuum pump buil-in, no need extra pump.
2.Can remove glue after separate LCD.
3.A frame separate machine specially for samsung, Can separate Middle bezel/frame specially for samsung.
4.One important function for Iphone4g/4s/5g/5s/5c/6/6plus: to install frame and no need extra fram install machine.
5. Vacuum pump built-insides, pre-heating plate.
6. 4pcs free frame laminating mold for iphone4/s, iphone5/c/s, iphone6/6+.
| Name: | Film lamination machine |
| Voltage: | AC110V-240V |
| Power: | 100 W |
| Use Size: | Less than 8 inch |
| Dimension: | 44*22*13CM |
| Weight: | 13KG |
| Delivery time: | 1-7 days |
| Material : | Aluminum |
| Interface : | English interface |
| Warranty: | 12 months |

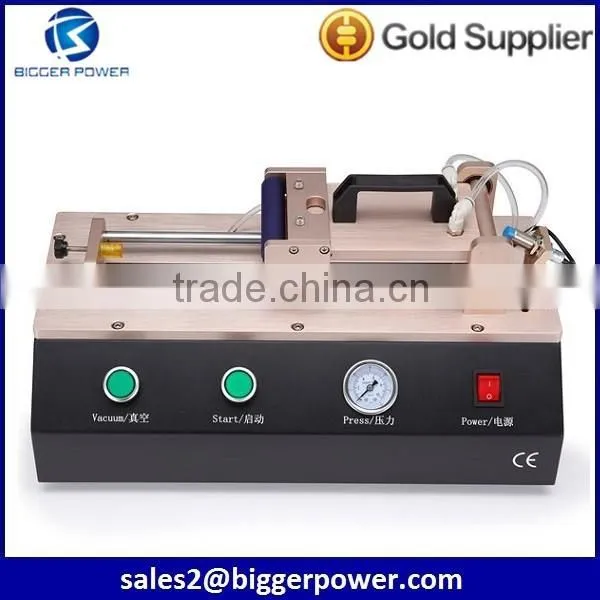

Auto Film lamination machine is a universal module, suitable for all size glass from all kinds mobile phone,With built-in vacuum.
Product advantage:
1.simple structure, convenient operation.
2.registration precision, product qualified rate 100%.
3.suitable for mobile phone screen protective film OCA polaroid, fast, registration precision.
4.don't need to mold.
Company Information:
ShenZhen Bigger Power Technology LTD,which is located in ShenZhen, a professional manufacturer engaged in manufacture the whole line mobile repair machine, include LCD separate machine, oca vacuum laminating Machine,bubble remove machine,Frame laminating machine,LCD flex cable laminating machine, nano watherproof coating machine, nano liquid and so on.
Our factory occupies a total area of 20,000 Square meters. With well-equipped testing facilities and strong technical force,We pay a lot attention on the item quality ,our machine use the high quality matereial,all with CE UL Rosh certificate, Make sure you get the safe machine.
We have exported our products to many countries and regions all over the world, especially the USA and European countries.
We supply the whole line mobile phone repair machine:
|
STEP 1: Lcd Separation
Separation is the first process in the process of maintenance screen,need to use the device is a separator, the following pictures, the machine will separate the broken glass cover. |
|
|
STEP 2: LCD Glue Remove
The screen will be remove the glue. |
|
|
STEP 3 : Clean OCA
The screen must be clean, cannot have any dust. |
|
|
STEP 4:OCA Film Lamination
Clean screen, OCA glue on the back cover, laminating process must be carried out in a clean environment, can't remain any air bubbles.
|
|
|
STEP 5:Vacuum OCA Lamination
Vacuum laminating process is the key in the process of the entire screen repair technology,LCD and glass laminating.
|
|
|
STEP 6: Air Bubble Remove
Put the lcd screen in air bubble removing machine, the principle is in a vacuum environment with high pressure to squeeze the bubble,complete the defoaming process.
|
|
|
STEP 7: Frame Lamination
This is the last process of maintenance, is mainly used for iphone lcd. |
|
Why choose us?
- High quality: We have over 4 years of experience in the field of manufacturing mobile repair machine,We have perfected the art to give you a top quality product.
- Competitive price: We offer factory direct sales so we can offer you the best possible price on the market.
- Deliver fast: We offer UPS/FedEx/TNT/Air Freight shipping method. all items in stock. We ship the machine Fast.
- Warranty: All our machine carry 1 year warranty. If any problem have we will ship you free parts for exchange.
- Professional customer service: We are here for all customer worldwide.We look forward to meeting all your needs.
Welcome to inquire our Mobile phone repair machine:
|
|
|
|
| Freeze LCD Separator Machine | 2 in1 LCD Lamination Machine | LCD Flex Cable Repair Machine | Nano Mobile Waterproof Machine |
