Flexible Graphite Sheet

Name: Flexible Graphite Sheet
Brand: AIDMER
SKU: 108159975

US$ 1 - 20 MOQ: 1000 Kilograms

Key Specifications

Place of Origin:

Jiangxi, China

Brand Name:

AIDMER

Model Number:

Aidmer76-005

Jiangxi Aidmer Seal And Packing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangxi, China

Brand Name AIDMER

Model Number Aidmer76-005

Type Flexible Sheet

C Content (%) 99%

Thickness 1.0~3.0mm

flexible graphite sheet bonded to a 0.1mm thick stainless steel core. Flexible graphite is a

purified natural graphite flake which has been expanded under heat and compressed into

continuous sheeting containing no fillers or binders.It is for high temperature, high pressure,

and corrosive gasket applications.

Recommended for gases, water, steam, hydrocarbons, oils and greases, alcohols, esters and

ketones, heat transfer oils, and many other applications. Exceptions are strong oxidizing

compounds such as concentrated nitric acid, highly concentrated sulfuric acid, chromium and

permanganate solutions, chloric acid, and molten alkaline or alkaline earth metals .

Length:1000mm;1500mm

Width:1000mm;1500mm

Thickness:1.0~6.0mm

Reinforced inserted material	Construction	ASTM F36A-66 Compressibility	ASTM F36A-66 Recovery	Stability under compressive stress (N/mm2)	Sealability (1.5mm)ml/hr Temperature
Reinforced inserted material	Construction	ASTM F36A-66 Compressibility	ASTM F36A-66 Recovery	Stability under compressive stress (N/mm2)	N2	Buming oil	In Oxidizing media	In Non Oxidizing media
Tanged carbon steel sheet (Thickness 0.2- 0.25)		30 - 35	15 -20	>= 48	30	< 0.5	-10 -450	-10 -550
AISI 304,316 Tanged (Thickness 0.1- 0.127)		30 - 40	15 -30	>= 48	60	< 0.5	-240 -450	-200-600
AISI 304,316 falt sheet sheet (Thickness 0.05- 0.7)		40 - 50	10 - 15	>= 45	35	< 0.5	-240 - 450	-200-600

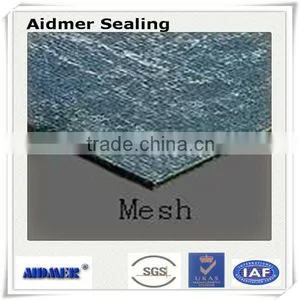

AISI 304,316 Mesh		30 - 35	15 - 20	>= 40	7000	< 0.5	-240 -450	-200-600
