Concentric Cable
ASTM 600/1000v | |||||||||||
Core |
AWG |
Structure Size (mm) |
Copper cable (kg/km) |
||||||||
Conductor |
Insulation |
Concentric conductor |
Outer sheath |
||||||||
Single wire |
XLPE |
Single wire |
UV-PVC |
||||||||
No. |
Dia. |
Thick |
No. |
Dia. |
Thick |
Dia. |
|||||
1 |
16 |
7 |
0.49 |
1.14 |
39 |
0.321 |
1.14 |
6.82 |
81.46 |
||
1 |
10 |
7 |
0.98 |
1.14 |
34 |
0.511 |
1.14 |
8.67 |
172.04 |
||
1 |
8 |
7 |
1.23 |
1.14 |
25 |
0.643 |
1.14 |
9.68 |
221.58 |
||
1 |
6 |
7 |
1.55 |
1.14 |
25 |
0.813 |
1.14 |
10.98 |
160.50 |
||
1 |
4 |
7 |
1.96 |
1.14 |
27 |
1.020 |
1.14 |
12.62 |
509.26 |
||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
||
IEC 60502-1 IEC 60228 600/1000v | |||||||||||
Size (mm2) |
Structure Size mm |
Copper cable (kg/km) |
|||||||||
Concuctor |
Insulation |
Concentric conductor |
Outer sheath |
||||||||
Single wire |
Dia. |
PVC |
Single wire |
UV-PVC |
|||||||
No. |
Dia. |
Thick |
No. |
Dia. |
Thick |
Dia. |
(kg/km) |
||||
10 |
7 |
1.35 |
4.05 |
1.55 |
20 |
0.85 |
1.4 |
11.79 |
301.55 |
||
16 |
7 |
1.7 |
5.1 |
1.55 |
32 |
0.85 |
1.4 |
12.84 |
431.7 |
||
25 |
7 |
2.14 |
6.42 |
1.6 |
29 |
1.13 |
1.5 |
15.02 |
647.46 |
||
|
|
|
|
|
|
|
|
|
|
||
16 |
7 |
1.7 |
5.1 |
1.55 |
26 |
1.13 |
1.4 |
13.42 |
244.16 |
||
25 |
7 |
2.14 |
6.42 |
1.6 |
29 |
1.13 |
1.5 |
15.02 |
307.3 |
||
35 |
19 |
1.53 |
7.65 |
1.65 |
27 |
1.35 |
1.6 |
16.99 |
390.15 |
||
|
|
|
|
|
|
|
|
|
|
||
Main Products

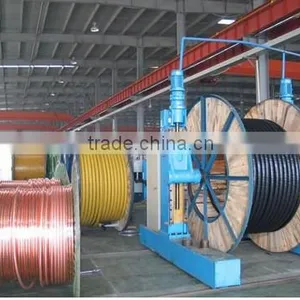

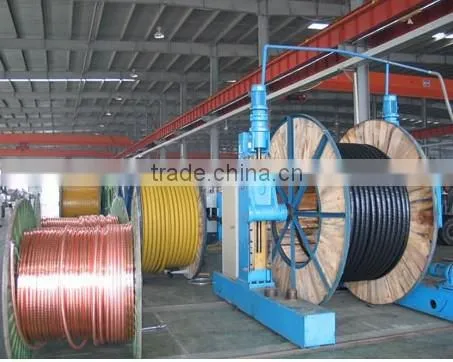

Factory
Package
Certificate
You may also interested in:
**Bare Conductor: AAC, AAAC, ACSR, ACSR/AW, ACAR, ACSS, ACSS/AW,
Aluminum Clad Steel Wire/Strand (ACS),
Hard Drawn Bare Copper Conductor (HDBC),
Copper Clad Steel Wire/Strand (CCS),
Copper Clad Aluminum Wire/Strand (CCA),
Galvanized Steel Wire/Strand (GSW), etc.
**Overhead Insulated Cable: Covered Line Single Core Cable and Aerial BundledCable (ABC).
ABC includes Duplex, Triplex, Quadruplexand multi-core Service Drop Cable… (600V-36kV)
**PVC or XLPE Insulated Armored Power Cable 1kV -36kV.
(Low smoke, halogenfree, fire resistant, water resistant, high temperature cable…)
**PVC Insulated Wire up to with 300/500V, 450/750V, 600/1000V.
(Building wire includes nylon jacket and flat flexible multi-core wires)
**Instrument Cable: Control Cable, Signal Cable, Telephone Cable, etc.
**Concentric Cable
**Welding Cable
**Rubber Cable
**Cable& Conductor Accessories
**Cable Making Machine and Materials
We can produce cables according to the standards of GB, IEC, ASTM, EN (BS, DIN, NF, etc.), AS/NZ , SANS, etc. And also can design and manufacture the cable as per customers’ special requirements by OEM supply.
JINYUAN—YOUR POWERFUL AND RELIABLE SOLUTION FOR WIRES AND CABLES.
