KST-05A 220V AC Modulating Type Electric Actuator
US$ 183.33 - 283.33
MOQ: 1 Set
Key Specifications
Get Latest Price
Material:
Alloy
Place of Origin:
Zhejiang, China
Model Number:
KST-05A
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
KST-A Regulating Electrical Actuator With CE CertificateUS$ 183.33 - 283.33MOQ: 1 Set -
KST-A Modulating Type Electric Actuator With LCD DisplayUS$ 183.33 - 283.33MOQ: 1 Set
-
KST-B On Off Type Electric Actuator From China SupplierUS$ 75 - 458.33MOQ: 1 Set
-
KST-B On-off Type Electric Actuator, Motorized Actuator, Rotary Electric ActuatorUS$ 75 - 458.33MOQ: 1 Set
-
KST-B On-off Electric Actuator For Ball Valve, Butterfly ValveUS$ 75 - 458.33MOQ: 1 Set
Material
Alloy
Place of Origin
Zhejiang, China
Model Number
KST-05A
Brand Name
KST
Specifications
Torque:7-2000 N. MVoltage: 24V DC, 110V AC, 220V AC, 380V AC
Type: On-off, Modulating, Passive Contact
KST-05A 220V AC Modulating Type Electric Actuator
Specifications
1). Model: KST-05,10,20,40,60,100,200
2). Torque Range: 7-2000Nm
3). Motion Range: 0-360°, 0-90°
4). Ambient Temp.: -30ºC~+60ºC
5). Working Pressure: 0-4.0Mpa (40Bar)
6). Open/Close Time: 7S-100S
7). Number Of Wires: 2-7 Wires
8). Actuator Body: Aluminium Alloy
9). Protection Class: IP68
10). Voltage: 24V DC, 110V AC, 220V AC, 380V AC
11). Type: On-off, Modulating (Regulating), Passive Contact
12). Available Valve Size: Ball Valve (DN15-DN200); Butterfly Valve (DN25-DN400)

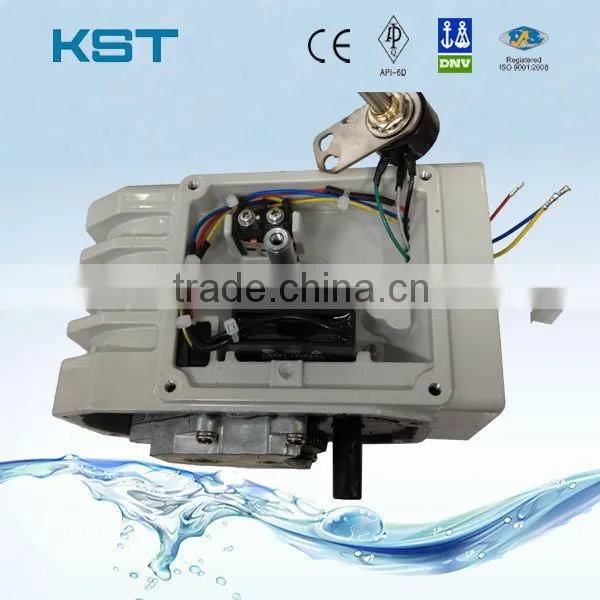

Products Show
